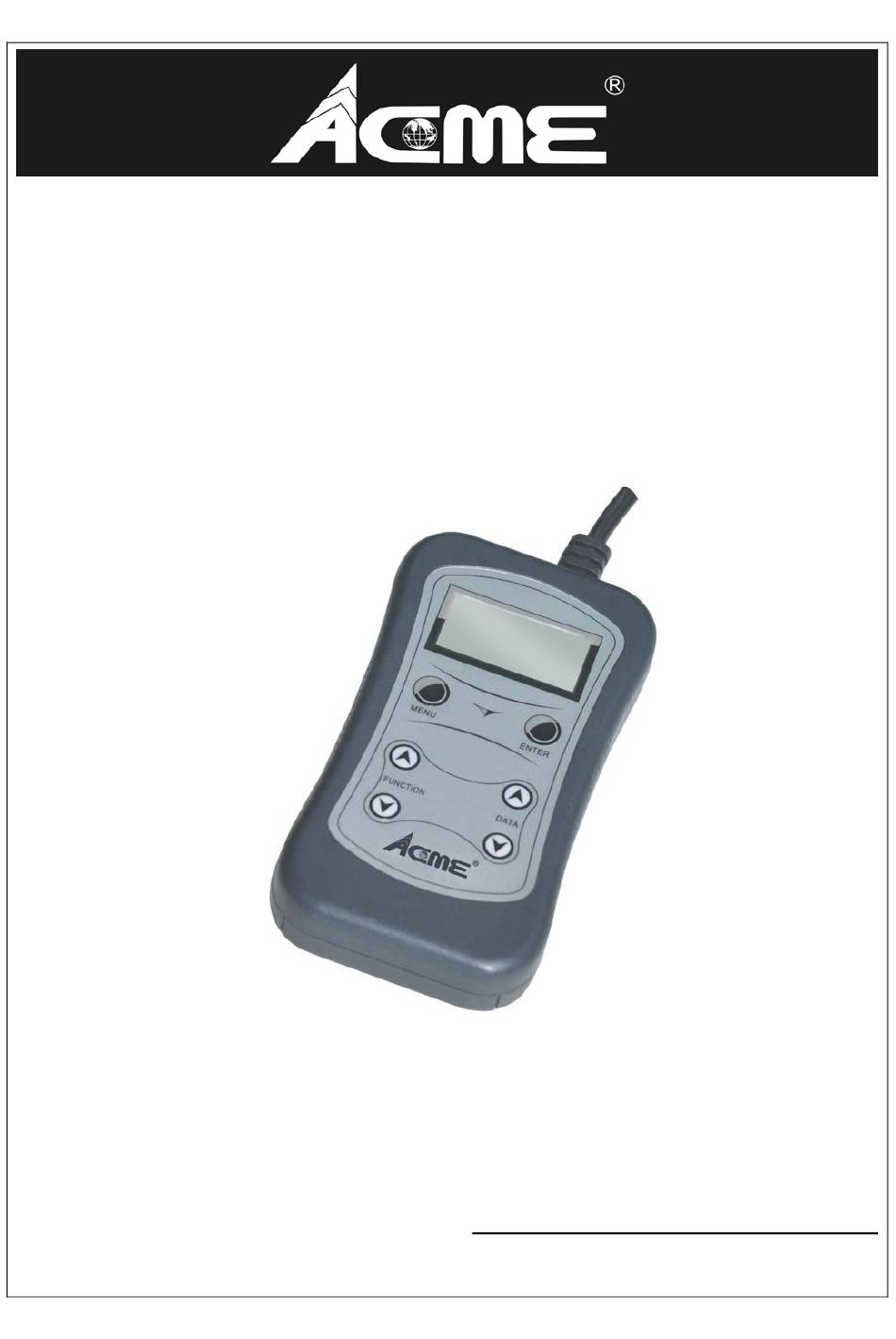

  • Page 1 VD-T User Manual Please read the instruction carefully before use...
  • Page 2 TABLE OF CONTENTS 1. Technical Specifications ........................2 2. Control Panel ............................ 2 3. Main Function ..........................3 3.1 Manual Setting ........................... 3 3.2 Auto Setting ..........................5 3.3 Quit Settings ..........................6...
  • Page 3 1. Technical Specifications VD-T is a specially designed handy confirm tool for all ACME integral fixtures and Controllers. By connecting VD-T to any fixture via XLR, user can easily confirm DMX address, Channel modes, White Balance, Manual Colors, Fade Speed and other functions on the ACME LED fixtures.
  • Page 4 3. Main Function Every time you turn the unit on, it will show the version on the display, press ENTER button the unit will carry out “Set Addr”, equipment will set extemporaneous address on light, after performing 8 seconds, it will show “Setting Manual” on the display, press FUNCTION button and “setting Auto”...
  • Page 5 1. Choose one operation step, to set up fixture by fixture. Press FUNCTION button to select “Setting Manual”, press ENTER button to confirm. We can press FUNCTION to choose 1-9999 lights in every step, then set up the fixture. DMX 512 Address Setting In “Setting Manual”...
  • Page 6 manual color, the unit you selected will lighting in green, it will be showed “Manual-C 0001: OFF” the unit you select 1-9999 lights will lighting in green once press FUNCTION , press DATA to select NO or YES, once YES showed need select, NO showed DON’T select, press ENTER button after enter YES, it will be showed “Manual-C Red: 255”, use FUNCTION to select the red, green, blue, cool, warm, amber and strobe.
  • Page 7 confirm, use FUNCTION to select “Auto Set CHMD: 1”, the unit you selected will lighting in green, Press ENTER button and use DATA button to change the channel mode, once selected, press ENTER button to confirm, use FUNCTION to select whether carry out automatically setting, press YES save the settings or NO for giving up.
  • Page 8 Innovation, Quality, Performance...
