Page 1

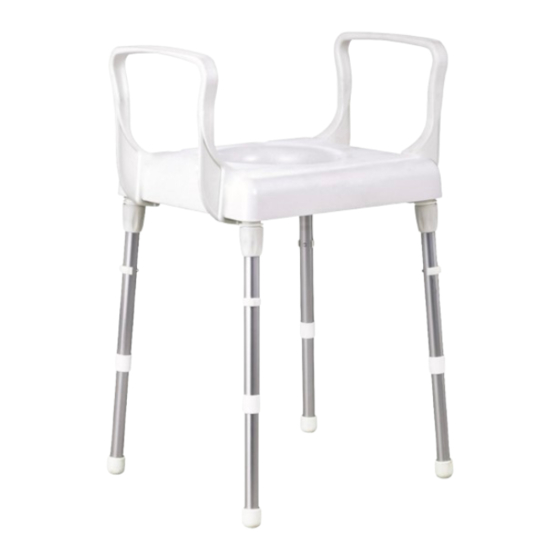

Web: www.rebotec.de BA-Nr.: 02.08.207/2021-01-A01 Email: info@rebotec.de User Manual Toilet stool Brest 362.00.20 130 kg Figure similar Read this User Manual before using the device for the first time and keep it at hand for the user as well as for future use and subsequent sales.
BA-Nr.: 02.08.207/2021-01-A01 REBOTEC / toilet, even if a conventional toilet or bathroom is 1. Product description out of reach. The patient must have sufficient sit- ting ability and upper body musculature. If neces- sary, a nurse must be present during use. The product is not intended for prolonged sitting.
BA-Nr.: 02.08.207/2021-01-A01 REBOTEC / • Seat plate with hygiene cutout Symbol Meaning Symbol Meaning Do not dis- • Armrests Read pose of as User Man- • Removable household ual! waste. 2.5. Packaging Product complies with (EU) 2017/745 • We recommend you keep the packaging for a later transport.
• Serious incidents in connection with the product must be reported immediately to the manufacturer 8. Scope of delivery and BfArM. • 1x 362.00.20 Shower seat Brest BfArM: www.bfarm.de/DE 1x seat plate ▪ Use the reporting functions and provided forms.
BA-Nr.: 02.08.207/2021-01-A01 REBOTEC / 9.1. Assembling the tube sets • Place the seat plate on a clean and flat surface with the underside facing upwards. If necessary, use a soft pad to avoid scratches. • Hold the armrest in position (3) with slight counter- pressure and slide the clamping elements into po- sition (4).
These may impair the safety and proper functioning of the product. In tions, the user must seek the assistance of a com- such cases, REBOTEC will not assume any lia- petent person. This can be done with the help of bility.
Maintenance Instructions 456.00.25 Foot cap 201.90.28 Adjustment clip 463.90.40 Union nut 442.00.25 End plug 463.90.20 Armrest 463.90.60 Clip 284.00.30 Travel bag Use only REBOTEC spare parts and accessories to ensure the proper and safe functioning of the device. - 8 -...
BA-Nr.: 02.08.207/2021-01-A01 REBOTEC / 14. Drawing & dimensions Dimensions Designation Height min. Height max. Width Depth Seat height min. Seat height max. Spacing of the armrests Seat width Seat depth 575 x 550 Floor space Dimensions and weights may vary depending on the equipment. There might be minor deviations due to production tolerances.
