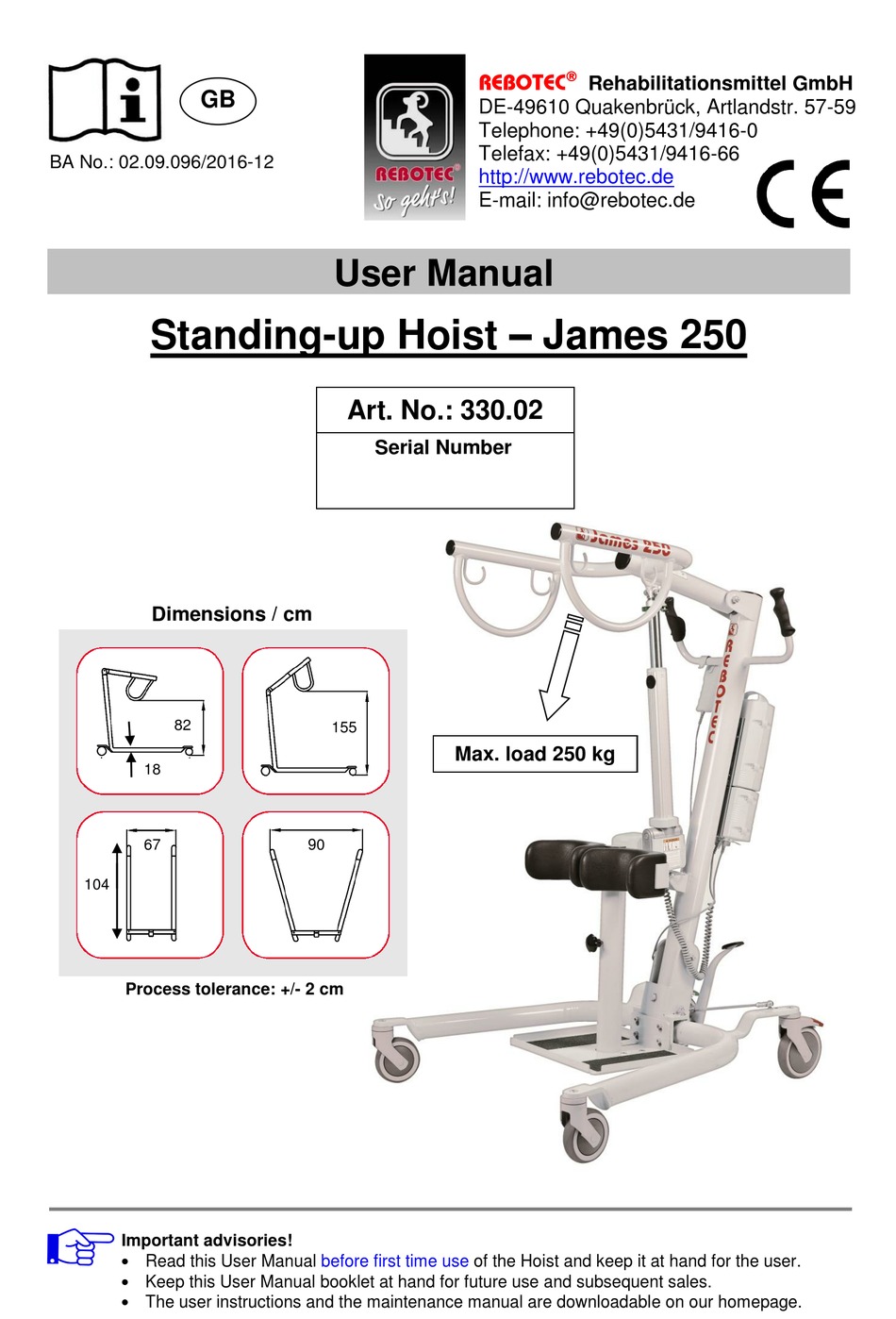

Standing-up Hoist – James 250
Dimensions / cm
82
18
5
67
104
Process tolerance: +/- 2 cm
Important advisories!
 Read this User Manual
 Keep this User Manual booklet at hand for future use and subsequent sales.
 The user instructions and the maintenance manual are downloadable on our homepage.
User Manual
Art. No.: 330.02
Serial Number
06/2005 (Th.B.)
155
Max. load 250 kg
90
before first time use
of the Hoist and keep it at hand for the user.
REBOTEC
®
Rehabilitationsmittel GmbH
DE-49610 Quakenbrück, Artlandstr. 57-59
Telephone: +49(0)5431/9416-0
Telefax: +49(0)5431/9416-66
http://www.rebotec.de
E-mail: info@rebotec.de
