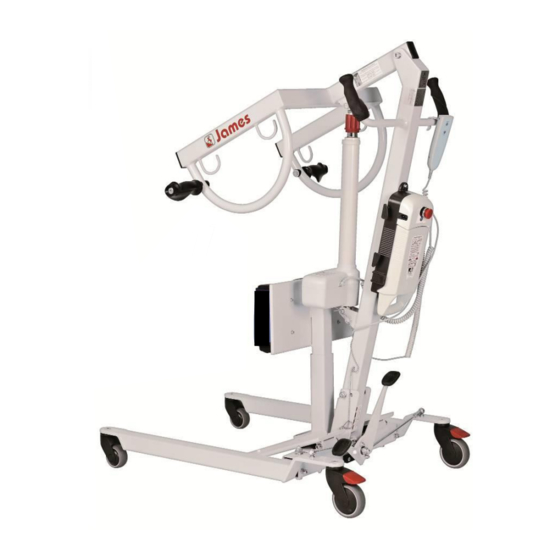

Rebotec James 150 User Manual

Standing-up hoist
Hide thumbs Also See for James 150:
Table of Contents

Advertisement

Quick Links

Download this manual
EN
BA-Nr.: 02.09.201/2021-08-A02
Figure similar
Read this User Manual
user as well as for future use and subsequent sales.
User Manual
Standing-up Hoist
James 150
320.02.10
150 kg
before using the device for the first time
REBOTEC
®
Rehabilitationsmittel GmbH
DE-49610 Quakenbrück, Artlandstr. 57- 59
Telephone: 5431/9416-0
Fax: +49 (0) 5431/9416- 66
Web:
www.rebotec.de
Email:
info@rebotec.de
and keep it at hand for the

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the James 150 and is the answer not in the manual?

Questions and answers

Related Manuals for Rebotec James 150

Summary of Contents for Rebotec James 150

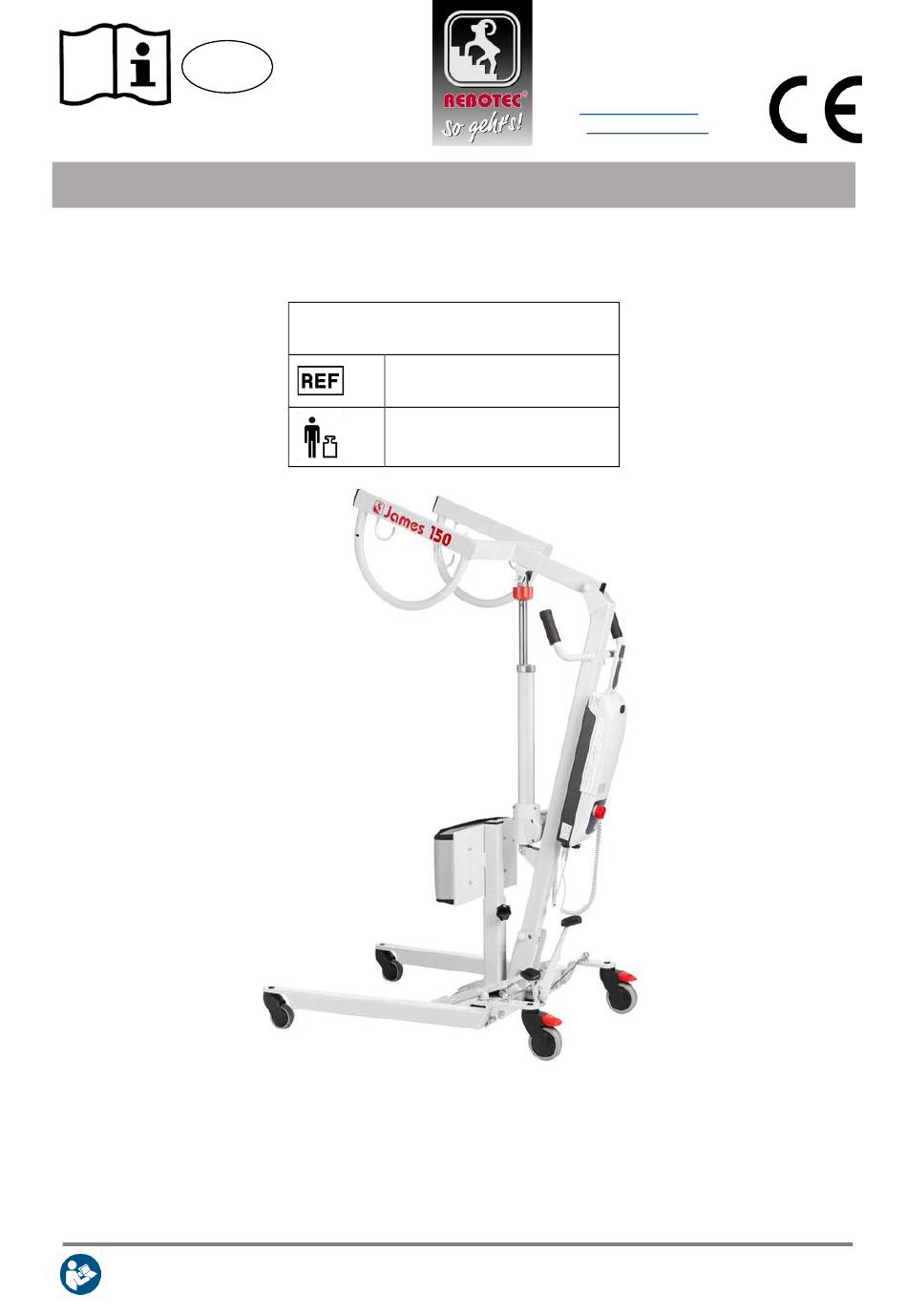

  • Page 1 Web: www.rebotec.de BA-Nr.: 02.09.201/2021-08-A02 Email: info@rebotec.de User Manual Standing-up Hoist James 150 320.02.10 150 kg Figure similar Read this User Manual before using the device for the first time and keep it at hand for the user as well as for future use and subsequent sales.

  • Page 2: Table Of Contents

    BA-Nr.: 02.09.201/2021-08-A02 REBOTEC / Braking function of the rear castors Table of contents Product description ....... 3 Emergency lowering ....10 Introduction ..........3 14.1 Electrical emergency lowering ... 10 14.2 Mechanical emergency lowering ..10 Features .......... 3 Intended purpose ........3 Stability &...

  • Page 3: Product Description

    BA-Nr.: 02.09.201/2021-08-A02 REBOTEC / 1 Product description 2 Features 2.1 Intended purpose The article is used for raising and moving patients with mobility impairments. There must be sufficient upper body musculature for safe use. A knowl- edgeable caregiver must be present during appli- cation.

  • Page 4: Equipment & Functions

    BA-Nr.: 02.09.201/2021-08-A02 REBOTEC / 2.4 Equipment & functions Symbol Meaning Symbol Meaning • The device is equipped with an electrical lifting Serial num- Important information! drive, crush protection, emergency lowering, Maximum EMERGENCY OFF function and a rechargeable Article num- user weight battery unit.

  • Page 5: Safety Instructions

    BA-Nr.: 02.09.201/2021-08-A02 REBOTEC / • In case of malfunctions or damage of any kind, the Meaning device must not be used. Protection against vertically falling drops of water Caution: Danger of breakage! Protection against vertically falling drops • The max. allowable load must not be exceeded, as of water when the enclosure is tilted up to 15°C...

  • Page 6: Incident Reporting

    • Serious incidents in connection with the product 8 Scope of delivery must be reported immediately to the manufacturer and BfArM. • 1x 320.02.10 standing-up hoist James 150  BfArM: www.bfarm.de/DE  1x standing-up hoist frame ▪ Use the reporting functions and provided ...

  • Page 7: Installing The Control Unit

    BA-Nr.: 02.09.201/2021-08-A02 REBOTEC / Attention! Before raising the column, bring the pedal first to the centre position in order to avoid any damage. See also notice on the column. It is recommended to remove the packaging material at the column and forked arm only after the column has been set up.

  • Page 8: Installing The Column

    BA-Nr.: 02.09.201/2021-08-A02 REBOTEC / 9.3 Installing the column Remove the key ring (1) from the bolt and then pull the bolt completely out of the hole. Make sure that the key ring is completely closed! 9.5 Installing the holder with knee pro- tection •...

  • Page 9: Charging The Rechargeable Battery

    BA-Nr.: 02.09.201/2021-08-A02 REBOTEC / • When all the bars on battery display are full, the 10 Charging the rechargeable bat- rechargeable battery is fully charged (see 10.3). If tery the charging process takes longer than 14 hours, the rechargeable battery or control unit may be de- Recharge the discharged rechargeable bat- fective.

  • Page 10: Emergency Off Function

    BA-Nr.: 02.09.201/2021-08-A02 REBOTEC / 13 Braking function of the rear cas- Symbols Description tors System is overloaded. • The two rear castors are provided with an im- portant safety feature for using the device. The rear castors are equipped with a locking brake and The rechargeable battery can be removed an anti-swivel protection.

  • Page 11: Stability & Spreading The Base

    BA-Nr.: 02.09.201/2021-08-A02 REBOTEC / Before using the emergency lowering, press the EMERGENCY OFF switch! Attention risk of injury! When using the mechanical emergency lowering, do not stand under the arm. Lowering Grab the red rotary grip with your hand. For lowering the drive axis, hold the red rotary grip and turn it in the direction of the arrow.

  • Page 12: Troubleshooting

    (02.12.160). Depending on the application, there are several dif- 18.1 Emergency lowering ferent types of sling systems offered by REBOTEC. • The emergency lowering mechanism must not be To assist you in selecting the most suitable sling sys- tem, a Guide is available (see 20).

  • Page 13: Repair

    These may impair the safety and proper functioning of the product. In conversions to the device. These will only ad- such cases, REBOTEC will not assume any lia- versely affect the safety and functioning of the de- bility.

  • Page 14: Spare Parts & Accessories

    BA-Nr.: 02.09.201/2021-08-A02 REBOTEC / 19 Spare parts & accessories 5a/b - 14 -...
  • Page 15 Handles for D22x120 mm column 420.58.97 SL24/1.5 key ring 420.00.14 Screwing set for centre of rotation 320.60 Handles for Standing-up Hoist James Use only REBOTEC spare parts and accessories to ensure the proper and safe functioning of the device. - 15 -...

  • Page 16: Drawing & Dimensions

    BA-Nr.: 02.09.201/2021-08-A02 REBOTEC / 20 Drawing & dimensions - 16 -...
  • Page 17 BA-Nr.: 02.09.201/2021-08-A02 REBOTEC / James 150 Dimensions Designation in mm Highest point Highest point at highest reach Lowest point Highest reach at a height of 600 mm (reference height) Highest reach from the base frame Reach from the base frame when expanding the leg supports to 700 mm...
  • Page 18 BA-Nr.: 02.09.201/2021-08-A02 REBOTEC / - 18 -...
  • Page 19 BA-Nr.: 02.09.201/2021-08-A02 REBOTEC / - 19 -...
  • Page 20 BA-Nr.: 02.09.201/2021-08-A02 REBOTEC / ® REBOTEC Rehabilitationsmittel GmbH D-49610 Quakenbrück, Artlandstr. 57- 59 Telephone: +49 (0) 5431/9416-0 Fax: +49 (0) 5431/9416- 66 Web: www.rebotec.de Email: info@rebotec.de - 20 -...
