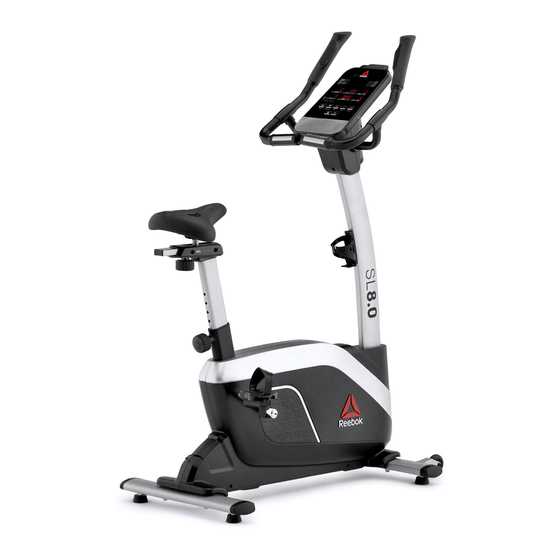

SL8.0 bike RVSL-10801
目次
ユーザーマニュアル(組立方法・取扱説明書) ........................... 1
パーツリスト(部品一覧表) ............................................................... 8
コンソールマニュアル(操作画面説明書) ................................. 12
シリアル表示位置 ............................................................................ 14
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Reebok SL8.0
Summary of Contents for Reebok SL8.0
- Page 1 SL8.0 bike RVSL-10801 目次 ユーザーマニュアル(組立方法・取扱説明書) ......1 パーツリスト(部品一覧表) ............... 8 コンソールマニュアル(操作画面説明書) ......... 12 シリアル表示位置 ................14...
- Page 2 SL8.0 Bike U S E R M A N UA L...
-
Page 3: Hardware Pack
SL8.0 Bike USER MANUAL PARTS: Upright post cover Handlebar Console Upright post Water bottle holder Frame Adaptor Saddle Saddle Post Console tray front cover Console tray rear cover HARDWARE PACK: Front foot tube #49 M8x20 x5 #50 Ø19xØ8 x9 #54 Ø13.5xØ8.5 x9 Rear foot tube #102 ST2.9x20L x4... - Page 4 54 x 4 50 x 4 66 x 4 62 x 1 60 x 1...
- Page 5 SL8.0 Bike USER MANUAL 61 x 1 60 x 1 54 x 5 50 x 5 49 x 5 62 x 1...
- Page 6 62 x 1 61 x 1 102 x 4 61 x 1...
-
Page 7: Saddle Height Adjustment
SL8.0 Bike USER MANUAL SADDLE HEIGHT ADJUSTMENT MOVING THE BIKE PUSH DOWN ON THE HANDLES ON THE FRONT TO LIFT THE BIKE, AND THEN YOU CAN PUSH/PULL FORWARDS AND BACKWARDS 78cm 54cm... - Page 8 Allow for a minimum space of 1m around Serial no. is located on the base of the the bike when in operation. bike. Example: Serial No.: RVSL-10801/0119/000001. Manufacture Date: July 2018 Serial no. SETUP DIMENSIONS 113.5 (L) x 56 (W) x 146.5 (H) WEEE logo this symbol on a product means that the product is covered by European Directive 2012/19/EU.
- Page 9 SL8.0 Bike USER MANUAL...
- Page 10 ITEM DESCRIPTION QTY. ITEM DESCRIPTION QTY. ITEM DESCRIPTION QTY. Console Wave washer Screw (ST3.9*50L) (ø20.5*ø30*0.3T) Upper cable Crank (L) Bearing (6004 2RS) Flat washer Pedal (L) (ø8*ø19*2T,BLK) Sleeve Screw (ST2.9*20L) Screw (M8*P1.25*16L) Screw (M8*P1.25*20L) Screw (M8*40L *S18L) Saddle (3B-21Q+GEL) Flat washer Transport wheel (ø8*ø19*2T) Console tray rear cover...
- Page 11 CONNECT YOUR SMARTPHONE TO YOUR NEW REEBOK EQUIPMENT DOWNLOAD: Search ‘Reebok Fitness Equipment’ on the App Store or Google Play. CONNECT: Your Reebok machine connects to the app via the bluetooth dongle, so you don’t need GPS or internet to use it. The USB connector is colour coded blue to match the correct USB port on your machine.
- Page 12 To remove the data view from the screen, press the data view button. TRACK YOUR WORKOUT The Reebok Fitness app allows you to track your progress via Google Maps. You can switch the view between map, satellite, flyover and street view.
- Page 13 SL8.0 Bike USER MANUAL JAPANESE P.12...
- Page 14 P.13...
- Page 15 PRODUCT RVSL-10801 – SL8.0 Bike CODE LOCATION Located on the bottom of the main frame P.14...
- Page 16 SL8.0 Bike UK: RFE Europa Ltd. 8 Clarendon Drive, Wymbush, Milton Keynes, MK8 8ED. +44 (0)800 440 2459 / techsupport@rfeinternational.com Europe: RFE Europa, Linprunstrasse 49, 80335 Munich, Deutschland. serviceeuropa@rfeinternational.com ES: +34 800 600 816 / serviciotecnico@rfeinternational.com DE: +49 (0)89 189 39 700 / serviceeuropa@rfeinternational.com APAC (excluding Australia): RFE Asia Pacific, 26F, 2608-2609, 1 Hung To Road, Kwun Tong, Kowloon, Hong Kong.
