Install The Stand - Samsung UN55C5000 User Manual

Series 5 5000.
Hide thumbs

Advertisement

See separate guide for installing the stand.
Stand (1EA)

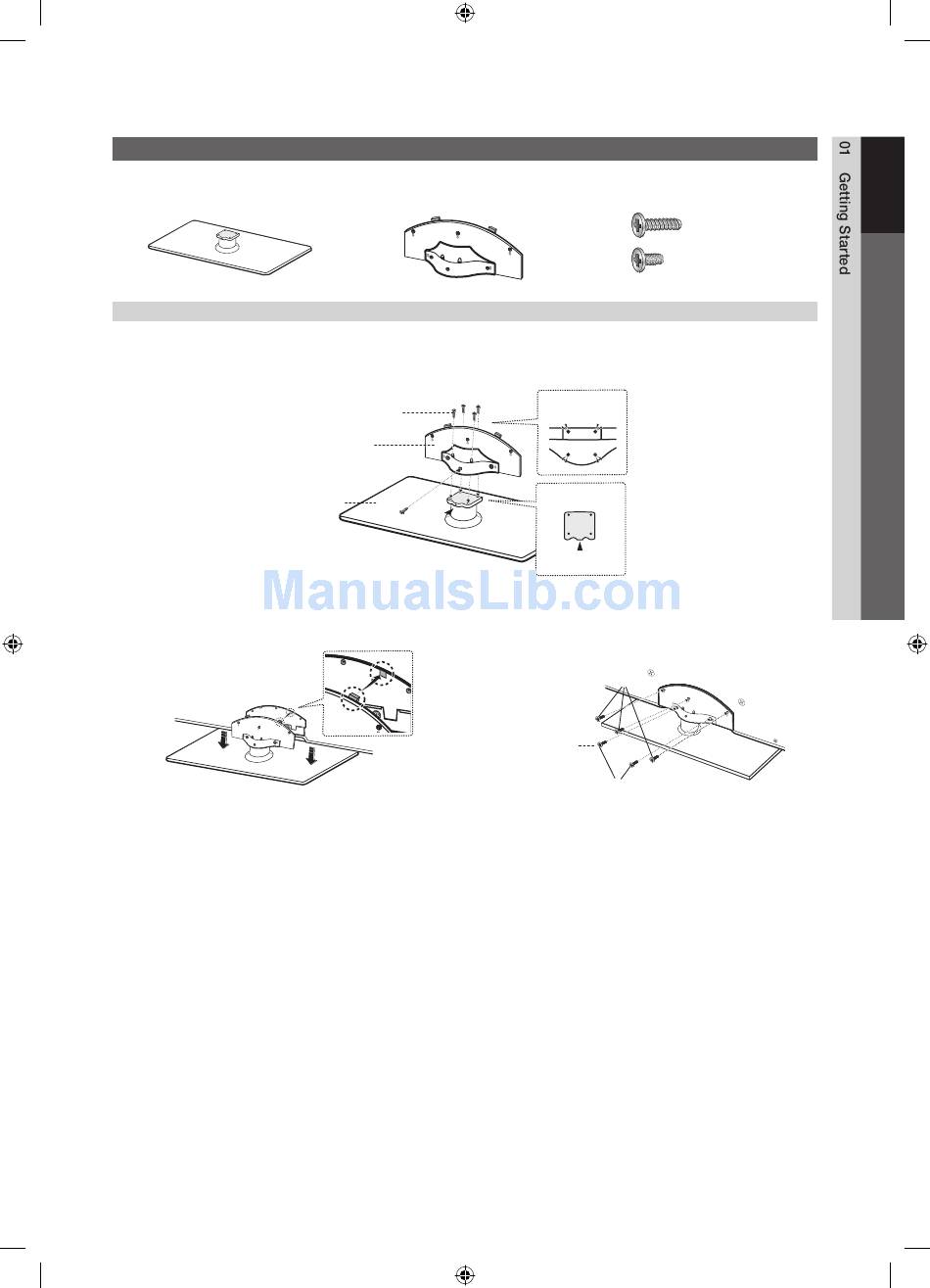

Follow the steps below to connect the TV to the stand.
1. Connect the Guide Stand to the Stand using five screws (M4 X L12) as shown.
2. With your TV upright, connect the TV to the Stand.
NOTE
x
Make sure to distinguish between the front and back of the Stand and Guide Stand when assembling them.
x
Make sure that at least two persons lift and move the LED TV.
x
Stand the product up and fasten the screws. If you fasten the screws with the LED TV placed down, it may lean to
one side.
[UC5000(55)_USA]BN68-03004A-01Eng.indb 5

Install the Stand

Guide Stand (1EA)
Screws (M4 X L12)
Guide Stand
Stand
Rear
3. Fasten two screws (M4 X L8) at position 1, and then
(A)
(B)
Screws (10EA)
Top view
Front
Rear
2
Screws (M4 X L8)
1
fasten three screws (M4 X L8) at position 2.
5EA (M4 X L12)
5EA (M4 X L8)
5
English
2010-06-28 오후 1:06:32
