Connections

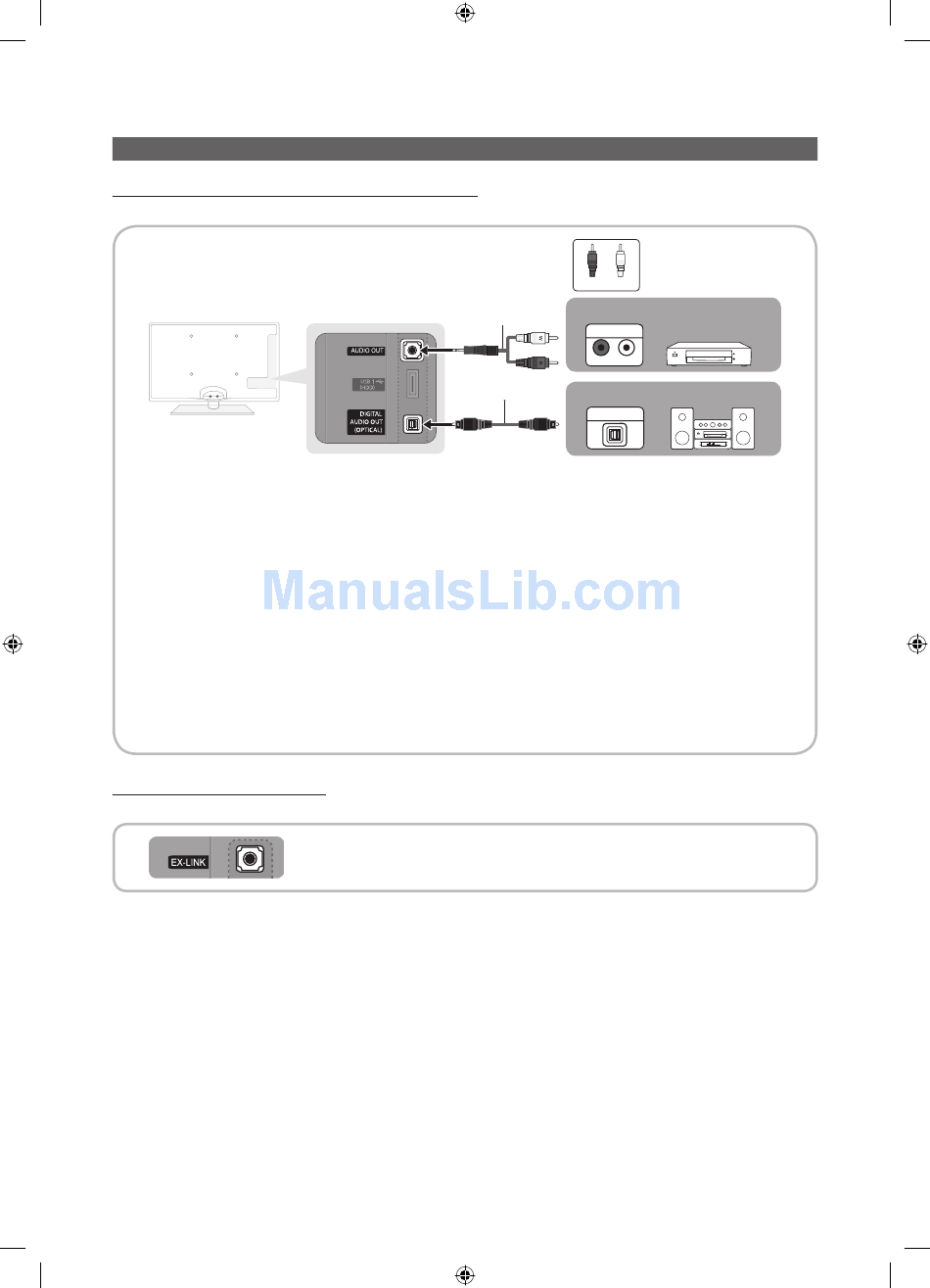

Using an Optical (Digital) or Audio (Analog) Cable Connection
Available devices: Digital Audio System, Amplifier, DVD home theater
DIGITAL AUDIO OUT (OPTICAL)
x
When a Digital Audio System is connected to the
of both the TV and the system.
x
5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH.
x
When the receiver (amplifier or DVD home theater) is set to on, you can hear sound output from the TV's
optical jack. When the TV is receiving a DTV signal, the TV will send 5.1 CH sound to the amplifier or DVD
home theater. When the source is a digital component such as a DVD / Blu-ray player / cable box / STB
(Set-Top-Box) satellite receiver and is connected to the TV via HDMI, only 2 CH audio will be heard from the
amplifier or DVD home theater. If you want to hear 5.1 CH audio, connect the digital audio out jack from your
DVD / Blu-ray player / cable box / STB satellite receiver directly to an amplifier or home theater.
AUDIO
OUT: Connects to the audio input jacks on your amplifier / DVD home theater.
x
When connecting, use the appropriate connector.
x
When an audio amplifier is connected to the
volume level with the Amplifier's volume control.
Using an EX-Link Cable Connection
Available Devices: External devices that support EX-Link
10
English
[UC5000(55)_USA]BN68-03004A-01Eng.indb 10

Connecting to an Audio Device

Audio Cable (Not Supplied)
Optical Cable (Not Supplied)
DIGITAL AUDIO OUT (OPTICAL)
jacks: Decrease the volume of the TV and adjust the
AUDIO OUT
EX-LINK: Connector for service only.
R
W
Red
White
Amplifier, DVD home theater
AUDIO IN
R-AUDIO-L
Digital Audio System
OPTICAL
jack, decrease the volume
2010-06-28 오후 1:06:35
