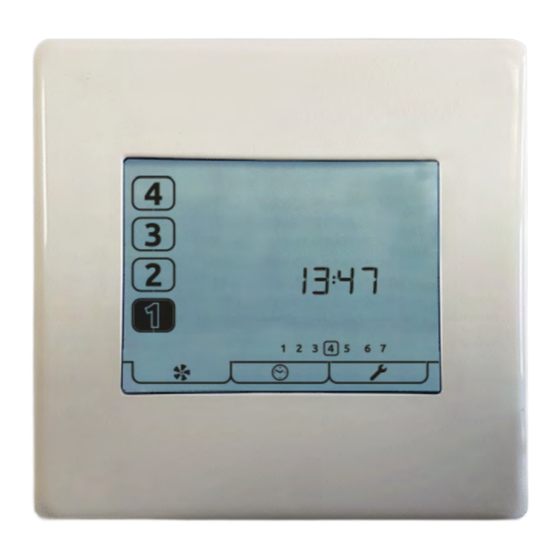

- Page 1 Commissioning Procedure for standard HRV HMB & B Units with remote or integral aura-t ™ Commissioning Guide - aura-t™ Standard HRV Units...
- Page 2 • If the display has been password protected the screen will show as below, if not skip to the next instruction. Press the icon four times . The screen will show as below, press the icon to progress to the commissioning screen. Sales and Technical Support +44 (0) 1206 713801 enquiries@titon.com www.titon.com...
- Page 3 It is not uncommon for ceiling terminals to be removed and mixed up by the painters, a good idea is to mark the inside of the terminal with the room it came from, this saves re commissioning. Sales and Technical Support +44 (0) 1206 713801 enquiries@titon.com www.titon.com...
- Page 4 • When complete lock the ceiling terminals in position Supply • Press the icon this will put the unit into the Extract Continuous setting mode, as below. The figure pointed at below will be flashing: Extract Sales and Technical Support +44 (0) 1206 713801 enquiries@titon.com www.titon.com...
- Page 5 • If the total is less than the required total Supply Boost dwelling rate*, speed the unit up • Keep changing the speed until the total Supply Boost dwelling rate* is achieved Sales and Technical Support +44 (0) 1206 713801 enquiries@titon.com www.titon.com...
- Page 6 B Models HMB Models • If the display has been password protected the screen will show as below, if not skip to the next instruction Sales and Technical Support +44 (0) 1206 713801 enquiries@titon.com www.titon.com...
- Page 7 Press the up arrow shown below twice until the screen looks like the one below on the right, with the humidity figure flashing. HMB Model - Will show with humidity figure flashing. All models - Press the icon shown below: Sales and Technical Support +44 (0) 1206 713801 enquiries@titon.com www.titon.com...
- Page 8 • Once the required figure has been set press the icon as shown below: • The screen will look as below: To return to the main screen press icon. To set the Overrun timer read on. Sales and Technical Support +44 (0) 1206 713801 enquiries@titon.com www.titon.com...
- Page 9 • Press the and the screen will look as below, with the wet room overrun timer flashing as indicated below: Sales and Technical Support +44 (0) 1206 713801 enquiries@titon.com www.titon.com...
- Page 10 • Once the required setting has been set press the icon, the screen will look as below. To return to the main screen press Other settings can be accessed, please see the respective aura-t™ manuals (url link) for details. Sales and Technical Support +44 (0) 1206 713801 enquiries@titon.com www.titon.com...
- Page 11 Sales and Technical Support +44 (0) 1206 713801 enquiries@titon.com www.titon.com...
- Page 12 Respect the local environmental rules. If any doubt contact your local authorities about waste disposal rules. MARKE TING DIVISION 894 The Crescent, Colchester Business Park, Colchester, CO4 9YQ Tel: +44 (0) 1206 713800 Fax: +44 (0) 1206 543126 Email: ventsales@titon.co.uk Web: www.titon.com ©2022 TITON BM991 Issue 01...
