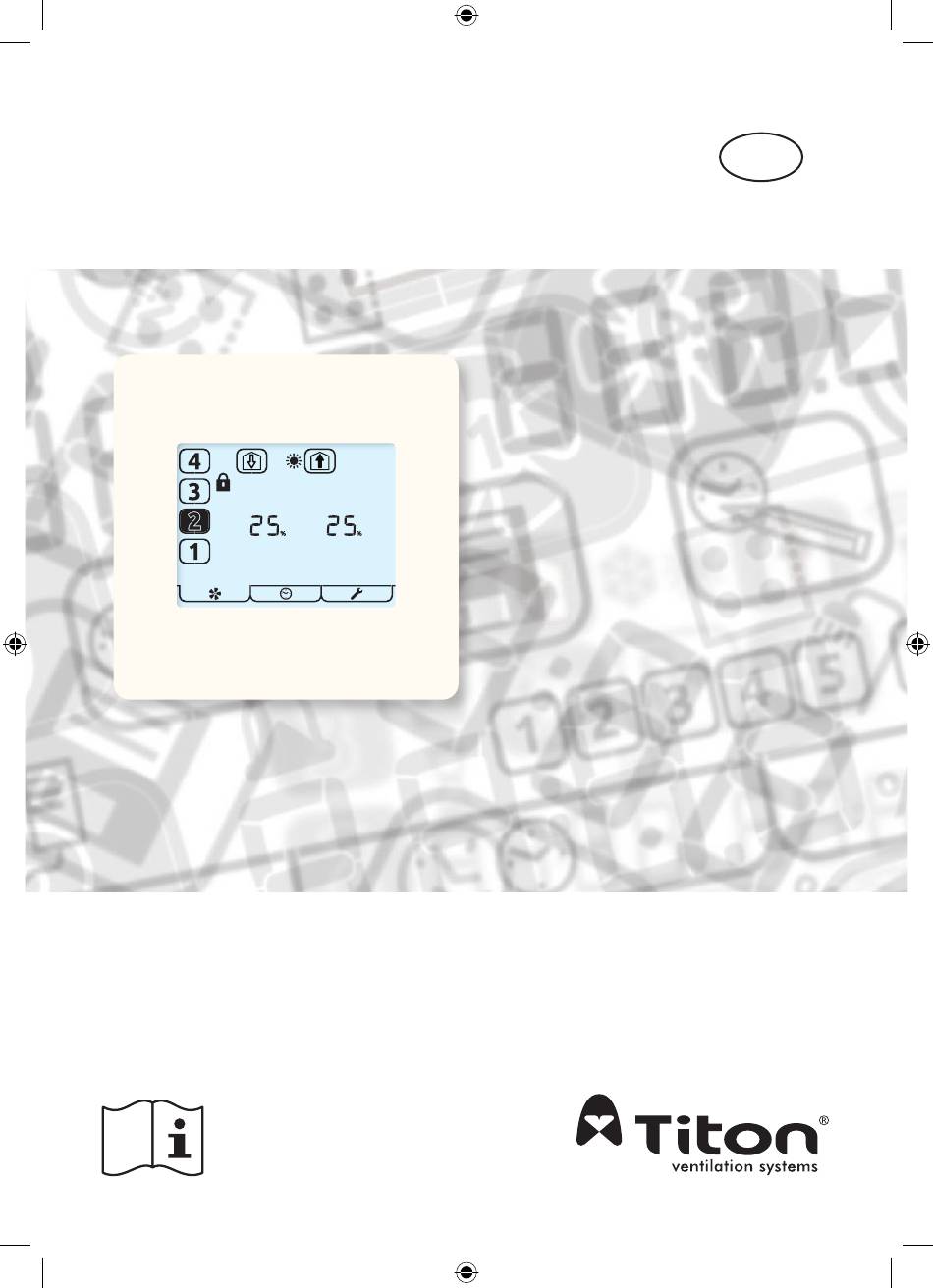

- Page 1 aura-t TP539 Product Manual HRV controller HMB units...
-
Page 2: Warnings, Safety Information And Guidance
Warnings, Safety information and Guidance Important Information Read instructions fully before the installing this appliance. 1. This manual covers the operation of the HRV control sys- tem only, it must therefore be read in conjunction with the relevant heat recovery unit Product Manual. 2. - Page 3 8. The appliance is not suitable for installation to the exterior of the dwelling. 9. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concern- ing use of the appliance in a safe way and understand the hazards involved.
-
Page 4: Table Of Contents
Contents Warnings, Safety information and Guidance Maintenance Important Information 2 Cleaning Exterior 23 Product Overview Appendix Description 5... -
Page 5: Product Overview
The aura-t is a programmable touch screen controller which monitors and displays the status of a Titon HMB HRV unit. The aura-t gives the user manual control of fan speeds and enables access to enhanced commissioning functions of the HRV. -
Page 6: Product Overview
Product Overview Controls & Features Standard aura-t or auralite ready The standard units have the ability to run standalone with the built in controller with potentiometer commission or connect either an aura-t controller for enhanced control and commissioning or an auralite LED status indicator using a the plug in connection. - Page 7 Feature Standard without aura-t Enhanced with aura-t connected or integrated Speed Selection Speed 1, Setback is enabled by As the standard units with the connection of a volt free one- additional functionality of: way switch, or combined with Speeds 1, 3 & 4 can be assigned the Speed 3 Boost with the 3 to any of the volt free switch position switch TP 508.
- Page 8 Feature Standard without aura-t Enhanced with aura-t connected or integrated Volt free Not configurable. The units have 3 configurable Switch inputs Defaults: volt free switch inputs. Each of SW1 Summer Boost Disable the switches can be configured SW2 Wet Room Boost to perform any one of the SW3 Speed 1 following functions:...
- Page 9 Feature Standard without aura-t Enhanced with aura-t connected or integrated SUMMERboost® An optional SUMMERboost® facility is available that allows both the supply and extract fans to run at increased speed whenever the Summer Bypass is activate. By default SUMMERboost® is disabled by a Link Wire, see Wiring Diagrams.
- Page 10 Feature Standard without aura-t Enhanced with aura-t connected or integrated Internal The fan speed increases proportionally between Continuous Humidity Speed & Boost Speed depending on the measured %RH. Sensor Boost Speed Continuous Speed -10% RH Set +10% Point The Humidity Sensor’s set The Humidity Sensor’s set point is variable from 55%RH point is variable from 30%RH to...
- Page 11 Settings Reset If required the controller can be reset. The following settings are returned to their default values: Setting Default Value Summer Boost Disable Wet Room Boost Speed 1 Filter Change Period 6 months Summer Bypass Extract Threshold 22°C Summer Bypass Supply Threshold 15°C SummerBoost Enabled...
-
Page 12: User Interface
User Interface The aura-t is operated via a LCD touchscreen. The screen is backlit, the backlight operates when the screen is touched. Menu Tabs The aura-t screen has three interactive menu screens which are selected via tabs at the bottom of the touchscreen. Passcode Screen Function Monitor &... -
Page 13: Run Mode
Run Mode The aura-t controls the HRV unit’s 4 programmable speed settings. This is the Run Mode screen; use the number buttons to select the required fan speeds. Speeds 1,3 & 4 are on a one hour timer, after the hour has elapsed the HRV will return to Speed 2. - Page 14 The speed the HRV is running at is being controlled by the internal humidity sensor. Other Icons Other status icon that may be visible on the screen are listed below: The filters need changing or cleaning, refer to the Settings Menu for details of how to reset the timer.
-
Page 15: Installation
Installation Location The aura-t should be mounted in position convenient for the householder and where the supplied control cable will reach. Fixing Un-clip the front of the aura-t case from the Back Plate. Thread the control cable through the hole in the Back Plate. Fixing Holes Wiring Access Hole Connection to HRV... -
Page 16: Wiring
Wiring The aura-t’s control cable will be supplied fitted with a plug in connector for connection to the HRV. White Yellow or Green Black typical plug connection to HRV Wire connection to HRV Connection to aura-t... -
Page 17: Fan Commission
Fan Commission Commissioning Fan Commission Mode is entered by pressing the Fan Button for 5 seconds whilst in Run Mode. The HRV’s fan speeds will be displayed. A flashing item on the screen indicates it is being edited. Select the required fan speed using the number buttons at the left of the screen. -
Page 18: Cloning
Cloning Cloning Saving Fan Speeds to the aura-t Enter Fan Commission Mode by pressing the Fan button for 5 seconds whilst in Run Mode. The HRV’s fan speeds will be displayed. Tap the Fan button to display the fan speeds stored on the aura-t. The stored speeds can be viewed using the number buttons, the HRV will run at the selected speed. -
Page 19: Controller Setup
Controller Setup Enter key. Exit Key. Tap the Setup Mode tab to enter the Setup Mode menu. All the editable settings in the Controller Setup menu are accessed in the same way. Menu navigation is achieved by first Setting Selection and then Editing. Setting Selection Arrow keys are used to select a setting, the setting will flash. - Page 20 The order in which editable settings are displayed is as follows. Humidity threshold Kitchen Overrun timer. Wet room Overrun timer. Summer Bypass Setup. Passcode Disable / Enable. Filter Period Filter Reset If a filter change is required the reset ring will be flashing. Tap the Enter key to reset or the Exit key.
-
Page 21: Summer Bypass Setup
Summer Bypass Setup Use to adjust value up or down. Enter key. Use the Supply and Extract buttons to select which threshold is to be adjusted. Supply represents from atmosphere air temperature; Supply Extract represents from dwelling air temperature. Extract Tap button[4] to enable / disable SUMMERboost. -
Page 22: Eco Mode And Switch Setup Menu
Eco Mode and Switch Setup Menu In this Sub-Menu of the Setup Menu the installer can enable or disable Eco Mode and configure the function of the HRV unit’s switch inputs SW1, SW2, SW3 (see HRV Product Manual for details). Enter key. -
Page 23: Maintenance
Maintenance The aura-t is maintenance free. Cleaning Exterior For best results use a clean damp micro fibre cloth. Do not use abrasive cleaners, waxes, solvents or alcohol based cleaning products; do not use paper towels for cleaning the aura-t. Appendix aura-t Configurable Defaults The table below details the default values and the range of available settings, plus any additional information about those settings the aura-t can configure. - Page 24 Some control features documented in this manual may not be compatible with older Titon HRV units. If you are replacing an older auralite controller please check with technical at Titon to confirm unit is compatible with aura-t.
- Page 25 This Product Manual must be kept in the Home Information Pack. Installed by: MARKETING DIVISION 894 The Crescent, Colchester Business Park, Colchester, Essex, CO4 9YQ United Kingdom Tel: +44 (0) 1206 713800 Fax: +44 (0) 1206 543126 Email: ventsales@titon.co.uk Web: www.titon.com ©2018 TITON DO 5666 Iss 01...
