- Page 1 TP536/EU aura-t™ SMART TP736/EU aura-t™ SMART (AR m³/h) for HRV3QAR TP737/EU auraSMART ® HRV controllers Product Manual ventilation systems...
- Page 2 3. All wiring must conform to current I.E.E. Wiring Regula- tions and all applicable standards and Building Regula- tions. 4. aura-t must be connected using the communication ™ cable provided, this can be extended up to 30m. Control &...
- Page 3 11. To avoid damaging the touch screen, do not operate it with sharp or hard objects; do not apply excessive finger- tip pressure. 12. Do not use abrasive cleaners, waxes, solvents or alcohol based cleaning products; do not use paper towels for cleaning the aura-t ™...
-
Page 4: Table Of Contents
Appendix aura-t™ Configurable Defaults 28 Compatibility 29... -
Page 5: Product Overview

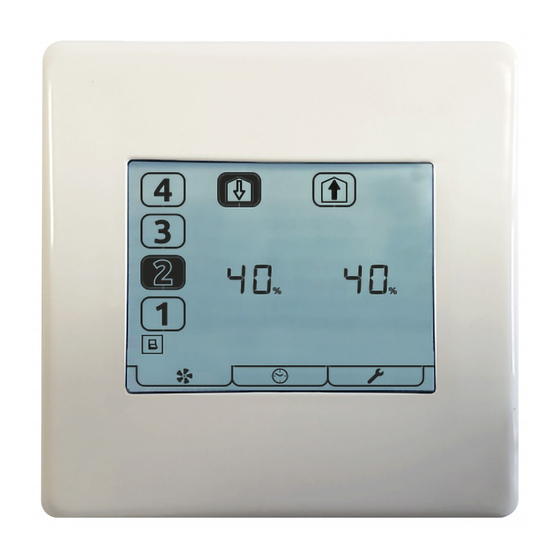

Titon ECOaura HRV unit. It allows the unit to be commissioned, and gives the user both manual and timed control of fan speeds. The aura-t™ is connected to the HRV via a low voltage connection and can be sited remotely from the unit. -
Page 6: Features 6
The following gives an outline description for each of the product features. The aura-t™ SMART controller expands on these features, adding WiFi control and commissioning via the Titon auraSMART® app. Available from the Play Store or the App Store Programmable Speeds Speed Selection &... -
Page 7: User Interface
User Interface The aura-t™ is operated via a LCD touchscreen. The screen is backlit, the backlight operates when the screen is touched. Menu Tabs The aura-t™ screen has three interactive menu screens which are selected via tabs at the bottom of the touchscreen. -
Page 8: Run Mode 8
Run Mode The aura-t™ controls the HRV unit’s 4 programmable speed settings. This is the Run Mode screen; use the number buttons to select the required fan speed. Press and Hold the [1] button to turn the unit off, just the [1] icon will be displayed;... -
Page 9: Other Icons 9
Fan icon indicates a fan failure has been detected; contact the installer. If very high temperatures are detected inside the HRV, fan failure mode will be enabled to protect the HRV from damage. aura-t™ with auraSMART WiFi Full Connection see page 21 for ®... -
Page 10: Timer Mode
Timer Mode The controller has a seven day, four events per day timer. The timer is used to automatically change the HRV speed to Setback, Speed 1 at programmed times. An additional function of the timer is that when it activates Setback there is an option to engage Boost Inhibit. -
Page 11: Aurasmart® Wifi Timers
3. If the timer is being controlled by the app the timer screen below will be shown. 4. To return to the aura-t™ SMART controller's timers press and hold the Timer Setup button; the controller’s timer has reduced functionality and can only set speed 1. -
Page 12: Home Wifi/Internet Connection - Option 1
In your phone WiFi settings, ensure App Store. your phone is connected to the Open the app, select “HOME WiFi/ same WiFi router as the aura-t™ will INTERNET CONNECTION VIA ROUTER” be connected (not a 3G/4G mobile Click Register to create a new user connection). - Page 13 Input your WiFi router password. A short video is displayed in the app showing the aura-t™ settings Click the settings spanner Once paired the aura-t™ will display the Use the arrow buttons to scroll to full WiFi symbol (not flashing), The status...
-
Page 14: Wifi Direct - Option 2
Use the arrow buttons to scroll to In app, Device List click ADD, then the WiFi connection screen shown scan the QR code on the aura-t™ WiFi above (for info the icon functions are module. given below) In the app, click OK as shown:... -
Page 15: Aurasmart® App Screens
auraSMART® example app screens Run Mode Fan Commissioning Within this section the user When installing any HRV unit, it’s can control the speed of the important to get the air HRV Unit. The current status flow correct as per design of the HRV and any warnings specifications. -
Page 16: Installation
Installation Location The aura-t™ should be mounted in position convenient for the householder and where the supplied control cable will reach. Fixing Un-clip the front of the aura-t™ case from the Back Plate. Thread the control cable through the hole in the Back Plate. -
Page 17: Wiring
Wiring The aura-t™ control cable may be supplied fitted with a plug in connector for connection to the HRV, if the HRV does not have a socket remove the plug and use the wiring diagrams below. MVHR Connection to HRV... -
Page 18: Fan Commission
Fan Commission TP737 is for use exclusively with the HRV3 Q AR Plus Eco (TP412BAR) and displays the fan speeds as m³/hr. All other controllers display fan speed as a percentage. Fan Commission Mode is entered by pressing the Fan Button for 5 seconds whilst in Run Mode. -
Page 19: Cloning
To save the current fan speed to the aura-t™ press and hold the Supply or Extract buttons. The copy icon will be illuminated and Supply when save is tapped the fan speeds will be saved to the aura-t™ and written to the HRV. Extract The aura-t™... -
Page 20: Timer Setup
Timer Setup Timer setup is achieved in three steps 1 Day Selection Tap the Timer Mode tab to enter the Timer Mode menu. Tap the Timer Setup Key to commence setup. A ring around the day selected will blink. Change the day that the timers are to be edited by using the Arrow Keys. - Page 21 2 Select Event & Edit Timers In this example; tapping the Save key will save the settings; these will set the unit to run at Speed 1 between 08:00 & 12:00 Tap the event number to be edited [1-4] from on left hand side of the screen.
- Page 22 3 Copy Timers or Exit Timer Setup The flashing Copy icon indicates the option to copy just edited settings to another day. Tap the Enter Key to commence copy procedure. Tap the Exit key to start editing another day’s times or press a second time to exit to Run Mode.
-
Page 23: Timer Defaults
Timer Defaults Event timings: The Speed 2 cannot be set earlier than Speed 1. ƒ Events where Speed 1 and Speed 2 are identical are ignored by the timer. ƒ Event Days Speed 1 Speed 2 00:00 06:30 08:30 12:00 13:30 18:00 22:30... -
Page 24: Controller Setup
Controller Setup Enter key. Exit Key. Tap the Setup Mode tab to enter the Setup Mode menu. All the editable settings in the Controller Setup menu are accessed in the same way. Menu navigation is achieved by first Setting Selection and then Editing. Setting Selection Arrow keys are used to select a setting, the setting will flash. - Page 25 Kitchen Overrun timer. Wet room Overrun timer. Summer Bypass Setup. Passcode Disable / Enable. aura-t™ with auraSMART WiFi only ® WiFi Direct connection WiFi Network Connection Reset WiFi passcode to factory default & reset connection to WiFi Direct Filter Reset If a filter change is required the reset ring will be flashing.
-
Page 26: Summer Bypass Setup
Summer Bypass Setup Use to adjust value up or down. Enter key. Use the Supply and Extract buttons to select which threshold is to be adjusted. Supply represents from atmosphere air temperature; Supply Extract represents from dwelling air temperature. Extract Tap button[4] to enable / disable SUMMERboost. -
Page 27: Switch Setup Menu
Switch Setup Menu In this Sub-Menu of the Setup Menu the installer can configure the function of the HRV unit’s switch inputs S1, S2, S3, LS1 & LS2 (see HRV Product Manual for details) Enter key. Exit Key. Press and Hold the Setup Mode tab to enter the Switch Setup Mode menu.* Switch Setup menu active. -
Page 28: Maintenance
Maintenance The aura-t™ is maintenance free but will indicate when your heat recovery unit requires maintenance. Please refer to for your heat recovery unit manual for instructions. Cleaning Exterior For best results use a clean damp micro fibre cloth. Do not use abrasive cleaners, waxes, solvents or alcohol based cleaning products;... -
Page 29: Compatibility
WiFi ® Connection Type WiFi Direct Bracketed values refer only to the values displayed by the TP 737 (m³/hr) controller. Compatibility The aura-t™ SMART (WiFi) controller is compatible with HRV units software version FW0027-0206 onwards circa June 2016. -
Page 30: Hrv Ecoaura Defaults
RH Boost Hysteresis When the Humidity of the air being extracted from the property reaches the threshold configured by the aura-t™ the fans switch to Speed 3 Boost. They remain at Speed 3 until the Humidity has dropped below the threshold minus the hysteresis and the RH Boost Overrun time... - Page 31 Configurable Item Range Default Configured Room Sensor 1 Enable/Disable Enabled Disabled Disabled Sensor Type Lower threshold Upper threshold Room Sensor 2 Enable/Disable Enabled Disabled Disabled Sensor Type Lower threshold 800PPM Upper threshold 1400PPM If fitted, Room Sensors are used to provide Demand Control Ventilation based on the environmental parameter they are measuring. Below their lower threshold they have no effect on the ventilation rate;...
