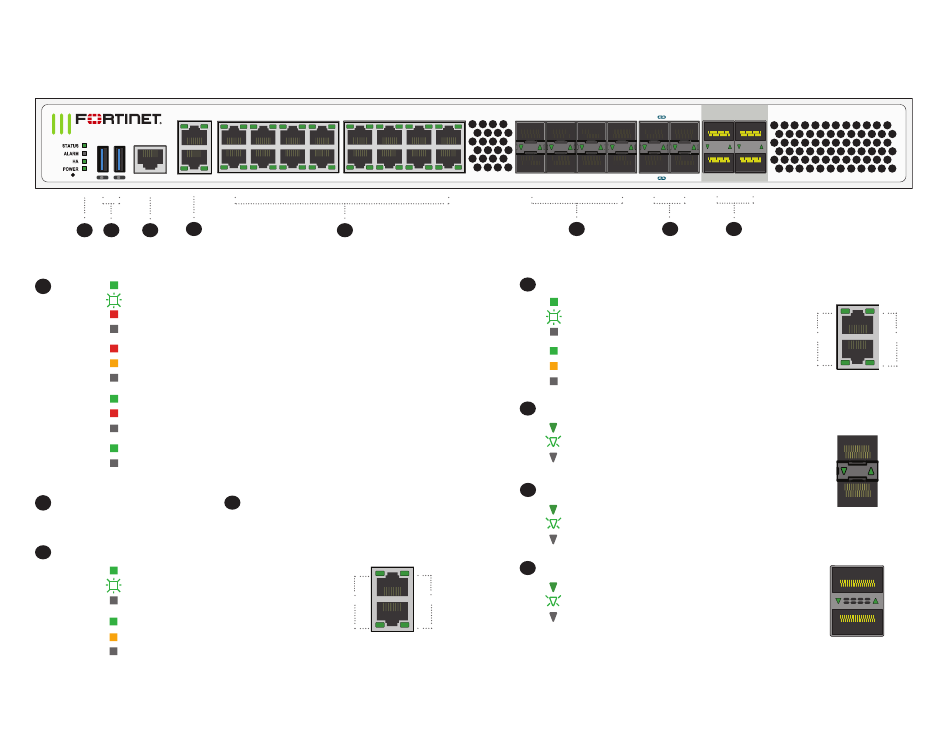

FG-600F Series Front Panel
FortiGate 600F
USB USB CONSOLE
1 2 3
1 STATUS Green: Normal operation
Flashing Green: Booting up
Red: Major alarm
Off: Device is off
Red: Major alarm detected
ALARM
Amber: Minor alarm detected
Off: No errors detected
Green: Operating in an HA cluster
HA
Red: HA failure
Off: HA disabled
Green: Device is on
POWER
Off: Device is off
2 USB x2 (USB A)
USB 3.0 server port
4
HA and MGMT (RJ45)
Green: Link established
LINK/ACT
Flashing Green: Data activity
Off: No link
Green: Connected at 1000 Mbps
SPEED
Amber: Connected at 100 Mbps
Off: Connected at 10 Mbps or not in use
10
HA 1 3 5 7 9
MGMT 2 4 6 8 10
4
5
3 Console (RJ45)
CLI interface
HA & MGMT Ports
FortiGate 3500F
STATUS
LINK/ACT
ALARM
HA
POWER
USB
CONSOLE
11 13 15 17 19
12 14 16 18 20
Ports 1 to 16 (RJ45)
5
LINK/ACT
SPEED
6
Ports 17 to 24 (SFP)
7
Ports X1 to X4 (SFP+)
MGMT1 HA1 1 3 5
8
Ultra Low Latency Ports X5 to X8 (SFP28)
SPEED
MGMT2 HA2 2 4 6
21 23 X1 X3
X5 — ULL — X7
22 24 X2 X4 X6 — ULL — X8
6 7 8
Green: Link established
Flashing Green: Data activity
FortiGate 3500F
Off: No link established
STATUS
ALARM
Green: Connected at 1000 Mbps
HA
Amber: Connected at 100 Mbps POWER
Off: Connected at 10 Mbps or not in use
Green: Connected at 1 Gbps
Flashing Green: Data activity
Off: No link established
X1 and X2 are FortiLink ports
Green: Connected at 10/1 Gbps
Flashing Green: Data activity
Off: No link established
7 9 11 13
Green: Connected at 25/10 Gbps
Flashing Green: Data activity
Off: No link established
8 10 12 14
SFP+/SFP28
RJ45 Ports
MGMT1 HA1
LINK/ACT SPEED
USB CONSOLE MGMT2 HA2
SFP/SFP+ Ports
Bottom Port Top Port
SFP28 Ports
23
15 17 19 21
Bottom Port Top Port
16 18 20 22 24
