Summary of Contents for Ecler essentials eCA120

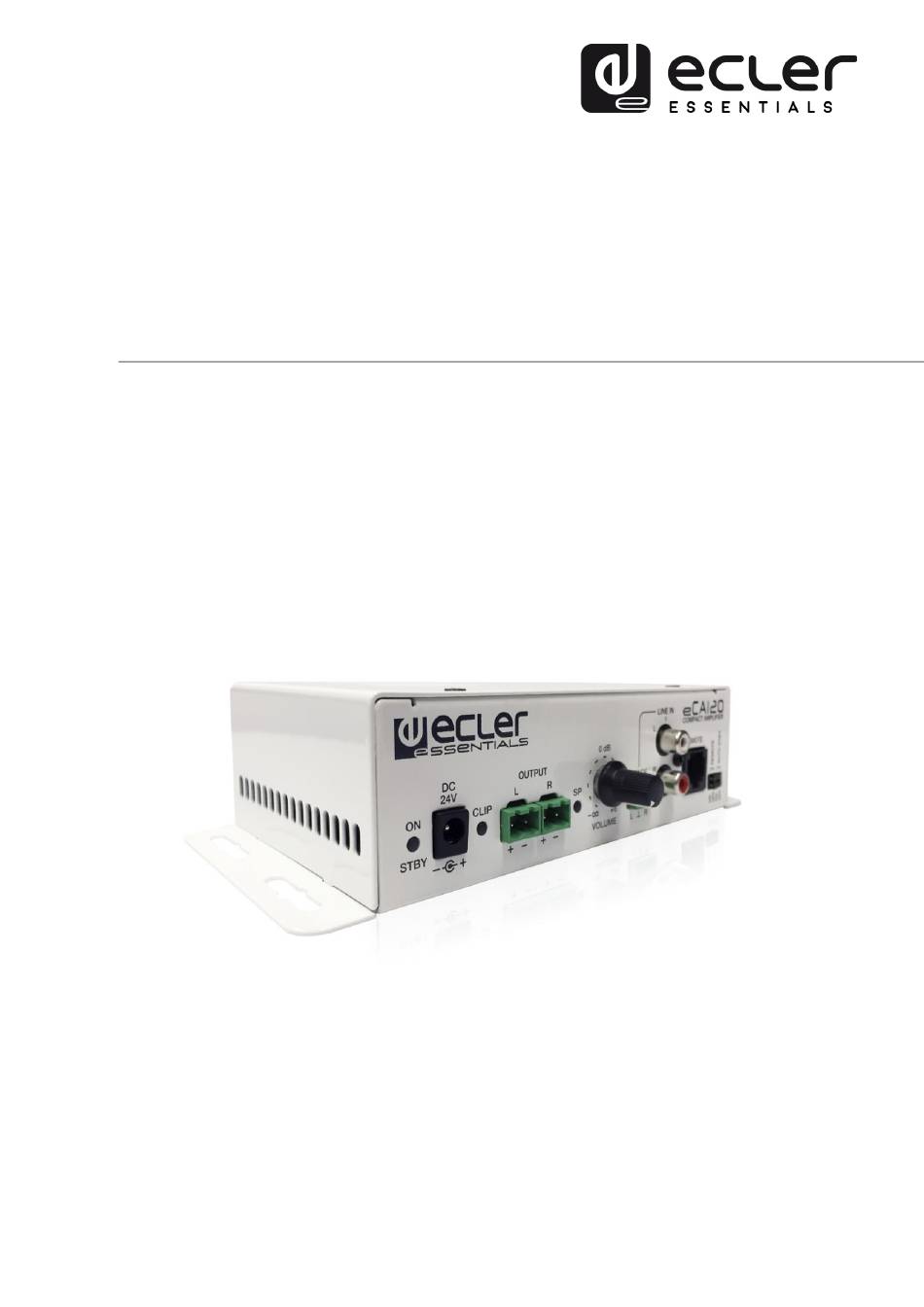

- Page 1 COMPACT AMPLIFIER Stereo Micro-Amplifier USER MANUAL 50-0285-0104 eCA120 EN...
-
Page 2: Table Of Contents
INDEX IMPORTANT REMARK......................3 IMPORTANT SAFETY INSTRUCTIONS ................3 IMPORTANT NOTE ........................5 COMPLIANCE WITH INTERNATIONAL STANDARDS ........... 5 INTRODUCTION ........................6 5.1. Main characteristics ........................6 INSTALLATION.......................... 7 6.1. Location and assembly ......................7 6.2. Mains connection ........................7 6.3. -
Page 3: Important Remark
IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. - Page 4 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety.
-
Page 5: Important Note
Technical Services. Ecler eCA120 comes with a 3-year warranty. COMPLIANCE WITH INTERNATIONAL STANDARDS The eCA120 micro amplifier complies with the following international standards: • EN55103-1 Electromagnetic Compatibility. Product family standard for audio, video, audio-visual and... -
Page 6: Introduction

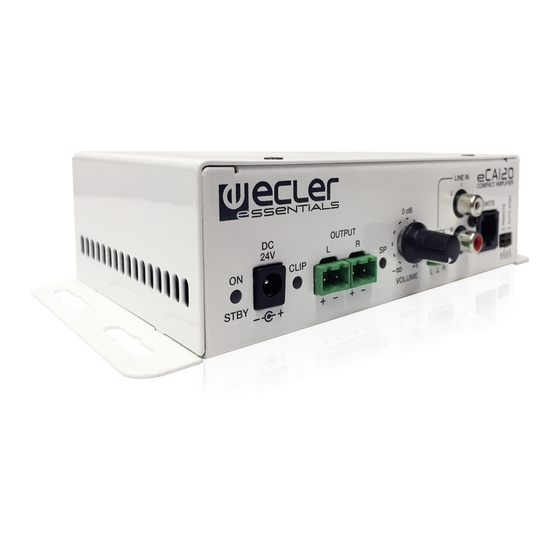

INTRODUCTION The eCA120 is a stereo amplifier with a very small size and a remote control function through a 0-10VDC port; it's an ideal choice for audio-visual applications: school rooms, meeting rooms, multimedia presentations, commercial premises, etc. 5.1. Main characteristics •... -
Page 7: Installation
(micro, line…). This may cause the system to oscillate, damaging the amplifier and speakers. 6.1. Location and assembly The eCA120 is suitable for installation on a wall or under a surface (table, shelf, cupboard, etc.), thanks to its design and layout of its connectors, controls and LED indicator lights. -
Page 8: Audio Input Connections
6.3. Audio input connections The eCA120 input channel only supports stereo line signals (or two mono signals). It has an unbalanced stereo connection with dual RCA connector and 3-pin Euroblock connector (LINE IN / STACK). This input is designed to support -6dBV to 0dBV signals, given that the rotary volume control of the front panel has an extra +6dB of gain at its maximum position. -
Page 9: Operation And Usage
OPERATION AND USAGE 7.1. Start up Start up the eCA120 by connecting the equipment to an external power source to which the DC 24V connector of the eCA120 has already been connected. The LED indicator ON/STBY immediately lights up on the front panel. We recommend you turn on all the devices in the following order: sound sources, mixer, equalisers, active filters and processors and, finally power amplifiers. -
Page 10: Led Indicators
CLEANING The eCA120 must not be cleaned with solvents or abrasive substances which may damage the prints. Clean using a cloth moistened in water and a neutral liquid detergent, then dry with a clean cloth. -
Page 11: Diagram And List Of Functions
DIAGRAM and LIST OF FUNCTIONS ON/STBY on or standby indicator light DC24V power connector CLIP indicator light OUT L / R amplified output SP input signal presence indicator light VOLUME knob Euroblock input line, LINE RCA input line, LINE1 RJ-45, REMOTE connector REMOTE &... -
Page 12: Block Diagram
BLOCK DIAGRAM CONFIGURATION DIAGRAM JUMPERS FACTORY ADJUST AUTO STANDBY REMOTE... -
Page 13: Technical Characteristics
TECHNICAL CHARACTERISTICS eCA120 Power (stereo/mono) 2x56W@4Ω 1% THD 2x68W@4Ω 10% THD 2x34W@8Ω 1% THD 2x41W@8Ω 10% THD Frequency response 15Hz - 30kHz (-3dB) THD+Noise @ 1kHz Full Pwr. SPKR < 0.15% Channel crosstalk @ 1kHz >65dB Inputs Sensitivity nom/Impedance 0dBV/>20kΩ (VOLUME at 0dB) Volume adjust -∞... - Page 14 product characteristics subject variation production tolerances. NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. For technical queries contact your supplier, distributor or complete the contact form on our website, Support / Technical requests.
