www.materm.si tel: 02 608 90 10
TEHNIČNI LIST IN NAVODILA

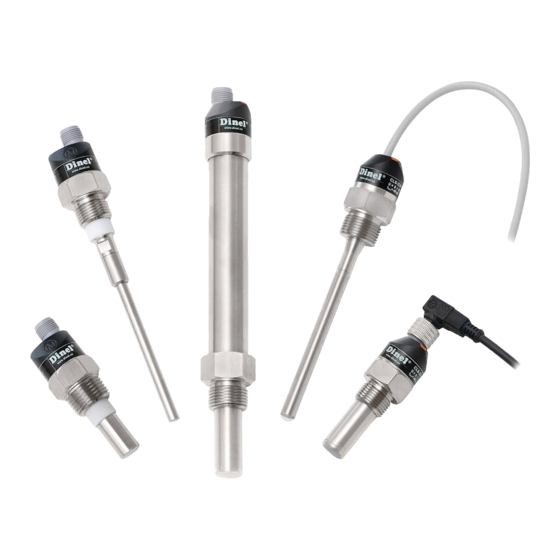

Cls – 23
KAPACITIVNI MERILNIKI NIVJA - SERIJA:
Read carefully the instructions published in this manual before the first use of the sensor. Keep the manual
at a safe place. The manufacturer reserves the right to implement changes without prior notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ClS-23 and is the answer not in the manual?

Questions and answers

Related Manuals for Dinel ClS-23

Summary of Contents for Dinel ClS-23

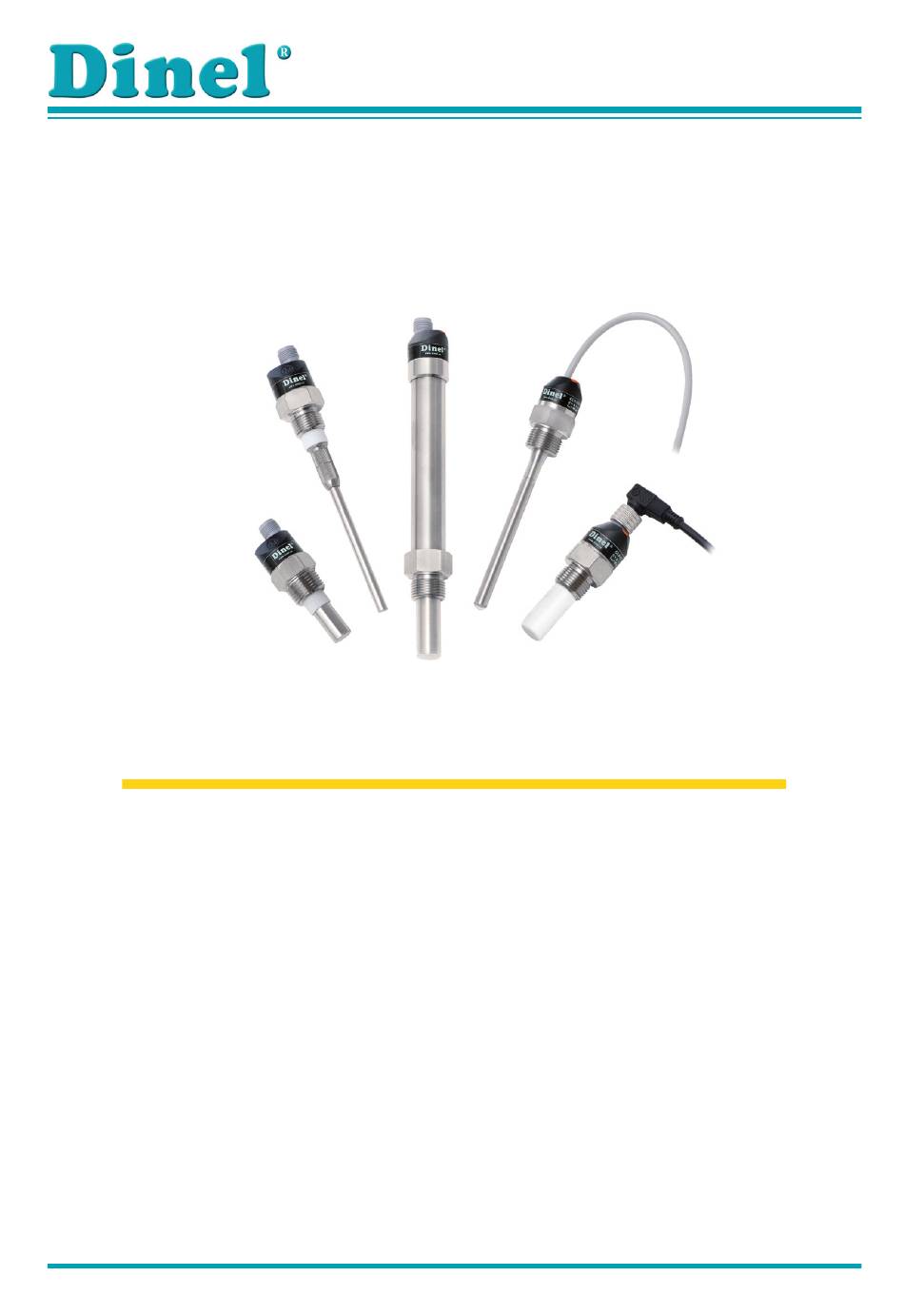

  • Page 1 www.materm.si tel: 02 608 90 10 TEHNIČNI LIST IN NAVODILA Cls – 23 KAPACITIVNI MERILNIKI NIVJA - SERIJA: Read carefully the instructions published in this manual before the first use of the sensor. Keep the manual at a safe place. The manufacturer reserves the right to implement changes without prior notice...

  • Page 3: Table Of Contents

    CONTENT 1  .   Safety ............................4 2  .   Packing, transportation and storage ..................4 3  .   Brief.  ............................5 4  .   Features of variants ........................5 5  .   Dimensional drawings ........................6 6  .   Mounting recommendation  ......................7 7  .   Electrical connection ........................9 8  .   Sensor setting ..........................11 9  .   Status signalization ........................11 10 ...

  • Page 4: Safety

    Sensor variants CLS–23_–20 a 21 with the electrodes longer than 100 mm are fitted with protective caps at the ends of the electrodes to prevent damage of the electrodes, box rupture or injury of handling persons. Before commissioning, remove the caps. CLS–23 © Dinel, s.r.o.

  • Page 5: Brief

    CLS –23_ –21   Fully insulated rod electrode, for universal use, for level detection of con      ductive liquids (water, water solutions). Resistant to vapours (water) conden      sation in the sensing area and partially resistant to medium    spraying. The insulation is made from FEP. Vertical mounting; horizontal         mounting (from the side) is possible for shorter electrodes (up to 200 mm).    Electrode length from 50 mm to 1 m. CLS –23_ –30   Uncoated removable rod electrode, for level detection of conductive and       non-conductive liquids. Vertical mounting; horizontal mounting (from the         side) is possible for shorter electrodes (up to 200 mm).   Electrode length from 50 mm to 1 m. © Dinel, s.r.o. CLS–23...

  • Page 6: Dimensional Drawings

    High temperature variants Variant „C“ with connector (except CLS–23N, NT, Xi, XiT) (CLS–23_T–10; 12; 20; 21; 30) Variant „A“ with cable outlet Electrode type according Magnetic pen MP–8 to specific variants * Variant „E“ without LED state indicator CLS–23 © Dinel, s.r.o.

  • Page 7: Mounting Recommendation

    6 .  m   oUnting recommendation CLS-23 level sensors can be fixed in a vertical, horizontal or bevelled position into the shell of the  vessel, the storage tank for the fixation console in the pit, by screwing into the welding flange, using  a fixing nut or NPT process connection. Basic application recommendations are mentioned below.    During assembly into the metal tank or the storage tank, it is not necessary to separately ground the base of the level sensor. In the case of installation in concrete tanks or silos, it is recommended to install a level sensor on the auxiliary metal construction (console, cap, etc.) and to then connect it...
  • Page 8 Fig. 4: Two state regulation by hysteresis setting >5 WRONG CORRECT CORRECT WRONG Sensor installation close to inlet hole, in a narrow  neck or using improper  welding flange may result in  WRONG malfunction of the sensor.  Suitable  welding  flanges  can  be  found  in  the  Dinel  assortment, types ON, NN – see Accessories. CORRECT Applies to: All variants Fig. 5: Long fitting tubes in side wall mounting CLS–23 © Dinel, s.r.o.

  • Page 9: Electrical Connection

    Sensors with output type „R“ are designed for interconnect to intrinsically safe supply units. In case of strong ambient electromagnetic interference, paralleling of conductors with power distribu- tion, or for the distribution to distance over 30 m, we recommend to use shielded cable. © Dinel, s.r.o. CLS–23...
  • Page 10 (terminals + and – oscillate together towards the ground potential), or the interference is removed in another manner. CLS–23 © Dinel, s.r.o.

  • Page 11: Sensor Setting

    Types CLS–23_–10; –20; –30 are set to detect mineral oil, CLS–23_–11; –12; –21 to detect water.  The mode O is set (sensor closes when immersed).  9 .  s     (only with LED state indicator variant) tatUs signalization Indicator Function Continuous light – Sensor is closed (switched ON) Dark – Sensor is open (switched OFF) Orange LED Rapid flashing (period 0.2 s) – Unrecognized upper and lower limits or setting mistake Slow flashing (period 0.8 s) – Short circuit at sensor output © Dinel, s.r.o. CLS–23...

  • Page 12: Accessories

    For binary inputs, we recommend to set the filter so as not to respond to pulses shorter than 3 ms. Units Dinel NSSU, NDSU a NLCU with transistor switch („T“) detects and transmitts these pulses to the output.

  • Page 13: Order Code

    (S) 2-wire electronic switch; (M18) Process connection with metric thread M18x1.5; (E320) Electrode length 320 mm. CLS–23Xi–11–C–R–NPT (Xi) Intrinsically safe for hazardous areas; (11) Insulated (coated) short bar (PP) electrode 30 mm (C) Electrically connection with connector; (R) NAMUR output type; (NPT) Process connection with sealing thread 1/2 – 14 NPT. © Dinel, s.r.o. CLS–23...

  • Page 14: Safety, Protections, Compatibility And Explosion Proof

    15 .  g       eneral conditions warranty Dinel, s.r.o. guarantees for the period of three (3) years that the product has the characteristic as in  technical specification is mentioned. The guarantee can be invoked only when the product is com- pleted by original invoice and guarantee list. This guarantee does not cover the damages resulting  from misuse, improper installation or incorrect maintenance. CLS–23 © Dinel, s.r.o.

  • Page 15: Marking Of Labels

    FTZÚ 12 ATEX 0106X L = 10uH t = -20 ... +75 °C CLS-23XiT-__-_-R-____ E____ No.:______ Štítek pro CLS-23XiT-10(30)- 1026 Symbol of producer: Dinel logo CLS-23Xi-__-_-R-____ E____ ® II 1/2G Ex ia IIC T6 Ga/Gb U = 12V I = 15mA No.:______...

  • Page 16: Specifications

    N, E, NT Metric thread M20 x 1,5 PNP („P“) N, E, NT Pipe thread (BSP) G 3/8'' G3/8 NAMUR („R“) Xi, XiT G1/2 Pipe thread (BSP) G 1/2'' Sealing thread 1/2–14   aterial PerFormance Sensor part Variants Material Housing All variants Plastic PP Process coupling All variants Stainless steel W.Nr. 1.4305 (AISI 303) Electrode All variants Stainless steel W.Nr. 1.4305 (AISI 303) Electrode insulation CLS–23_–11 Plastic PP Electrode insulation CLS–23_–12, 20, 21 Plastic FEP CLS–23 © Dinel, s.r.o.
  • Page 17 -30°C ... +150°C * -25°C ... +105°C 8 MPa 6 MPa 5 MPa – – CLS–23NT–30 -30°C ... +150°C -30°C ... +150°C -20°C ... +80°C 8 MPa 6 MPa 5 MPa 4 MPa 3 MPa * Valid for top mounting (in vertical position) © Dinel, s.r.o. CLS–23...
  • Page 18 5 MPa 4 MPa 3 MPa * Valid for top mounting (in vertical position) – Ambient temperature range (on housing) – Temp. in process connection place – Medium operating temp Variants: Variants: N; E; Xi; NT; XiT; CLS–23 © Dinel, s.r.o.
  • Page 20 industrial electronics Materm d.o.o. 2313 Fram Tel.: 02 608 90 10 Fax: 02 608 90 18 E-mail: info@materm.si www.materm.si The latest version of this instruction manual can be found at www.materm.si Version: 10/2013...
