Dinel RFLS–35 Manual

průmyslová elektronika
H -
igH frequency limit level sensor witH elimination
of deposits and foam on tHe electrode
• Designed for reliable limit sensing of the level height of
wide-ranging fluids, mashed and paste-like materials
• Resistant to adhesion of viscous and sticky media
(ketchup, yoghurt, spreads, syrups, creams, pastes,
cleaning agents, alkalis, etc.)
• Replacement of a vibrating level sensor
• Direct mounting into tanks, vessels, sumps, pipes or
funnels and containers
• Settings using the magnetic pen
• Universal design for all types of fluids (electrically
conductive and non-conductive)
• High stability at high sensitivity (possible to use for
ε
substances with
r

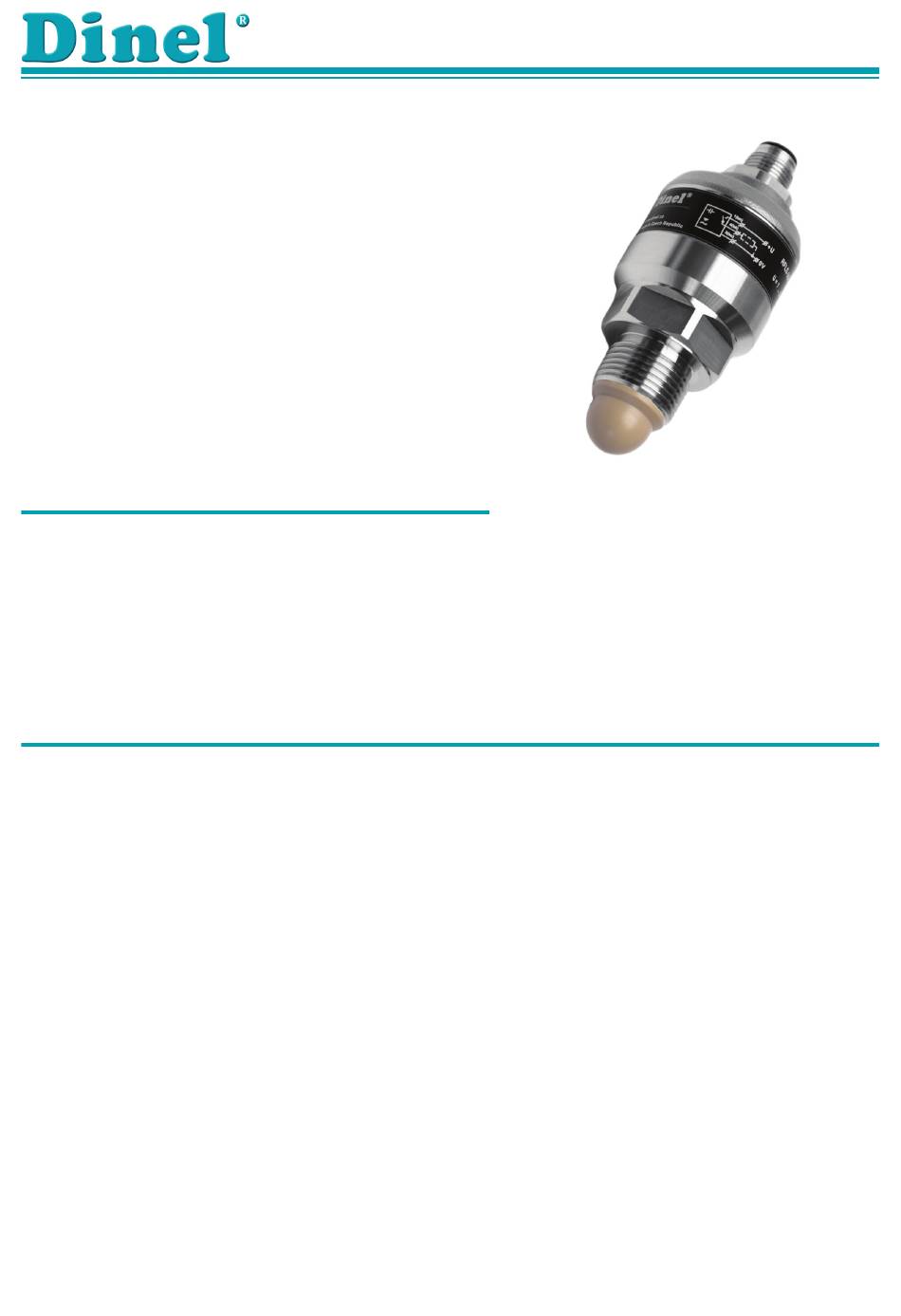

The Capacity level sensor RFLS–35 is designed for industrial use for limit sensing of the level of fluid and paste-like media. The
high-frequency level sensor may be a direct replacement of a vibrating level sensor, or of a capacity level sensor in case of more
demanding applications. The media may be electrically conductive and non-conductive with any permittivity. It can be installed in metal
or plastic tanks, pipes, filling tanks, sumps, etc. The sensor is comprised of a stainless steel housing AISI 316L at one end terminated
by a sensing electrode made from PEEK material, and terminated at the other end by a stainless steel ending with status indicator,
control elements and electrical connection. It is designed for mounting into the wall of a tank or pipe, in which the actual ascertain-
ing of the level will take place. The sensor works in the high frequency band, enabling reliable detection of the level of media, and
eliminating deposits or foam on the electrode. The sensor suppresses the influence of deposits of viscous media (ketchup, yoghurt,
pastes, syrups, jams and jellies, creams, soap) as well as electrically conductive adhesive products (detergents, alkalis, chemicals).
v
ariants of sensors
RFLS–35_–1B Insulated electrode (PEEK) with sealing O-ring NBR, for sensing various fluids, mashed and paste-like
materials, appropriate also for fuel, oil or methanol, use from minimum temperature of -40°C
RFLS–35_–1E Insulated electrode (PEEK) with sealing O-ring EPDM, for sensing various fluids, mashed and paste-
like materials, appropriate also for acids, bases or alcohol, ammonia, acetone, chlorine, from minimum
temperature of -40°C
RFLS–35_–1V Insulated electrode (PEEK) with sealing O-ring Viton, for sensing various fluids, mashed and paste-
like materials, appropriate also for fuel, oil, acids, bases or asphalt, tar, toluene, use from minimum
temperature of -20°C
≥ 1.5)
H -
igH frequency limit level sensor
rfls–35
RFLS-35-dat-1.6
