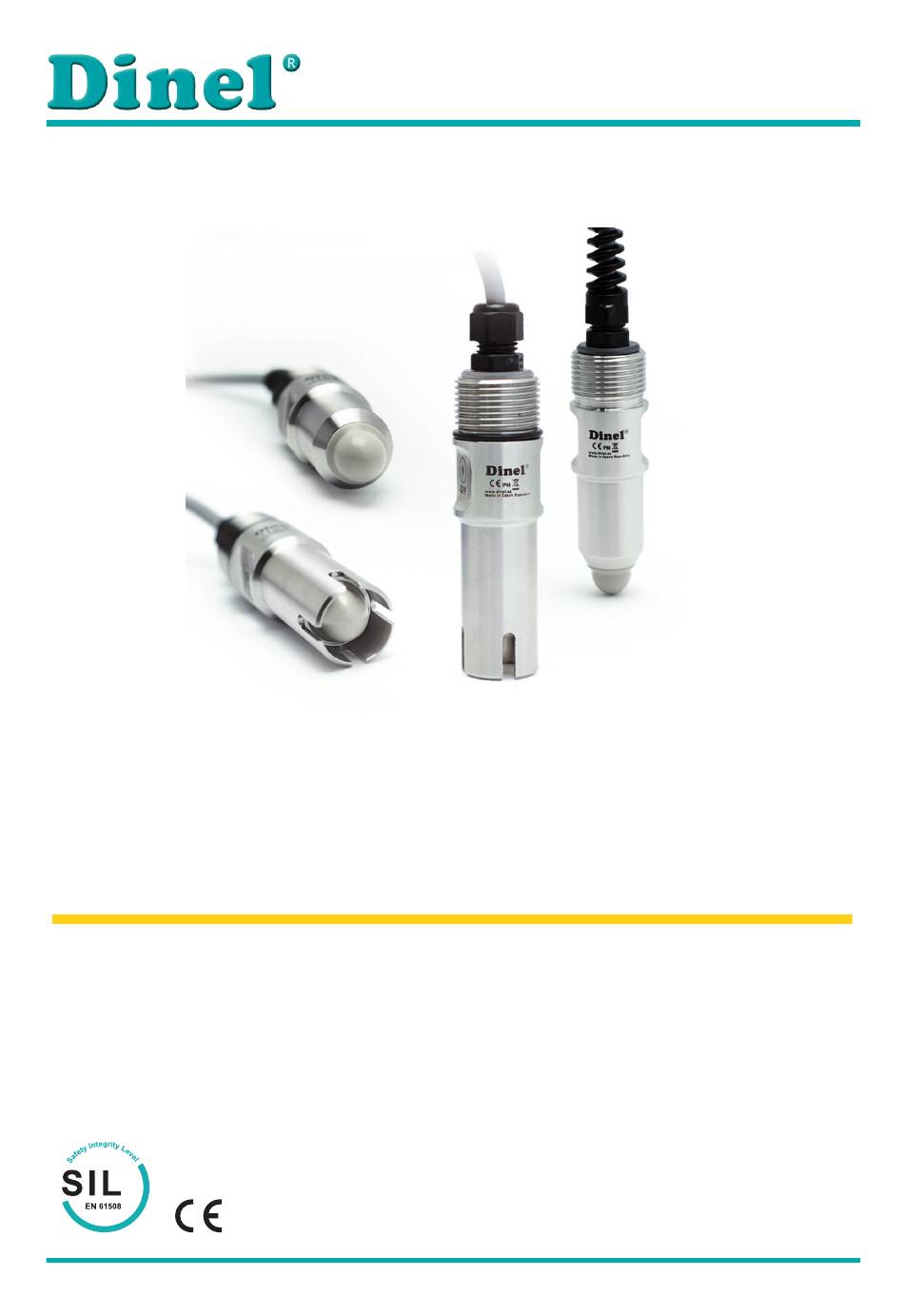

INSTRUCTION MANUAL
High-frequency
limit level sensor RFLS – 28
Read carefully the instructions published in this manual before the first use of the level meter . Keep the manual
at a safe place. The manufacturer reserves the right to implement changes without prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RFLS-28 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dinel RFLS-28

Summary of Contents for Dinel RFLS-28

  • Page 1 INSTRUCTION MANUAL High-frequency limit level sensor RFLS – 28 Read carefully the instructions published in this manual before the first use of the level meter . Keep the manual at a safe place. The manufacturer reserves the right to implement changes without prior notice.

  • Page 3: Table Of Contents

    CONTENTS Basic description ........................5 Variants of sensors ........................5 Dimensional drawings ......................6 Installation and putting into operation .................7 Electrical connection ........................7 Settings ............................8 6. 1. Quick settings ......................8 6. 2. Basic settings ........................9 6. 3. Settings “Medium window” - media resolution function ........10 6.
  • Page 4 The manufacturer is not responsible for improper use, loss of work caused by either direct or indirect damage, and for expenses incurred at the time of installation or during the period of use of the sensor. RFLS–28 © Dinel, s.r.o.

  • Page 5: Basic Description

    The sensor can be set by applying a magnetic pen to sensitive surfaces, or by means of a program- ming wire (variant RFLS-28 _-_-_- PD -_- MW). For sensors with the possibility of remote param- eterization, only basic settings (resolution of two interfaces) can be performed. A special evaluation unit SSU-1212-AD must be used for remote parameterization of the sensor.

  • Page 6: Dimensional Drawings

    - in the case of increased - for use in an outdoor area with standard mechanical wear on the cable. or in area with high humidity. cable gland protecting hose (ø 13 mm) Spiral relief RFLS–28 © Dinel, s.r.o.

  • Page 7: Installation And Putting Into Operation

    A sensor with PNP output can be loaded only by resistive or inductive load. The capacitative loads and low resistance loads (bulb) are evaluated by the sensor as a short circuit. Connection diagrams are listed in Figure below. The RFLS-28 sensors are connected to evaluation units permanently by a PVC cable. Legend: BK – black BN –...

  • Page 8: Settings

    The settings must be made before installing the sensor in the TN-28 tubular extender.. When setting up the RFLS-28 sensor, it is necessary to monitor the signalling of both LEDs, there- fore it is necessary to make settings before installing the sensor in the tank.

  • Page 9: Basic Settings

    A faulty sensor or wiring will take effect here in the same way as level emergency conditions by opening the sensor. Analogously, for the maximum level it is recommended to set the mode “C” (the sensor opens when submerged). © Dinel, s.r.o. RFLS–28...

  • Page 10: Settings "Medium Window" - Media Resolution Function

    The sensor is now set to mode C (opens when submerged in the required medium). 3. Check the state of indicators: • If the orange LED is dark and the green LED flashes, the sensor is correctly set. RFLS–28 © Dinel, s.r.o.

  • Page 11: Setting Using The W Programming Wire

    “SET CH OFF / ON” switch • OFF position– the setting function of the sensor connected to the IN terminal (No. 3) deactivated • ON position – the setting function of the sensor connected to the IN terminal (No. 3) activated © Dinel, s.r.o. RFLS–28...
  • Page 12 1. Immerse the sensor electrode in the medium to be measured. 2. Switch the SET CH a SET switches to the ON position 3. Press the setting button (SETTING). Settings are confirmed by three flashes of the orange LED. RFLS–28 © Dinel, s.r.o.
  • Page 13 6. Press the setting button (SETTING). Settings are confirmed by three flashes of the orange LED. 7. Check the state of the ALARM indicator. If the red LED is not flashing, the sensor is set cor- rectly. If it is flashing, the sensor is set incorrectly. Repeat the setting. © Dinel, s.r.o. RFLS–28...
  • Page 14 A faulty sensor or wiring will take effect here in the same way as level emergency conditions by opening the sensor. Analogously for the max. level, we recommend you to set the "C" mode (sensor opens when submerged). RFLS–28 © Dinel, s.r.o.

  • Page 15: Setting Elements

    7. Setting elements The RFLS-28 switch can be set in two ways, namely using the magnetic pen M (variants RFLS-28_- _-_-P-_-M, RFLS-28_-_-_-PD-_-M a RFLS-28_-_-_-PD-_-MW) or the programming wire W (vari- ant RFLS-28_-_-_-PD_MW). Remote parametrization only allows basic settings (interface of two media).

  • Page 16: Function And Status Indication

    • If the sensor is set up, you will proceed to its installation in the TN-28 extension tube. • First, the cable is passed through the extension tube and then the RFLS-28 sensor is screwed into the pipe. • The complete assembly with the selected process connection is attached to the tank.

  • Page 17: Sensor Variant With Output "Pd" With Diagnostic

    OUTPUT: a 300 μs wide pulse with a period of 20 ms is generated into the output signal SENSOR STATUS: the measuring curve is OK, but the sensor setting is incorrect (decision levels are close to each other) © Dinel, s.r.o. RFLS–28...

  • Page 18: Evaluation Unit

    LED – when applying the mag. pen, when the setting is confirmed periodic extiction (0,1 s) in closed mode - diagnosed function error periodic lighting (0,1 s) in open mode - diagnosed function error RFLS–28 © Dinel, s.r.o.

  • Page 19: Order Code

    CABLE cable length in m AVAILABLE VARIANT RFLS-28 N - - G¾ - OF THE PRODUCT 1) The evaluation units SSU-1212-D and SSU-1212-AD are used to evaluate the diagnostic signal. For the variant with the possibility of remote parameterization, it is necessary to use the evaluation unit SSU-1212-AD.

  • Page 20: Accessories

    (NBR, EPDM, FPM/ in the Viton), (1 pc) price TN-28-P (flange) TN-28-Z (G1“ at extra extension tube thread) cost TN-28-Cl (Tri- Clamp) at extra cable over 2 m cost protecting hose (for at extra cable gland H) cost RFLS–28 © Dinel, s.r.o.

  • Page 21: Safety, Protection And Compatibility

    Assembly, installation, commissioning, service and maintenance of the RFLS–28 level sensor must be carried out in accordance with this manual and the provisions of valid standards for the installation of electrical equipment must be complied with. © Dinel, s.r.o. RFLS–28...

  • Page 22: Putting Out Of Operation Or Disposal

    Write a description of the fault as detailed as possible, attach also a detailed description of the application and of the installation location and everything together with the sensor send please to the address of Dinel s.r.o. company. • Please provide maximum synergy in finding the root cause of the fault. Your satisfaction is our top priority! 16 .

  • Page 23: General Conditions And Warranty

    I = 5 mA www.dinel.cz = 300 mA Made in Czech Republic omax t = -40 ... +80 °C Symbol of producer: Dinel logo ® Internet address: www.dinel.cz Country of origin: Made in Czech Republic Level meter type: RFLS–28N–_–_–P-_ Cable length: Cable: _ _ m Serial number of the product: No.: _ _ _ _ _ - (from the left: production year, serial production number)

  • Page 24: Technical Specifications

    O-ring seal RFLS-28_-1E, 10E EPDM RFLS-28_-1V, 10V FPM (Viton) Cable gland (variant “B”, “V”, “H”) PA / NBR plastics Verify chemical compatibility with the media. Upon agreement it is possible to select a different type of material. RFLS–28 © Dinel, s.r.o.
  • Page 25 Mechanical performance and area classification (EN 60079-0, EN 60079-10-1) Sensor electrode type Device classification performance RFLS – 28N All types Basic performance for use in non-explosive areas. Factory default switching mode O (closes when submerged) sensitivity for water sensing © Dinel, s.r.o. RFLS–28...

  • Page 26: Packing, Shipping And Storage

    Store the device in its original packaging in dry areas covered from weather conditions, with humidity of up to 85 % without any effects of chemically active substances. The storage temperature range is -10°C to +50°C. RFLS–28 © Dinel, s.r.o.
  • Page 28 Dinel, s. r. o. U Tescomy 249 760 01 Zlín Czech Republic phone: +420 577 002 002 e-mail: sale@dinel.cz www.dinel.cz Find the updated version at www.dinel.cz version: 08/2017 01/2021...
