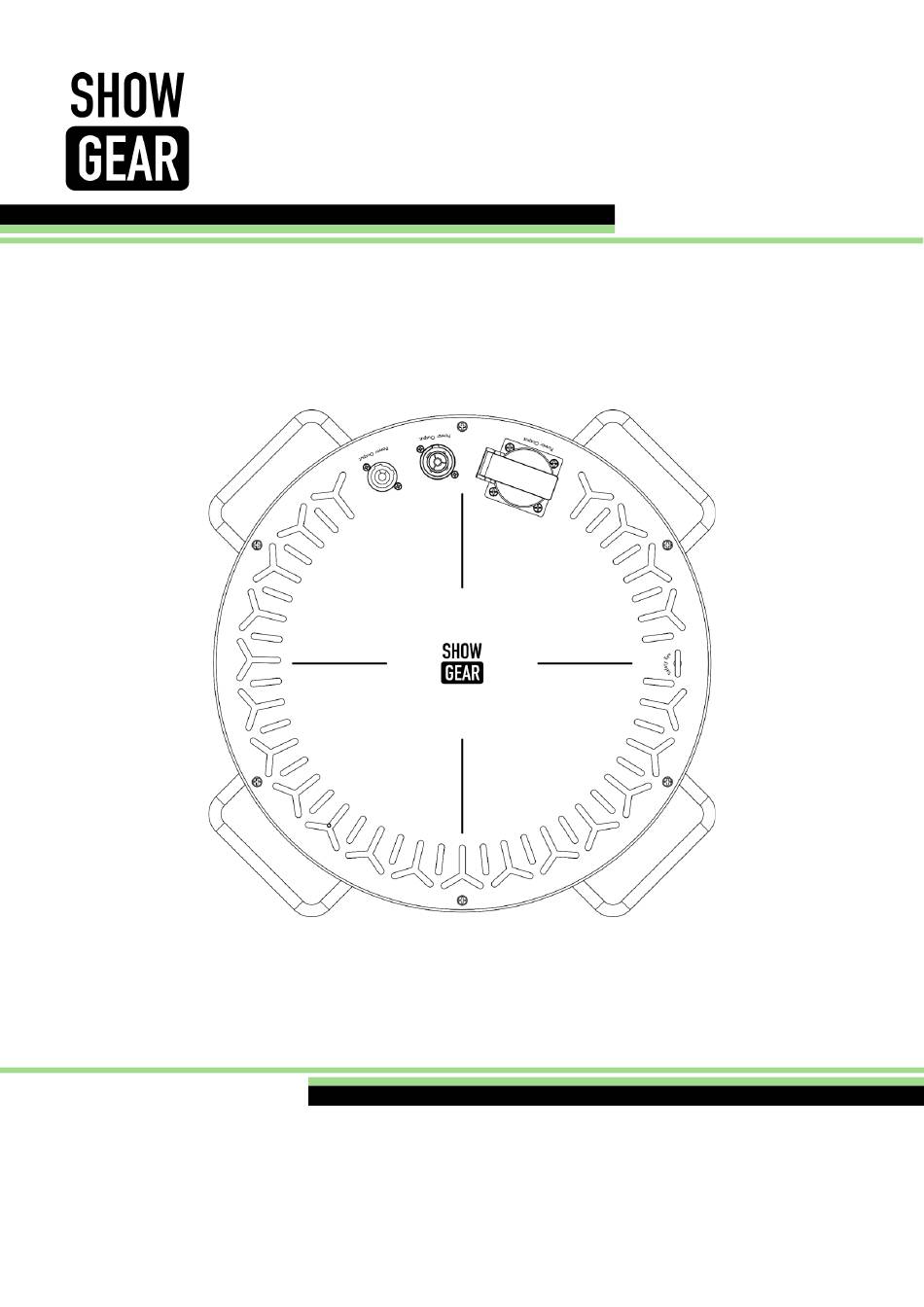

- Page 1 USER MANUAL ENGLISH RainDome 40 cm Product code: 71325 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 RainDome 40 cm Preface Thank you for purchasing this Showgear product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
RainDome 40 cm Table of contents Introduction ................................3 Before Using the Product ..........................3 Intended Use ............................... 3 Product Lifespan ..............................3 Text Conventions ..............................3 Symbols and Signal Words ..........................4 Symbols on the Information Label ........................4 Safety .................................. -
Page 4: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: Showgear RainDome 40 cm Schuko to pro power True1 power cable (1,5 m) User manual Fig. 01 Intended Use This device is intended for professional use as a rain cover platform for stage luminaires. -
Page 5: Symbols And Signal Words
RainDome 40 cm Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER death or serious injury. -
Page 6: Safety
RainDome 40 cm Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions... - Page 7 RainDome 40 cm Attention Power supply Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device. Make sure that the cross-sectional area of the extension cords and power cables is sufficient for the required power consumption of the device.
-
Page 8: Requirements For The User
RainDome 40 cm Attention Do not expose the device to conditions that exceed the rated IP class conditions. This device is IP20 rated. IP (Ingress Protection) 20 class provides protection against solid objects greater than 12 mm, such as fingers, and no protection against harmful ingress of water. -
Page 9: Description Of The Device
RainDome 40 cm Description of the Device The Showgear RainDome 40 cm is a rain cover platform for stage luminaires with a maximum diameter of 40 cm. The device protects stage luminaires from rainfall which makes it possible to use indoor stage luminaires outdoors. -
Page 10: Bottom Plate View
RainDome 40 cm Bottom Plate View Fig. 04 4 x mounting holes (M12) Air intake Bypass switch (See 5.9. Using the Bypass Function on page 19) 2 x safety eyes 4 x rubber feet Product Specifications Model: RainDome 40 cm... -
Page 11: Accessories
RainDome 40 cm 3.5. Accessories Attention The device is designed to be operated with the plastic sleeve installed. The device is delivered without a plastic sleeve. Refer to 5.2. Compatibility of the Device on page 15. There is 1 plastic sleeve available for this device: ●... -
Page 12: Installation
RainDome 40 cm Installation Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing. - Page 13 RainDome 40 cm To mount the device to a totem truss you need the following items: ● 4 x half connectors (A) (including washers (B) and bolts (C)). See 3.5. Accessories on page 10, for more information. ● 4 x conical pins (D) (Not included. Refer to your totem truss dealer for availability.) ●...
- Page 14 RainDome 40 cm Tighten the bolts with a hex key (8 mm) as shown in Fig. 10. Fig. 10 Put the device on the truss, so that the half connectors (A) fit in the tubes of the truss, as shown in Fig. 11.
-
Page 15: Setup And Operation
RainDome 40 cm Secure the device with a secondary suspension, for example a safety cable as shown in Fig. 13. Put the safety cable through the safety eye (13). Note: Make sure that the secondary suspension can hold 10 times the weight of the device. -
Page 16: Compatibility Of The Device
RainDome 40 cm Attention Connect all cables before supplying power. Disconnect power supply before connecting or disconnecting cables. Compatibility of the Device This device can be used only with stage luminaires that have: ● a maximum diameter of 40 cm ●... -
Page 17: Setup
RainDome 40 cm Setup To complete the setup of the device, follow the steps below: Install the device. See 4. Installation on page 11 for more information. Connect a stage luminaire. See 5.4. Connecting a Stage Luminaire to the Device on page 16 for more information. -
Page 18: Installing The Plastic Sleeve
RainDome 40 cm Installing the Plastic Sleeve Attention The device is designed to be operated only with the plastic sleeve installed. This device can be fitted with the Cylindrical sleeve for Rain Dome 40 (71326), for stage luminaires with a maximum height of 52 cm. -
Page 19: Connecting To Power Supply
RainDome 40 cm Connecting to Power Supply When the device is connected to power supply, the device is in operation. The fan starts rotating and the installed plastic sleeve becomes inflated. DANGER Electric shock caused by short-circuit The device accepts AC mains power at 220–240 V and 50 Hz. Do not supply power at any other voltage or frequency to the device. -
Page 20: Operation
RainDome 40 cm Operation When the device is connected to power supply, the device is in operation. The fan starts rotating and the installed plastic sleeve becomes inflated. ● To turn the device on, connect the device to power supply. See 5.6. Connecting to Power Supply on page 18 for more information. -
Page 21: Troubleshooting
Probable cause(s) Solution Check if power is switched on and No power to the device cables are plugged in Return the device to your Showgear The device does not Internal fuse is blown dealer function at all The power supply settings do not Disconnect the device. -
Page 22: Basic Cleaning Instructions
RainDome 40 cm ● There are no deformations on housings, fixations and installation points. ● The power cables are not damaged and do not show any material fatigue. Basic Cleaning Instructions To clean the device, follow the steps below: Disconnect the device from the electrical power supply. -
Page 23: Disposal
RainDome 40 cm Disposal Correct disposal of this product Waste Electrical and Electronic Equipment This symbol on the product, its packaging or documents indicates that the product shall not be treated as household waste. Dispose of this product by handing it to the respective collection point for recycling of electrical and electronic equipment. - Page 24 ©2022 Showgear...
