Summary of Contents for Showgear COMBO 8

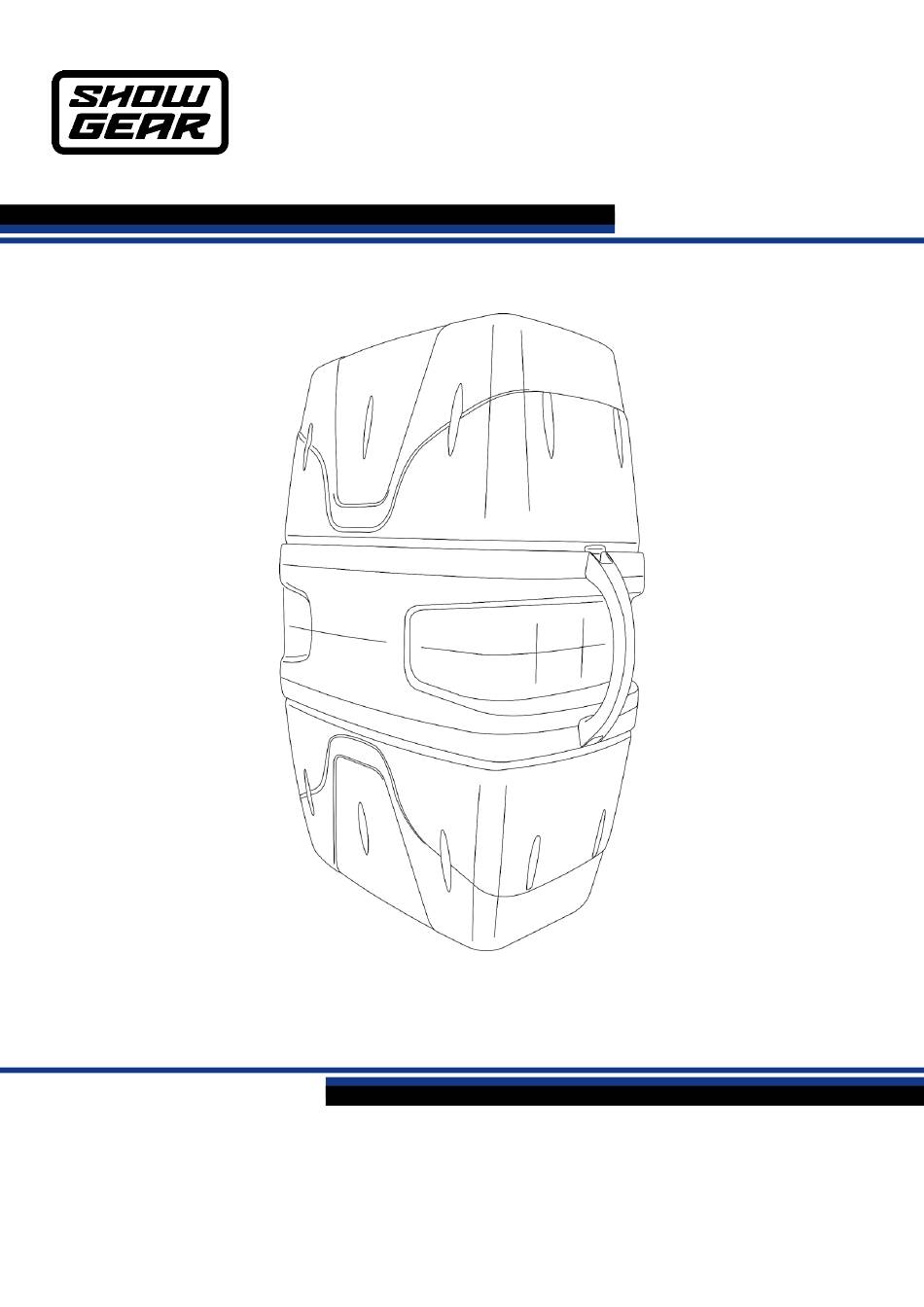

- Page 1 MANUAL ENGLISH Combo 8, 8” Portable Soundsystem Ordercode: 935000 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Combo 8, 8” Portable Soundsystem Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Connection with the mains............................4 Return Procedure ................................5 Claims ....................................5 Description of the device ..............................6 Features ..................................6 Overview –... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Showgear Combo 8, 8” Portable Soundsystem ● IEC power cable (1,5 m) ●... - Page 4 Combo 8, 8” Portable Soundsystem IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the system. ● Always let the device cool down before cleaning or servicing.
-
Page 5: Operating Determinations
Combo 8, 8” Portable Soundsystem ● Sometimes, when you want to send one signal to more than one amplifier, you should use a signal distributor. ● The best way to avoid ground loops is connecting the electrical system ground to one central point ("star"... -
Page 6: Return Procedure
Combo 8, 8” Portable Soundsystem Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 7: Description Of The Device
Description of the device Features The Combo 8 is a complete plug-and-play audio system. It comes with two 8” speakers and a complete mixer with a built-in amplifier, offering 150W of digital power to your speakers. It is delivered with one wired microphone. -
Page 8: Overview - Speakers
Combo 8, 8” Portable Soundsystem Overview – speakers Fig. 02 Ordercode: 935000... -
Page 9: Names And Functions
Combo 8, 8” Portable Soundsystem Names and Functions Mixer Fig. 03 CH1/CH2 treble control Turn the control to set the treble level. CH1/CH2 bass control Turn the control to set the bass level. CH1/CH2 reverb control Turn the control to set the reverb level. - Page 10 Combo 8, 8” Portable Soundsystem Fig. 04 USB/SD/Tuner volume control Turn the control to set the volume for USB/SD/Tuner operation modes. CH3/CH4 stereo volume control Turn the control to set the volume for CH3/CH4. CH3/CH4 6,3 mm jack mono connectors left/right – line level IN Connect a line level device.
- Page 11 Combo 8, 8” Portable Soundsystem Fig. 05 SD card slot Insert an SD card, containing music files (mp3/wav). MODE button Press the button to select one of the 4 operation modes: Tuner (FM), USB, SD, Bluetooth. Play/Pause button Press the button to start/pause playback (USB/SD mode) or start auto tuning (Tuner mode).
-
Page 12: Speakers
Connect the speaker to the included Combo mixer. Installation Remove all packing materials from the Combo 8, 8” Portable Soundsystem. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 13: Set Up And Operation
Combo 8, 8” Portable Soundsystem Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. The power supply is printed on the back of the device. Do not attempt to operate an 115V specification product on 230V power, or vice versa. -
Page 14: Usb/Sd Mode
Combo 8 speaker and your Bluetooth device have been successfully paired. 05) Play music on your Bluetooth device and it will be audible on the Combo 8 speaker. 06) Only one Bluetooth device can be paired with one Combo 8 speaker. -
Page 15: Connection Example
Combo 8, 8” Portable Soundsystem Tips For Achieving Maximum Performance ● Keep the distance between the paired Bluetooth devices as short as possible. ● Avoid placing the Bluetooth devices near metal surfaces and obstructions. ● Perform a walk-through before performance or presentation. If dead spots are found, adjust the location of the Bluetooth devices. -
Page 16: Connection Cables
Combo 8, 8” Portable Soundsystem Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 17: Maintenance
Combo 8, 8” Portable Soundsystem Maintenance The Showgear Combo 8, 8” Portable Soundsystem requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. -
Page 18: Product Specifications
Combo 8, 8” Portable Soundsystem Product Specifications Power supply: 90-250V AC, 50Hz Woofer size: 8” Horn driver: 1” Horn coverage: 90º H x 45º V Continuous power: 150W (2 x 75W) Frequency response: 20Hz - 18kHz SPL @1m: 96dB +/- 2dB Connections: RCA IN;... -
Page 19: Dimensions
Combo 8, 8” Portable Soundsystem Dimensions Ordercode: 935000... - Page 20 ©2018 Showgear...
