- Page 1 Sonix Pm10 Technical Manual SONIX Pm10 Power Management Unit...
-
Page 2: Table Of Contents
9 MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 SONIX Pm10 TECHNICAL mANUAL TM365-1 / A June 2022 www.eaton.com... - Page 3 TABLE 10 . MEASUREMENT INDICATION LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 SONIX Pm10 TECHNICAL mANUAL TM365-1 / A June 2022 www.eaton.com...
-
Page 4: Introduction
1.2 About the product potentially hazardous industrial environments. Prior to undertaking any work please ensure relevant permits Sonix Pm10 is a compact 19” 1U design unit, housing and regulations are adhered to. the circuitry for power distribution, switchover and management for the Sonix PA/GA system components. -
Page 5: Unit Overview

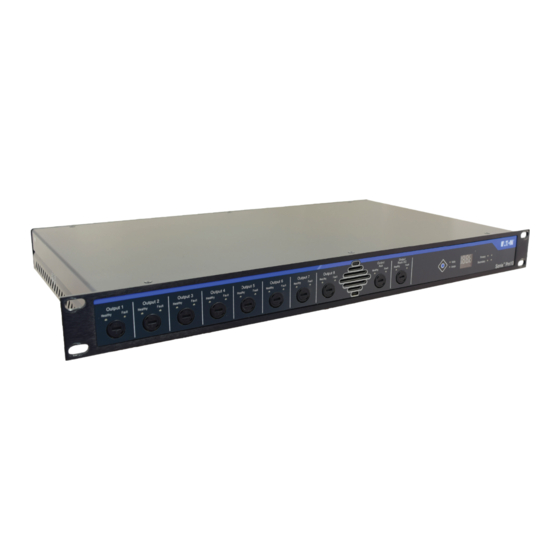

Healthy Fault Healthy Fault Primary Volts Secondary Amps Sonix Pm10 Warning: Dangerous voltages. Do not open Figure 1. General, simplified view of the Sonix Pm10 front panel. COMPLIANT Power Bus Primary Supply Secondary Supply O/P Aux O/P 8 O/P 7... -
Page 6: Installation And Connectivity
Warning: Ensure that no ventilation points are obstructed, and that the module is correctly supported within the cabinet. IEC 60417-6043 (2011=01) Beware of sharp edges and corners! Take care while handling. SONIX Pm10 TECHNICAL mANUAL TM365-1 / A June 2022 www.eaton.com... -
Page 7: Ac Power Input
Protective Earth bar Incoming power supply 110 V ac 230 V ac Incoming power supply 110 V ac 230 V ac Figure 8. Pm10 powered from two redundant power supplies. SONIX Pm10 TECHNICAL mANUAL TM365-1 / A June 2022 www.eaton.com... - Page 8 PA/GA system in a separate way to avoid Warning: Observe the polarity / order of contact with dc power or audio cables and reduce the possibility of connections. interference. SONIX Pm10 TECHNICAL mANUAL TM365-1 / A June 2022 www.eaton.com...
-
Page 9: Ac Power Output
Primary Supply Secondary Supply O/P Aux O/P 8 O/P 7 O/P 6 O/P 5 O/P 4 O/P 3 Warning: Observe the polarity / order of Figure 11. Auxiliary output connections. SONIX Pm10 TECHNICAL mANUAL TM365-1 / A June 2022 www.eaton.com... -
Page 10: Dc Power Distribution
1.5 mm • contact with ac power or audio cables and reduce the possibility of Stranded: interference. • including sleeved ferrule: 0.5 mm • including non-sleeved ferrule: 1.5 mm • SONIX Pm10 TECHNICAL mANUAL TM365-1 / A June 2022 www.eaton.com... -
Page 11: Fault Output
There is no configuration option to change the sense of the output. The fault output on the Sonix Pm10 is a volt-free contact output. The state of the fault output is determined by Maximum cable section supported are: health of the AC inputs to the unit: Solid: 1.5 mm... -
Page 12: Setup And Configuration
PA/GA rack, for example fans and air conditioning. When the Sonix Pm10 unit detects an AC power loss on the active input, it will immediately begin swapping Warning: Observe load limit of 4 A on unit and all the outputs to use a redundant AC input, if available. -
Page 13: Front Panel Display
There are no short circuits between negative and • positive conductors, Each input is fed via a suitably rated RCBO, • Live and Neutral are correctly connected to the • relevant inputs. SONIX Pm10 TECHNICAL mANUAL TM365-1 / A June 2022 www.eaton.com... - Page 14 All specifications, dimensions, weights and tolerances are nominal (typical) T: +44 (0) 1623 444 400 Publication www.crouse-hinds.com/hac No.TM365-1 / A and Eaton reserve the right to vary all data without prior notice. No liability is accepted for any consequence of use. MEDCSales@Eaton.com June 2022...
