UPS Industrial Gateway Card
INDGW-X2
Installing and Accessing the Network Module
English
10/18/2021
2.2.3

Advertisement

loading
Need help?

Need help?

Do you have a question about the INDGW-X2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Eaton INDGW-X2

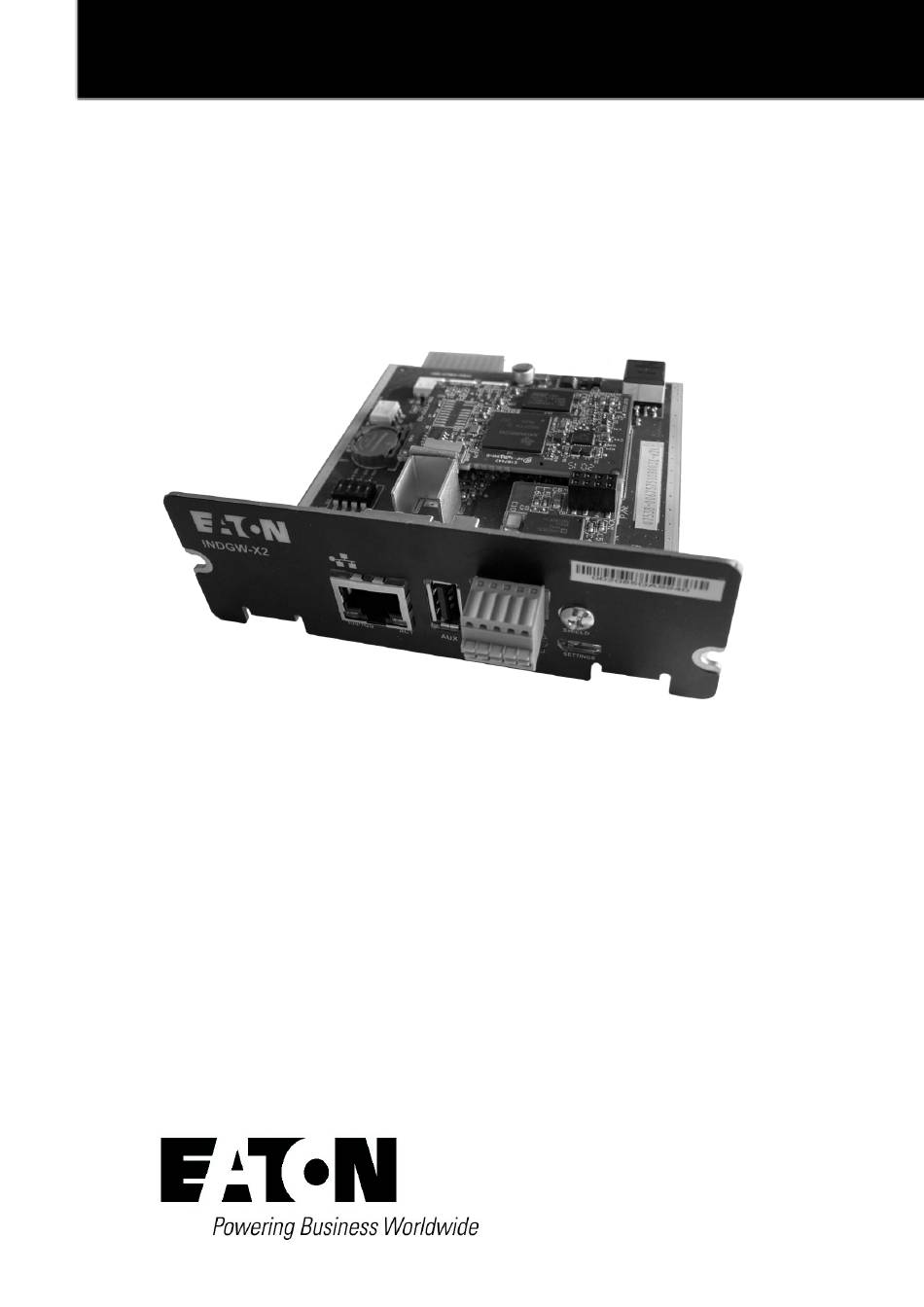

  • Page 1 UPS Industrial Gateway Card INDGW-X2 Installing and Accessing the Network Module English 10/18/2021 2.2.3...
  • Page 2 Google™ is a trademark of Google Inc. All other trademarks are properties of their respective companies. ©Copyright 2019 Eaton Corporation. All rights reserved. No part of this document may be reproduced in any way without the express written approval of Eaton Corporation.
  • Page 3    Unpacking the Network module 1 Installing the Network Management Module 1.1 Unpacking the Network module The INDGW-X2 will include the following accessories: • Installation instructions • USB AM to Micro USB/M/5P 5ft Cable • RS-485 wiring terminal Packing materials must be disposed of in compliance with all local regulations concerning waste.
  • Page 4    Accessing the Network Module 2 Accessing the Network Module 2.1 Accessing the web interface through Network 2.1.1 Connecting the network cable Security settings in the Network Module may be in their default states. For maximum security, configure through a USB connection before connecting the network cable. Connect a standard ...
  • Page 5 Accessing the Network Module To access the web interface through RNDIS, see the Accessing the web interface through RNDIS section. • Navigate to Contextual help>>>Settings>>>Network & Protocol>>>IPV4. • Read the IPv4 settings. 2.2.2 Your network is not equipped with a BOOTP/DHCP server 2.2.2.1 Define from the configuration port The IP address can be defined by accessing the web interface through RNDIS.
  • Page 6: Connecting The Configuration Cable

       Accessing the Network Module 2.3 Accessing the web interface through RNDIS This connection is used to access and configure the Network Module network settings locally through a RNDIS (Ethernet over USB interface). 2.3.1 Connecting the configuration cable 1. Connect the Micro-B to USB cable to a USB connector on the host computer. 2.
  • Page 7 STEP 1 – Be sure that the Device is powered on. STEP 2 – On the host computer, download the rndis.7z file from the website www.eaton.com/downloads and extract it. For more information, navigate to Servicing the Network Management Module>>>Accessing to the latest Network Module firmware/ driver section.
  • Page 8 After the card is connected to the PC, manual configuration of the driver is needed for Windows® OS to discover the serial connection. STEP 1 – On the host computer, download the rndis.7z file from the website www.eaton.com/downloads and extract it. STEP 2 – Plug the USB cable and go to Windows® Device Manager.
  • Page 9 USB. You can see this list of available commands by typing in the CLI:  ? You can see the help by typing in the CLI:  help For more details, refer to Information>>>CLI  section in the Network Module User Guide on the Eaton website www.eaton.com/ downloads.
