VersaPlanetary Assembly with AM-9015 Motor
and 10:1 First Stage

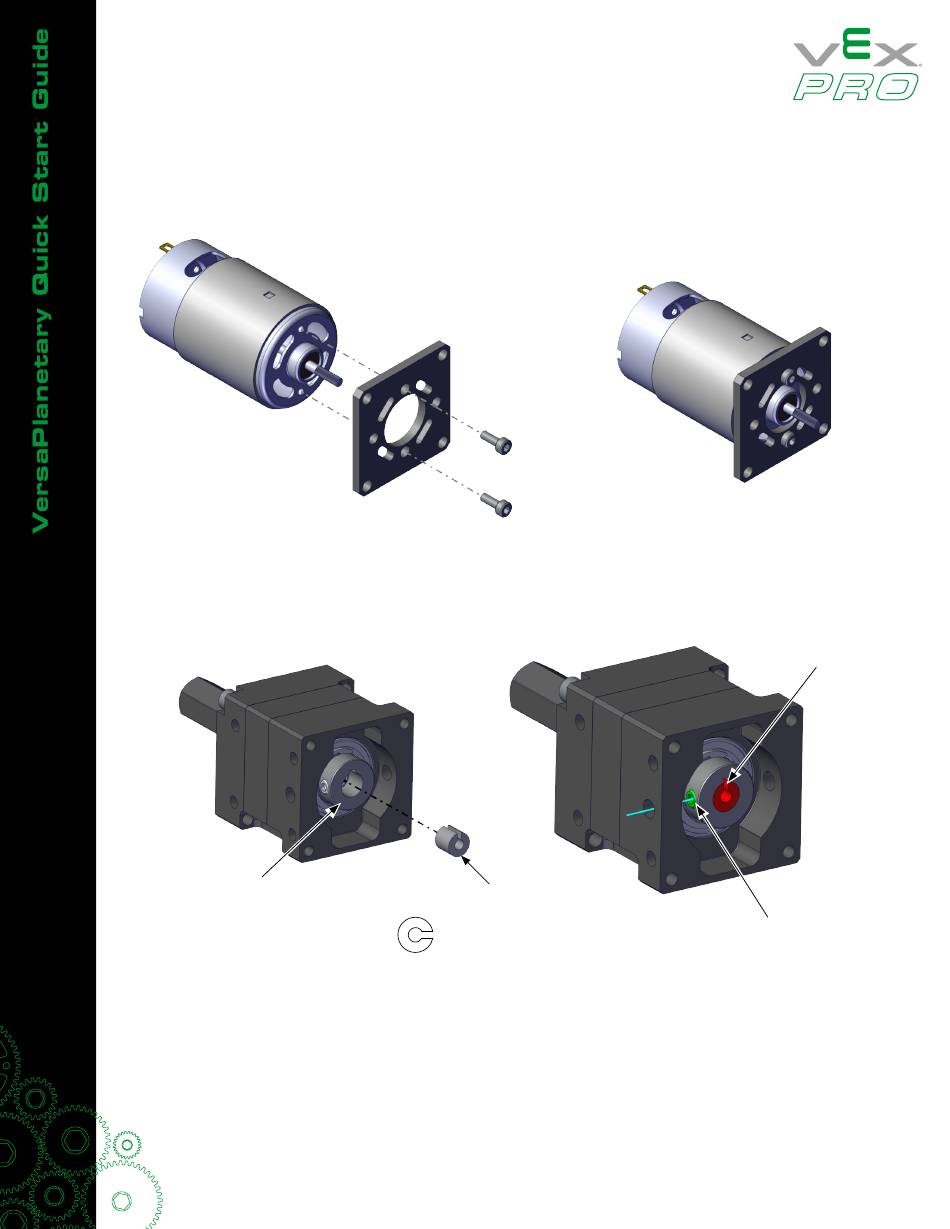

Step 1:
Use (2X) M3 x 8mm screws to mount an AM-9015 Motor to the Motor Plate as shown.
Input
Coupler
Step 2:
Insert the AM-9015 Collar into the Input Coupler as shown. Take note of the orientation of the Collar and
the Set Screw (highlighted green). The "split" in the Collar should align with the notch in the Input Coupler as
shown. The Set Screw should align with the Clearance Hole on side of the Input Housing as illustrated by the
blue line. DO NOT TIGHTEN THE SET SCREW.
Collar
AM-9015 Collar
Split and
Notch
Alignment
Set Screw
3
