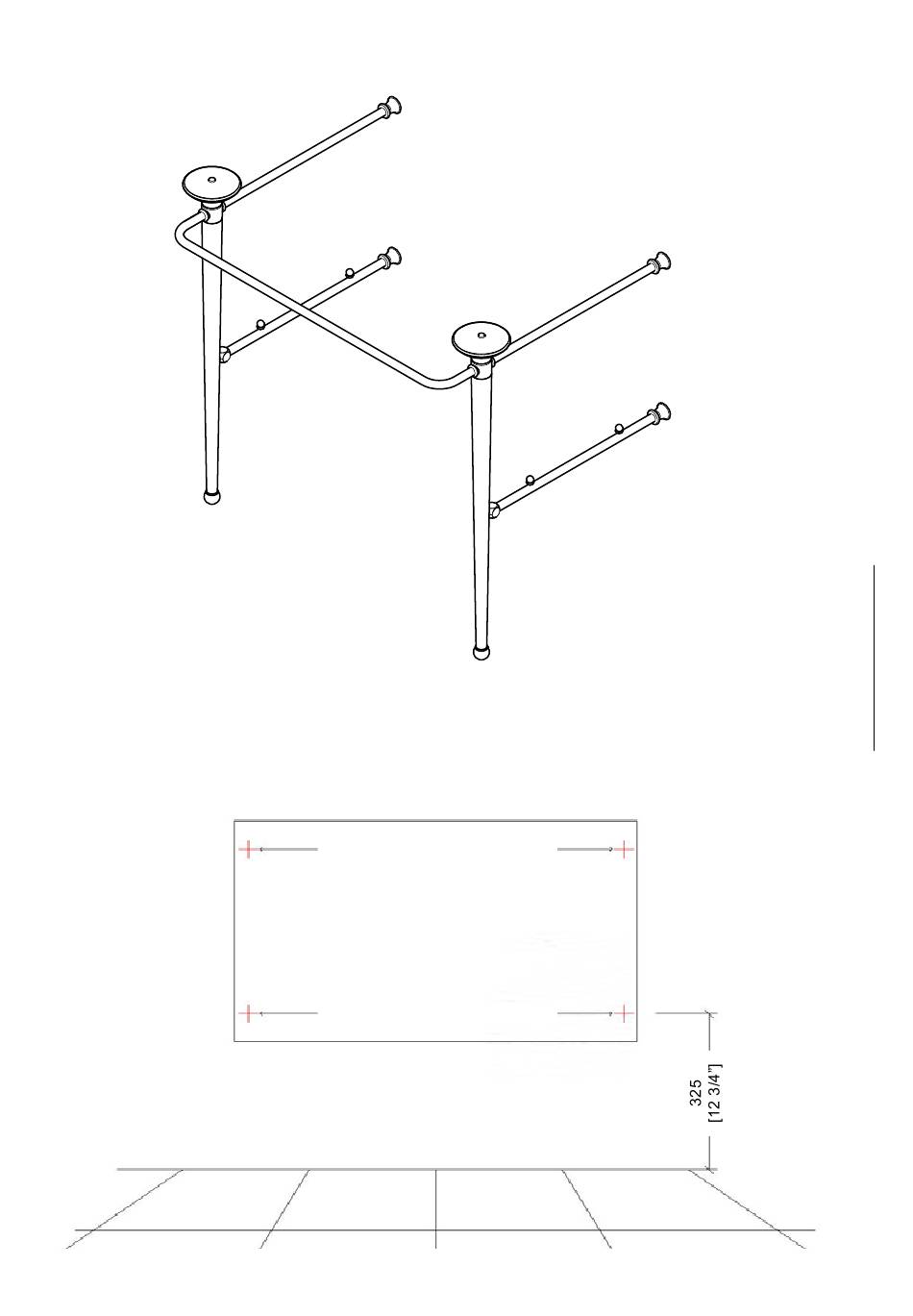

7) At this point, the assembled metal structure should appear as shown in the figure.

8) Hang the supplied cardboard template (H) on the wall taking into account the

preset heights.

H from the ground - 667 mm

H from the ground- 325 mm
