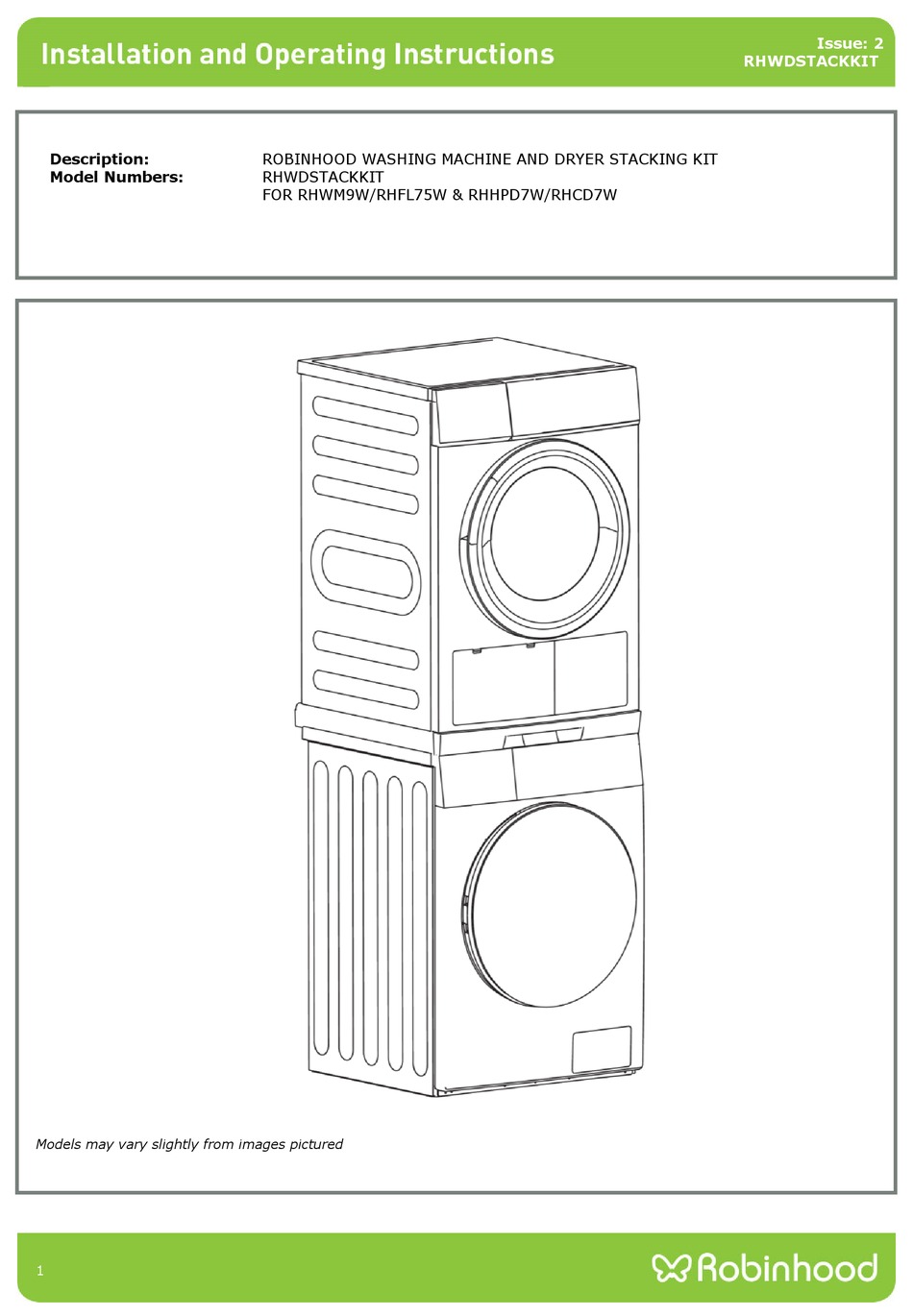

- Page 1 Issue: 2 RHWDSTACKKIT Description: ROBINHOOD WASHING MACHINE AND DRYER STACKING KIT Model Numbers: RHWDSTACKKIT FOR RHWM9W/RHFL75W & RHHPD7W/RHCD7W Models may vary slightly from images pictured...
- Page 2 This stacking kit can only be used to stack the nominated Robinhood Clothes Dryers onto the nominated Robinhood Washing Machines. Use on any other models/makes could result in an electrical/safety hazard. Check the Robinhood website or Service Department if unsure before commencing installation.
- Page 3 Installation Step 1: Ensure the installation of the Robinhood front loading washing machine is completed according to the appliance’s installation manual, and adjust the balance of the washing machine. Step 2: Check that all parts listed in the parts list are present.
- Page 4 Installation Step 4: Mark the positions of the six installation screw holes in the stacking kit on the top of the washing machine. Carefully drill through the six pilot holes in the top of the washing machine (take care that the drill it is only as long as the screws supplied). Place the stacking kit back on the washing machine and screw into place using the six screws provided (C).
- Page 5 Installation Step 6: Adjust the feet of the clothes dryer. For clothes dryers with four adjustable feet screw the front feet out by 16mm and the rear feet by 12mm. Check that the clothes dryer sits stable on a flat surface.
- Page 6 Installation Step 8: Check that the clothes dryer is not loose inside the stacking kit. Pull out the drawer & check that there is no interference. If this is all good, the installation is complete. Reconnect all power and water sources. When using either appliance for the first time, check that the clothes dryer does not move within the stacking kit.
- Page 7 The following conditions apply in respect of the warranty given in this certificate: 1. Monaco Corporation Limited (“Monaco”) warrants the following Robinhood products against manufacturing defects and faulty materials, under normal use and subject to the exclusions in this certificate, for a period of: Rangehood, Ovens, Cooktops, Dishwashers, Refrigeration, Washing machines, Clothes Dryers - 24 months from date of original purchase for domestic use.
- Page 8 The product was used outdoors. 2. All Robinhood Rangehoods are suitable for indoor use only and not suitable over BBQs or charcoal cookers designed for outdoor use. 3. In addition, this warranty does not extend to damage or defects which in our opinion, directly or indirectly arise from or are due to: exposing the product to acidic or corrosive materials or chemicals such as dyes, solvents, denture cleaner or acetone;...
