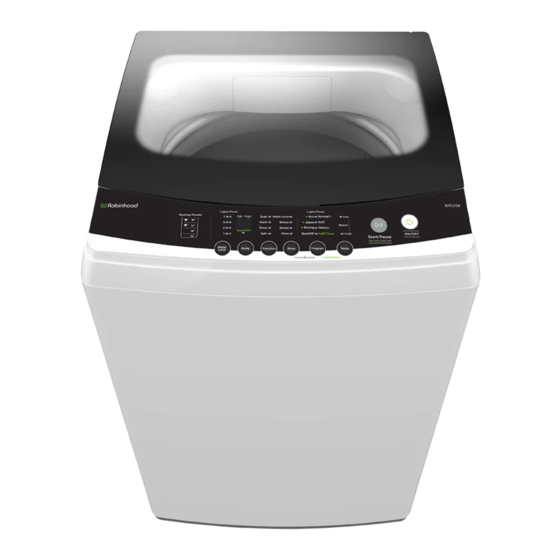

- Page 1 Installation and Operating Instructions Issue: 1 Description: ROBINHOOD TOP LOADING WASHING MACHINE 5.5KG WHITE Model Number: RHTL55W Model pictured: RHTL55W Actual unit may vary from picture as above...
-
Page 2: Table Of Contents
It is important that you retain these instructions and your proof of purchase along with any other important documents about this product for future reference. Due to continual product development, Robinhood reserves the right to alter specifications or appearances without notice. Important Safety Instructions……………………………………………………………………………………………………………………..1-2 Appliance Details……………………………………………………………………………………………………………………………………………3... -
Page 3: Important Safety Instructions
Important Safety Instructions When using electrical appliances, in order to reduce the risk of fire, electric shock, and/or injury to persons, basic safety precautions should always be followed, including • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 4 Important Safety Instructions • Make sure that all pockets are emptied. Sharp and rigid items such as coin, brooch, nail, screw or stone etc. may cause serious damages to this machine. • Please check whether the water inside the drum has been drained before opening its door. Please do not open the door if there is any water visible.
-
Page 5: Appliance Details
Appliance details Model RHTL55W Maximum Drying Capacity 5.5 kg Rated Voltage 240 V Rated Frequency 50 Hz Rated Wattage 400 W Net Weight 31 kg Dimension (WxDxH) 550 x 565 x 930 mm Accessories Inlet hose Cabinet Spring Drain hose... -
Page 6: Installation
Installation Instructions Installation Area Warning! Stability is important to prevent the product from wandering! • Make sure that the product should not stand on the power cord. Before installing the machine, the location characterized as follows shall be selected: 1. - Page 7 Installation Instructions Warning! Do not kink or protract the drain hose. Position drain hose properly, otherwise damage might result of water leakage. If drain hose is too long, do not force it into washing machine as it will cause abnormal noises.
- Page 8 Installation Instructions Please select appropriate tap Selection of Tap Connection of inlet hose, tap and washing machine 1. Connection between ordinary tap and inlet hose. 1. Loosen clamp nut 2. Loosen four bolts 4. Tighten clamp nut 3. Set connecting to show 5 mm thread base on tap and tighten bolt evenly...
-
Page 9: Operating Instructions
Operation Instructions Preparation Before Washing Caution! Before washing, please make sure it’s installed properly. • Before washing at first time, the washing machine shall be operated in one round of the whole procedures without clothes in as follow. Power On Start up Select Level Select Program... - Page 10 Operation Instructions Washing matters needing attention • The working condition of the washer should be (0-40) °C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is placed under condition of 0°C or less, then it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use.
- Page 11 Operation Instructions Control Panel Press the button to start or pause the Product is switched on or off. washing cycle. This allows you to select an additional Available according to the laundry function and will light when selected. type. The display shows the settings, estimated time remaining, options, and status messages for your washer.
- Page 12 Operation Instructions Option Water level select water level according to clothing categories, degree of soiling and washing habits of customers Rinse rinsing times settings can be selectable Function combination of soaking, washing, rinsing and spinning light is available Temp. Press the button to regulate the Hot, warm, cold water for wash. Delay Select a program Press the Delay button to choose the time...
- Page 13 Operation Instructions Personalized setting of washing program Customers can select washing program according to actual demand, and set rinsing times、 water volume and appointment time Operations of washing process Customers can set single process or combinations of washing, rinsing and spinning freely according to demand.
- Page 14 Operation Instructions Washing Program Table Programs are available according to the laundry type. Program Jeans Suitable to wash heavy stained/wearable clothes. Quick 15 Suitable to wash light stained clothes and clothes in summer. Soft The tempo is soft, slow washing and spinning speed, to make the lightest wear and deformation.
-
Page 15: Cleaning And Maintenance
Cleaning and Maintenance Cleaning and Care Warning! Before your maintenance starts, please unplug the machine and close the tap. Cleaning the cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. - Page 16 Cleaning and Maintenance Cleaning drain pump filter Warning Be careful of the hot water! • Allow detergent solution to cool down. • Unplug the machine to avoid electrical shock before washing. • Drain pump filter can filter the yarns and small foreign matters from the washing. •...
-
Page 17: Troubleshooting
Troubleshooting The start of the appliance does not work or it stops during operation. First try to find a solution to the problem, If not, contact the service centre. Description Reason No washing If the power is off or the fuse is burned out. If the power supply voltage is too low. -
Page 18: Warranty Certificate (New Zealand)
The following conditions apply in respect of the warranty given in this certificate: Monaco Corporation Limited (“Monaco”) warrants the following Robinhood products against manufacturing defects and faulty materials, under normal use and subject to the exclusions in this certificate, for a period of: ... -
Page 19: Warranty Certificate (Australia)
The product was used outdoors. All Robinhood Rangehoods are suitable for indoor use only and not suitable over BBQs or charcoal cookers designed for outdoor use. In addition, this warranty does not extend to damage or defects which in our opinion, directly or indirectly arise from or are due to: exposing the product to acidic or corrosive materials or chemicals such as dyes, solvents, denture cleaner or acetone;...
