Summary of Contents for ROBINHOOD RHCD7W

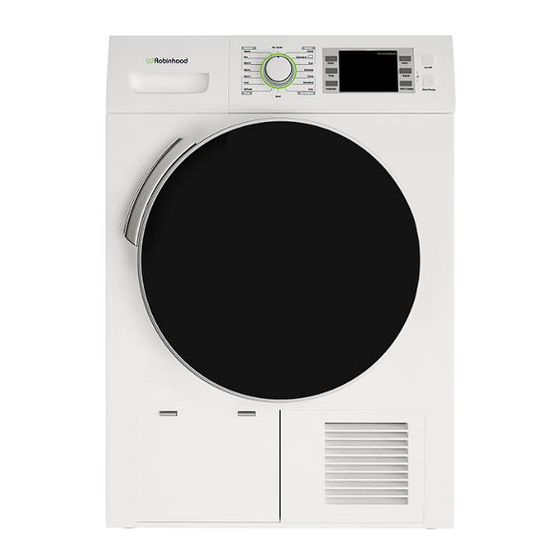

- Page 1 Installation and Operating Instructions Issue: 1 Description: ROBINHOOD CONDENSOR DRYER 7KG WHITE Model Number: RHCD7W Model pictured: RHCD7W Actual unit may differ from image above...
-
Page 2: Table Of Contents
It is important that you retain these instructions and your proof of purchase along with any other important documents about this product for future reference. Due to continual product development, Robinhood reserves the right to alter specifications or appearances without notice. Important Safety Instructions……………………………………………………………………………………………………………………..1-2 Appliance Details……………………………………………………………………………………………………………………………………………3... -
Page 3: Important Safety Instructions
Important Safety Instructions When using electrical appliances, in order to reduce the risk of fire, electric shock, and/or injury to persons, basic safety precautions should always be followed, including • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 4 Important Safety Instructions • In certain circumstances electrical appliances may be a danger hazard. Check the conformity of voltage and power settings, which are specified on the information plate attached to the appliance and/or packaging, with the usage conditions available. •...
-
Page 5: Appliance Details
Appliance details Model RHCD7W Maximum Drying Capacity 7 kg Rated Voltage 220 – 240 V Rated Frequency 50 Hz Rated Wattage 2000 W Net Weight 41 kg Dimension (WxDxH) 595 x 615 x 845 mm (without door frame) 595 x 660 x 845 mm (with door frame) Accessories The following parts are optional for specific models. -
Page 6: Installation
Installation Instructions Transport Move cautiously. Do not grasp any salient parts of machine. The dryer door cannot be used as the handle for delivery. Installation Position 1. It is recommended that, for your convenience, the machine is positioned close to your washing machine. -
Page 7: Operating Instructions
Operation Instructions Quick Start Note! Before using, please make sure it's installed properly. Plug in Load Close door Drying Select Select Start program function or default After Drying Buzzer beep or “0:00” on display Open the door Pull out the Pour out Clean the Power off... - Page 8 Operation Instructions Before Each Drying Attention ! Before the first cycle, the dust and grease may remain in this dryer during the period of manufacture and transportation, to avoid contaminating your clothes, please follow these steps: Put some clean rags into the drum. •...
- Page 9 Operation Instructions Please pay attention to use the drying machine if the materials of your clothes can not b e dried by it or contain the symbols as follows: Operation Instructions...
- Page 10 Operation Instructions Control Panel On / Off Display Product is switched on or off. This display shows the setting, estimated Remaining time and status message of your dryer. Start / Pause Program Press the button to start or pause the drying Different dryer cycle can be selected according cycle.
- Page 11 Operation Instructions Display Icon Meaning Filter After the dryer stops, clean filter when icon lights up. Tank After the dryer stops, empty container when icon lights up. Delay start Timer Child lock Remaining time indicator/Error message Cycle phase status Clean filters (warning) Empty water container (warning) Dryness level (four settings) Speed dry indicator...
- Page 12 Operation Instructions Program selector 1. Press the【On/Off 】 button ,when the LED display screen brightens up, rotate the program knob to select the desired program. 2. Select the【Delay】,【Time】,【Intensity】,【Speed Dry】,【Signal】or 【Anti-Crease】 functions for additional option. 3. Press the【Start/Pause】button. Program start The drum will keep rotating after the program starts, the state light in the display area will flash in sequence, the remaining time displayed will change automatically.
- Page 13 Operation Instructions • Instructions of the 【Time】function When the warm or cool or refresh program is selected, the【Time】button can be used to adjust the drying time in 10 min. steps. Instructions of the 【Intensity】function • Used to adjust the dryness level of the laundry. The level has four grades . The drying time increases 3 minutes in every grade.
- Page 14 Operation Instructions • Instructions of the【My Cycle】function Used to define and save your favorite programs that are used frequently. Use the program selector to select the required program and other drying functions. Press and hold the 【Intensity】button for 3 seconds until the beep and the required program has been saved.
- Page 15 Operation Instructions Drying Program Table Weight Program Delay Time Application/Properties (max) 7.0kg For cottons and colour made of cotton or linen. To dry cotton pieces of clothing. Drying level: extra dry. Extra Cotton 7.0kg Standard To dry cotton pieces of clothing. Drying level: cupboard dry. To dry cotton pieces of clothing.
- Page 16 Operation Instructions This symbol means the energy efficiency test program “standard cotton program”, which is accordance with • the applicable EN 61121 standard and most suitable to dry normal cotton load at rated load capacity. Thick or multi-layered fabrics, e.g. bedlinen, jeans, jackets etc, are not easy to dry. You'd better choose •...
-
Page 17: Cleaning And Maintenance
Cleaning and Maintenance Cleaning and Care Clean the lint filter Leave the dryer to cool down. 1. Open the machine door. 2. Take out the lint filter, pull upward to take it out. 3. Clean the lint filter; wipe off the scrap threads accumulated on the lint filter, with your hand or rinse with water and dry thoroughly. - Page 18 Cleaning and Maintenance Empty the water container 1. Hold and pull out the water container with two hands. 2. Tilt the water container, pour out the condensate water. 3. Insert the water container Warning! • Empty the water container after each use, the program will be paused and the “ ”...
-
Page 19: Troubleshooting
Troubleshooting Alarm Problem Alarm Reason Release Heating problem “ E30 ” Please contact your local service center if the problem persists. Humidity sensor error “ E32 ” Temperature sensor error “ E33 ” Warning! • Only authorised technicians can carry out repairs. •... -
Page 20: Warranty Certificate (New Zealand)
The following conditions apply in respect of the warranty given in this certificate: Monaco Corporation Limited (“Monaco”) warrants the following Robinhood products against manufacturing defects and faulty materials, under normal use and subject to the exclusions in this certificate, for a period of: ... -
Page 21: Warranty Certificate (Australia)
The product was used outdoors. All Robinhood Rangehoods are suitable for indoor use only and not suitable over BBQs or charcoal cookers designed for outdoor use. In addition, this warranty does not extend to damage or defects which in our opinion, directly or indirectly arise from or are due to: exposing the product to acidic or corrosive materials or chemicals such as dyes, solvents, denture cleaner or acetone;...
