Festo NEBM-T1G8-E -S1G15 Series Assembly Instructions

NEBM-T1G8-E-...-S1G15
Encoder cable
Assembly instructions
8168890
2022-03d
[8168892]
Translation of the original instructions
© 2022 all rights reserved to Festo SE & Co. KG
1 Applicable documents
All available documents for the product è www.festo.com/sp.
Document Product
Assembly instructions Motor cable NEBM-T1G8...
Tab. 1
2 Safety
2.1 Safety instructions
– Do not connect or disconnect the push-in connector while the voltage is live.
– Only mount the product on components that are in a condition to be safely
operated.
2.2 Intended use
Connection of motor EMMS-AS with controller CMMP-AS.
3 Additional information
– Accessories è www.festo.com/catalogue.
4 Structure
4.1 Product design

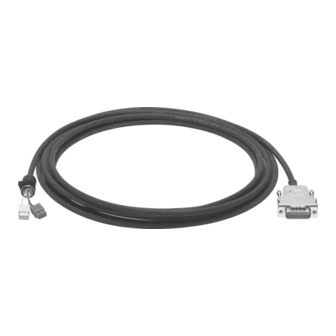

1 3
2 4
Fig.1
4.2 Contact assignment
Electrical connection 1
Field device side
1 and 2 Socket Pin
RD 1
2
3
4
5
6
YE 1
2
3
4
5
6
Tab. 2: Contact assignment
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Deutschland
+49 711 347-0
www.festo.com
Socket RD, 6-pin,
1
red insulator
2 Socket YE, 6-pin,
yellow insulator
3 Sub-D plug, 15-pin
Cable
4
5
5 Screw (2x)
Signal Electrical connection 2
Controller side
Pin 3 Plug connector
Data+ 12
Data– 5
0V 3
Up 10
Clock– 6
Clock+ 13
0V 2
UP 9
–
–
–
–
5 Assembly
5.1 Mounting electrical connection 1
A
C
A
C
Fig. 2: Remove cover of terminal box
1. Screw on the screws [C].
2. Remove the cover [A] of the terminal box [B].
Ä The O-rings [D] are still on the screws [C].
The O-rings [D] prevent the screws [C] from being lost and damage to the main
seal.
F
Fig. 3: Remove the strain relief
1. Screw on the screw [F].
2. Remove the strain relief [E].
2
1
J
Fig. 4: Place the encoder cable in position
1. Align the encoder cable [G] so the flat side [I] points upwards.
2. Press the sockets 1 and 2 onto the matching plugs [J].
Fig. 5: Positioning motor cable
• Place the motor cable NEBM-T1G8... [H] in the terminal box
è 1 Applicable documents.
C
B
D
E
G
I
H
