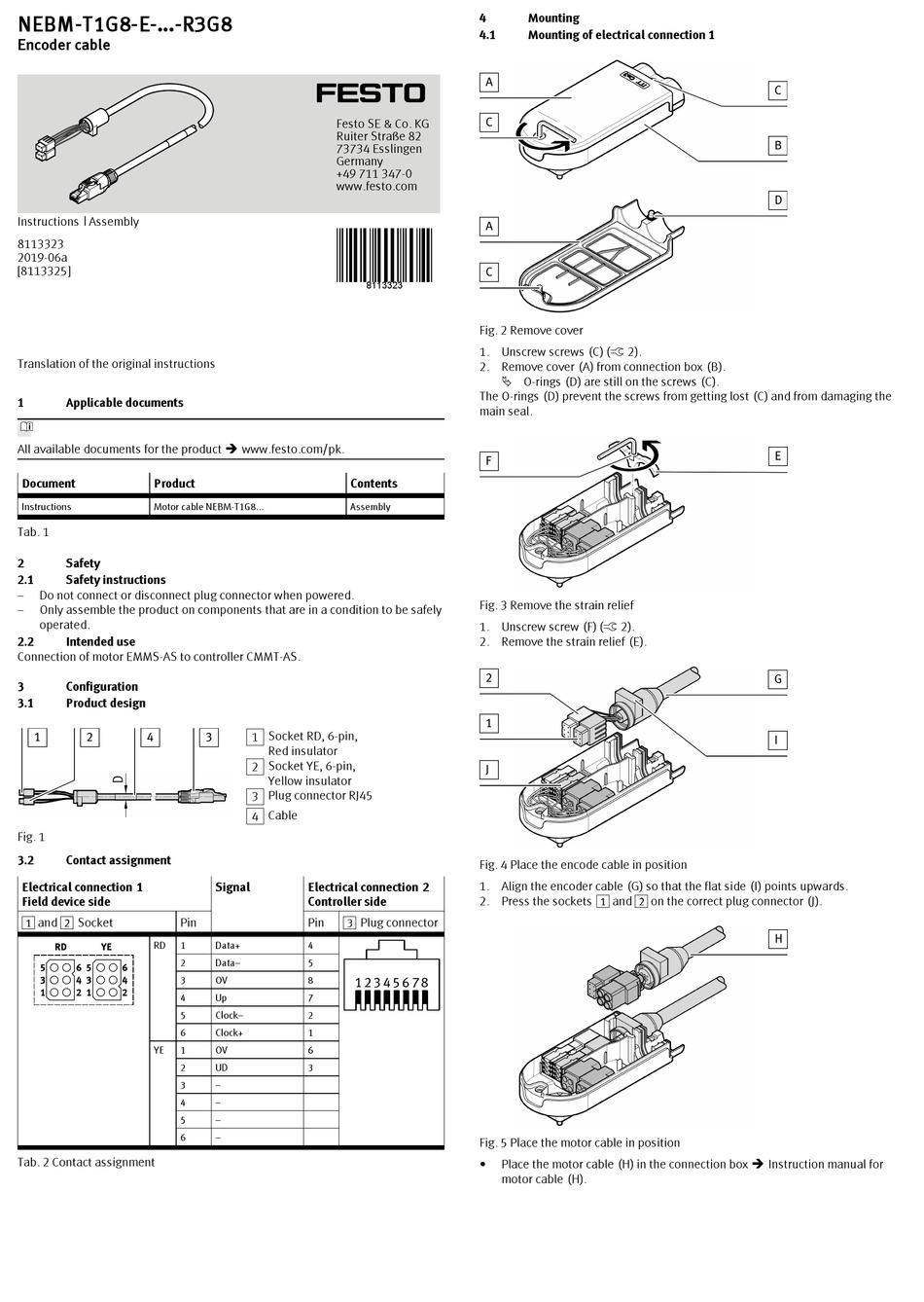

NEBM-T1G8-E-...-R3G8
Encoder cable
Instructions | Assembly
8113323
2019-06a
[8113325]
Translation of the original instructions
1
Applicable documents
All available documents for the product è www.festo.com/pk.
Document
Product
Instructions
Motor cable NEBM-T1G8...
Tab. 1
2
Safety
2.1
Safety instructions
Do not connect or disconnect plug connector when powered.
Only assemble the product on components that are in a condition to be safely
operated.
2.2
Intended use
Connection of motor EMMS-AS to controller CMMT-AS.
3
Configuration
3.1
Product design
Fig. 1
3.2
Contact assignment
Electrical connection 1
Field device side
1 and 2 Socket
Pin
RD
1
2
3
4
5
6
YE
1
2
3
4
5
6
Tab. 2 Contact assignment
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 347-0
www.festo.com
8113323
Contents
Assembly
1 Socket RD, 6-pin,
Red insulator
2 Socket YE, 6-pin,
Yellow insulator
3 Plug connector RJ45
4 Cable
Signal
Electrical connection 2
Controller side
Pin
3 Plug connector
Data+
4
Data–
5
OV
8
Up
7
Clock–
2
Clock+
1
OV
6
UD
3
4
Mounting
4.1
Mounting of electrical connection 1
Fig. 2 Remove cover
1. Unscrew screws (C) (ß 2).
2. Remove cover (A) from connection box (B).
Ä O-rings (D) are still on the screws (C).
The O-rings (D) prevent the screws from getting lost (C) and from damaging the
main seal.
Fig. 3 Remove the strain relief
1. Unscrew screw (F) (ß 2).
2. Remove the strain relief (E).
Fig. 4 Place the encode cable in position
1. Align the encoder cable (G) so that the flat side (I) points upwards.
2. Press the sockets 1 and 2 on the correct plug connector (J).
Fig. 5 Place the motor cable in position
Place the motor cable (H) in the connection box è Instruction manual for
motor cable (H).
