Table of Contents:
Important Information . . . . . . . . . . . . . . . . . . 2

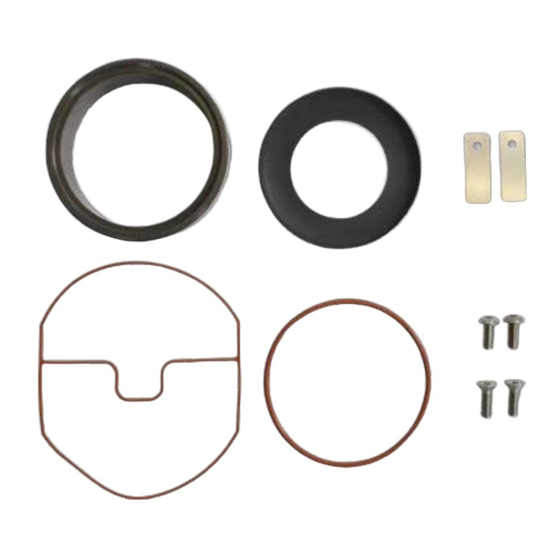

Product Contents . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation Instructions. . . . . . . . . . . . . . . . .3-7
SilentAir
Maintenance Kit
INSTALLATION MANUAL
Changing the Air Filter . . . . . . . . . . . . . . . . . . . 8
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
G25
™
(RP25 74R)
Item #510108
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Airmax SilentAir G25
Summary of Contents for Airmax SilentAir G25

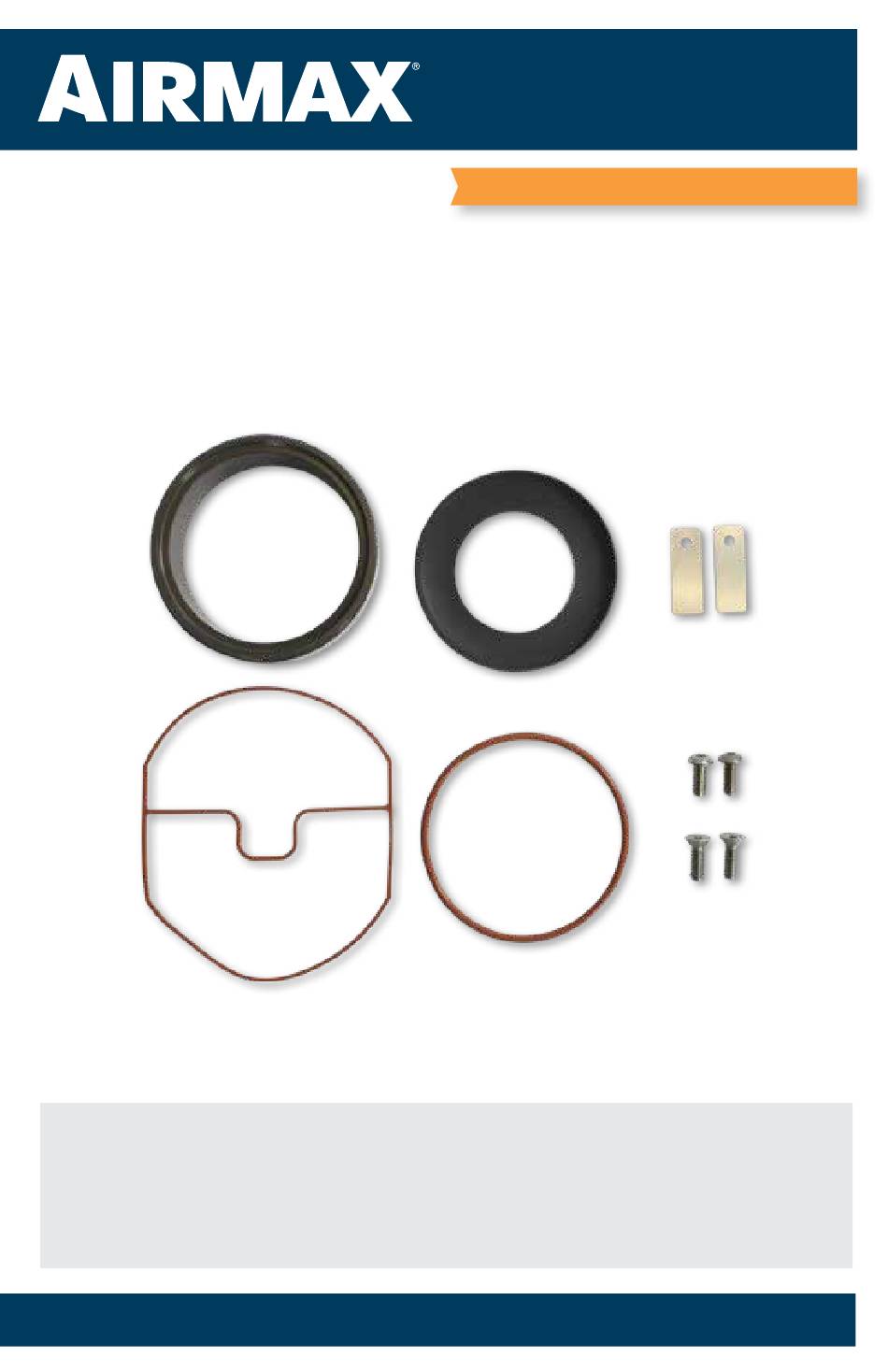

- Page 1 SilentAir ™ (RP25 74R) Maintenance Kit INSTALLATION MANUAL Item #510108 Table of Contents: Important Information ....2 Changing the Air Filter ....8 Product Contents .
- Page 2 • ALWAYS unplug the compressor from power source and remove pressure from airlines before installing the maintenance kit. IMPORTANT: Airmax® is not responsible for equipment damage or failure, losses, injury or death resulting from failure to follow safety precautions, misuse or abuse of equipment.
- Page 3 See Video Instructions of the RP25 (74R) Maintenance Kit installation online at airmaxeco.com/InstallRP25 Tools Required: • 5/32” Allen Wrench • 1/8” Allen Wrench • Flathead Screwdriver • Small Pick Tool Installation of Your G25 (RP25 74R) Rocking Piston Compressor Maintenance Kit Step 1 Use a 5/32”...
- Page 4 Step 3 Remove and discard the old cylinder sleeve. Step 4 Use a 1/8” Allen wrench to remove the two screws on the piston. Piston Cup Step 5 Remove and discard the worn piston cup and position the new one beneath the piston retainer plate making sure the lip of the new piston cup faces up.
- Page 5 Step 6 Firmly push the piston retainer plate with piston cup into the cylinder sleeve. Flip over to ensure the piston cup is properly aligned within the cylinder sleeve. Reinstall the cylinder sleeve on the compressor and secure the piston retainer plate using the two new screws from your maintenance kit (Recommended Torque: 34-38 in lb).
- Page 6 Valve Limiter U-Shaped Groove Step 9 Install the leaf valve, ensuring the leaf top in the “U” shaped groove on the valve and limiter are located on the valve plate and cover the hole. Ensure side opposite of the o-ring gasket. the curved portion of the limiter rests Place the leaf valve with the limiter on on the leaf valve.
- Page 7 Step 11 Remove the old o-ring gasket using a small pick tool and replace. Step 12 Place the valve plate back onto the compressor body. Remove and replace the old cylinder gasket. Step 13 Flip the cylinder head back onto the compressor, align and push firmly into place.
- Page 8 To replace the air filter, hold the base of the air filter and turn the top counterclockwise to remove the air filter cap. Replace the old air filter element with a new one. NOTES THANK YOU FOR CHOOSING: Airmax, Inc. 15425 Chets Way Street Armada, MI 48005 866-424-7629 www.airmaxeco.com...
