Summary of Contents for RKS T7
- Page 1 VELAIR Vélo électrique RUNNER NOIR MANUEL D'UTILISATION PROLINE REFRIGERATEUR BRF40 Besoin d'aide ? Rendez-vous sur https://sav.darty.com...
- Page 2 USER MANUAL www.rksmotor.eu...
-
Page 3: Table Of Contents
TABLE OF CONTENT General not ce .......................... Assembly indication ........................Wire chart ..........................Specification ..........................Main tightening parts ........................ Adjustments to all parts Saddle ............................. Front / Back Brakes ........................Cant lever Brake ........................V Brake ............................. Clasp Brake ..........................Cha n ............................ - Page 4 TABLE OF CONTENT Maintenance Charg ng ......................R egularly checking and maintenance ..................C leaning instruction ......................... Trouble shooting and eliminating ..................... Free repairing provision ......................Free service under 3provisions ....................F ree repairing range ........................ Payable repairing service ......................Pr nc ple Of Charger Serv ce ....................
-
Page 5: General Not Ce
GENERAL NOTICE For the sake of correct operation and maintenance to your E-bike, ensure that it can be operated properly to long lasting usage, you will be required to study this manual carefully before operating. Never lend your E-bike to freshman who knows nothing about it, and never drive without reading manual or studying detailedly about its features, in case to avoid any damage or injure. -
Page 6: Assembly Indication

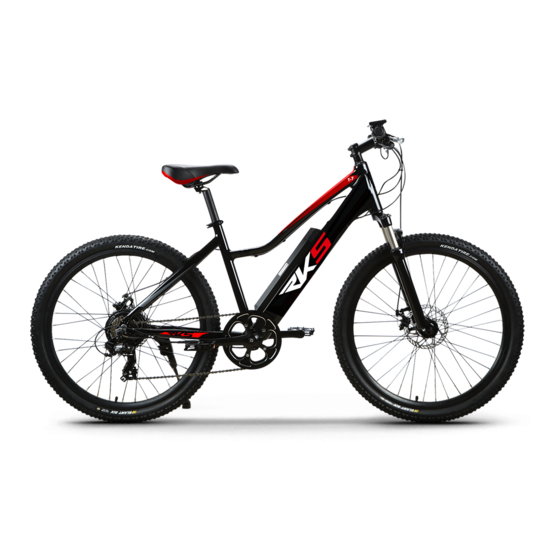

ASSEMBLY INDICATION E-Bike With Lithium Battery... -
Page 7: Wire Chart
WIRE CHART... -
Page 8: Specification
SPECIFICATION Frame Alum n um Alloy Steer ng Alum n um Alloy Handlebar Alum n um Alloy Sta ght Bar Tyre 26" x 1.95 Body Alum n um Whell Brake FIR D sc Brake Range 35 - 45 km. D mens on 1740 x 380 x 1060 mm Type L th um Battery... -
Page 9: Main Tightening Parts
SPECIFICATION Meter Type Front Dera lleur Sh amano 3 Speeds Dera lleur Rear Dera lleur Sh amano 7 Speeds Input AC110V / 50-60Hz Charger Output DC42V / 2A Charg ng T me 3-SH Main Tightening Parts ITEM STANDART MOMENT Handlebar Steam 18 - 25 N.m Saddle 18 - 25 N.m... -
Page 10: Saddle
ADJUSTMENT TO ALL PARTS Adjustment to Saddle FIGURE A Saddle should be inserted into the tube not less than remarked safe area. Tightly screw the bolt between saddle and tube to a moment more than 18N·m.(see figure A). Loose saddle tube's bolt, insert the saddle, then tight the bolt to a proper level and adjust the height when sitting on it, make sure it is on the best position for riding. -
Page 11: Clasp Brake
ADJUSTMENT TO ALL PARTS Adjustment to Clasp brake Loose the fixing nut (on adjustable bolt) and the pole nut, screw the adjustable bolt meanwhile grip the brake, to set the rear brake cling on rim when brake's moving is 1/3-1/2 of distance between, then tightening the fixing nut and pole nut. -
Page 12: Handle Bar
ADJUSTMENT TO ALL PARTS Adjustment to handle bar Handlebar stem should not be less than the minimum limit of depth to ensure safety. (See Figure H.) Clamp the front wheel with legs against handlebar, grip the thills, adjust the handlebar to 90°towards the frame. -
Page 13: Operation Indication
OPERATION INDICATION Preparat on Carefully reading to well-know the item before driving. Check the tyres: make sure tyres with enough air inside; replace the tyre from nominated repairing station if the dints of outer tyre are less than 2mm or any cracks to avoid skidding when driving. Check the electricity system: ensure the power is enough for the estimated range;... -
Page 14: Braking
OPERATION INDICATION Never drive on the motor vehicle driveway or loading. Well study the features and operation before drive. Many accidents occurred because of unclear situation, do in accordance with below suggestions to minimize it— Dress in cloth in obvious color Drive in daytime to escape from darkness situation. -
Page 15: Parking
OPERATION INDICATION Parking Power off after driving to avoid any sudden turning when walking by. Don't start pedal ng when parked to well protect the battery, motor and power nd cator Take off the key. Park indoor. Maintenance Charging Charging before driving since new E-bike is power shortage during transportation. Choose corresponding approved charger and other components to avoid any possible accidents. - Page 16 OPERATION INDICATION Caution No cover or water on charger, only dry, ventilative indoor use. Never open the charger or replace the plug and cord, high voltage will cause accidents. Keep it away from children when charging. Never inverse the battery direction when charging, and operation before full charged will lessen the usage life.
-
Page 17: Regularly Checking And Maintenance
REGULARLY CHECKING AND MAINTENANCE CHECK LIST EVERYDAY 60 DAY 180 DAY Air Pressure, Indent on Outer Tyre Brakes Horn Charger and Power Supply Cord Screws, Swerving Sets Brake Gasket Frame, Front Fork Bell, Rear Reflector Chain Pedals Spokes Check Adjust / Replace Lubr cate... -
Page 18: Cleaning Instruction
CLEANING INSTRUCTION Never wash with high pressure watering column, the inside electronic parts and circuit will be soaked to stop working. Wiping with Neutral lotion for painting area and outer surface, then clean with dry cloth. Lubricating oil for metal components. Never lubricating the brake gaskets, rims or tyres. -
Page 19: Trouble Shooting And Eliminating
TROUBLE SHOOTING AND ELIMINATING TORUBLE POSSIBLE REASON SOLUTION REMARK Power on but no Cut off power before replacing Replace fuse Fuse burnt indication on to avoid short circuit. Or repair Battery cord meter, no starting. in nominated maintenance Connect the cord disconnect station if it usually happens. -
Page 20: Free Repairing Provision
Ask for formal selling invoice and stamped after-sell service card with signature after detaildly checking and studying from seller. Operate properly according to the manual. RKS MOTOR EUROPE is responsible for quality problems under the terms of <<Products Quality Law of TURKEY >>, <<Consumer rights protection Law of... -
Page 21: F Ree Repairing Range
FREE REPEIRING RANGE Note: All free service for problems caused naturally only, excludes artificial operations. PART FREE PERIOD PROBLEM DESCRIPTION motor cover ruptured, winding burnt Motor 1 Years Charger Irreparable function problem 1 Years Battery capacity less than 60%, Free change within 12months, free change maintenance one within 1 Year Lithium battery... -
Page 22: Payable Repairing Service
PAYABLE REPAIRING SERVICE DESCRIPTION Malfunctions caused by improper operations(use, maintenance, adjust) against User Manual. Non-analytic problems caused by personally disassembling. Problems caused by improper usage, storage, or accident. No After-sell service card, effective invoice or discrepant documents. Consuming parts(freewheel, axle, saddle, support, locks, lamps, fuse, brake pads, brake cord, spoke, bulb, brush, reflector, plastic parts, PP parts) Personally disassemble not permitted in manual. -
Page 23: Pr Nc Ple Of Charger Serv Ce
PRINCIPLE OF CHARGER SERVICE Cost of replaced parts required if out of free maintenance provisions. Bikes will be charged due to National standard. Battery will be recycled when replacing for obeying the environmental protection rules. DISUSE BATTERY RECYCLE According to the national environmental protection law, all disused batteries should be recycled by resellers and collected to the Li-ion bike manufactory, and delivery to battery supplier for further treatment. -
Page 24: Repairing Record
REPAIRING RECORD Name Add. Inspector Inspection date Problem Result User Satisfaction%... - Page 25 REPAIRING RECORD Name Add. Inspector Inspection date Problem Result User Satisfaction%...
-
Page 26: About Dealer And Informat On Card
ABOUT SEALER AND INFORMATION CARD Purchase Record Card F ll n mmed ately and reta n as a record of your purchase * Please reta n your sales rece pt for any poss ble warranty cla ms Your Name: Address: Date Purchased: Place of Purchase: Model &... - Page 27 Manufacturer Kuba Otomotiv İnşaat Sanayi ve Ticaret A.Ş. www.rksmotor.eu RKS; reserves the right to process the product specifications, color and permits.
