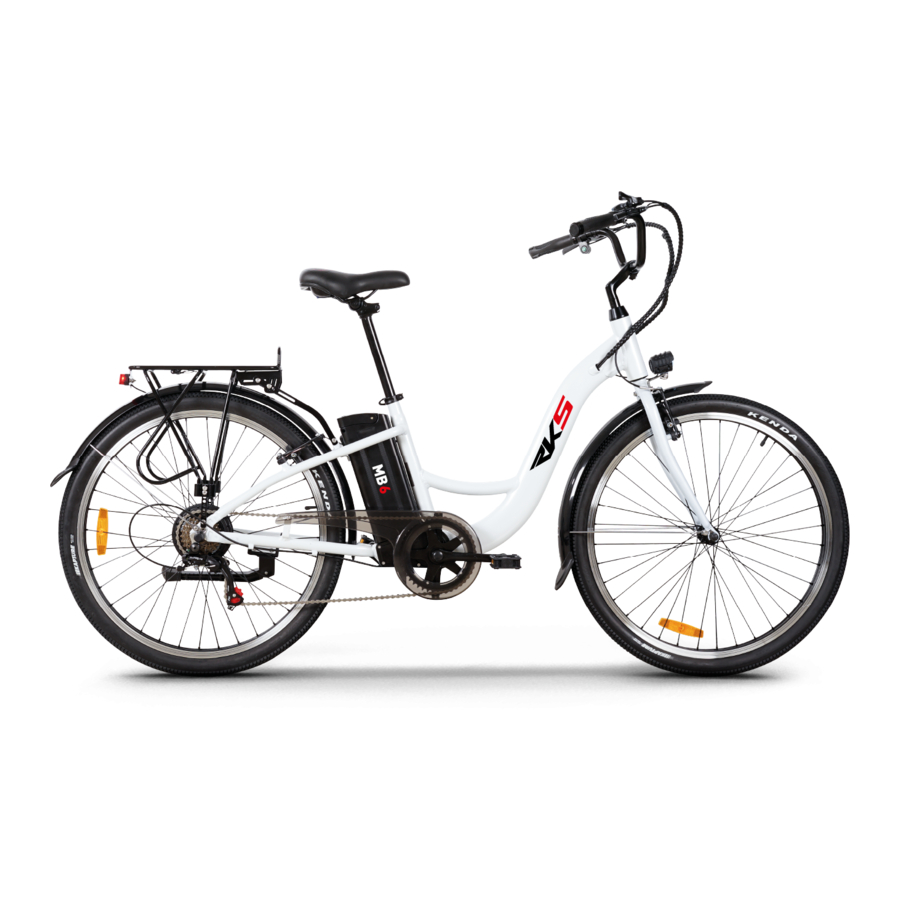

RKS MB6 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

MB6
USER MANUAL
www.rksmotor.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MB6 and is the answer not in the manual?

Questions and answers

Related Manuals for RKS MB6

Summary of Contents for RKS MB6

  • Page 1 USER MANUAL www.rksmotor.eu...

  • Page 2: Table Of Contents

    TABLE OF CONTENT 1. Matters Needing Attention to Users 2. Riding Safely 3. Check Before Driving 4. Structure and Technical Parameters of Complete Vehicle 5. Profile for Characteristic of Product 6. Method of Adjustment of All Parts 7. About Charging 8.
  • Page 3 PREFACE Dear Users; Our company makes RKS brand electric bicycle become a kind of environmental protection type leisure traffic tool instead of walk with elegant, beautiful shape and modern luxurious feeling by virtue of novel management model, abundant technical force, perfect quality system, first-class workmanship equipment and an excellent professional team of technology.

  • Page 4: Matters Needing Attention To Users

    5.Please don't detach and disassemble spare parts or rebuild electric bicycle by itself, please purchase standard spare parts from the dealer RKS MOTOR EUROPE brand electric bicycle if to replace spare parts. Please repair timely if find power-cut don't happen when do a front or rear brake.

  • Page 5: Riding Safely

    RIDING SAFETY General Rules Always wear an approved helmet when riding your bike, and follow the helmet manufacturer's instructions for fit, Ÿ use and care of your helmet. When riding obey the same road laws as all other road vehicles, including giving way to pedestrians, and stopping Ÿ...
  • Page 6 RIDING SAFETY Night Riding Ensure that the front lights are on. Ÿ Wear reflective and light coloured clothing. Ÿ Ride at night only if necessary. Slow down and use familiar roads with street lighting, if possible. Ÿ Battery Use Caution Do not short circuit.
  • Page 7 FIND THE MOTOR NUMBER AND FRAME NUMBER Please find the “frame number” & “motor number” according to the next instruction of picture.

  • Page 8: Check Before Driving

    WARNING WARNING! The product is not allowed to use by handicapped people! Check Before Driving Please do a check before driving in order to ensure your safety of driving Open power lock, check whether all indication of bicycle head is normal, brake power cut is effective? Ÿ...

  • Page 9: Structure And Technical Parameters Of Complete Vehicle

    STRUCTURE AND TECHNICAL PARAMETERS OF COMPLETE VEHICLE Structure and Technical Parameters of Complete Vehicle There can be differences between the illustrated vehicles and the vehicles in real. Standart EN15194:2017 Eng ne Type Brushless Eng ne Max mum Motor Rated Power - Watt 250W Motor Rated Voltage - V Speed...
  • Page 10 STRUCTURE AND TECHNICAL PARAMETERS OF COMPLETE VEHICLE Rear T re/Tubes Headset Rearwheel Spoke Front Forks Rear D sc Brake Front Brake Freewheel Left Brake Lever Dera lleur R ght Brake Lever Cha n Sh fter Rear Reflector LED Meter Seat Clamps Seat Tubes Wheel Reflector Saddles...

  • Page 11: Profile For Characteristic Of Product

    PROFILE FOR CHARACTERISTIC OF PRODUCT Tri-dimensional design body is carried out a scientific design to get the best riding effect according to body Ÿ engineering and esthetics. Light, simple and elegant shape, exquisite selection of parts and materials make you get more comfortable driving Ÿ...
  • Page 12 PROFILE FOR CHARACTERISTIC OF PRODUCT Adjustment of Saddle Inserted depth of saddle tube should be more than minimum depth of insert (safety Ÿ mark is for reference of minimum depth) to ensure the safety. Loosen the clamping screw of saddle and put into saddle tube, tighten the screw Ÿ...

  • Page 13: Method Of Adjustment Of All Parts

    METHOD OF ADJUSTMENT OF ALL PARTS Adjustment on Tightness of the Chain When adjusting the chain, please first loose the nut of back shaft and then adjust the screw of chain-adjusting screw, making the tightness of the chain in a proper degree and agile driving motion. Back wheel should be placed in the position of central symmetry.

  • Page 14: About Charging

    ABOUT CHARGING Ÿ Before riding the electric bike for the first time, you must charge the batteries for 4-6 hours using the supplied charger. To charge, remove the protective cover from the charging socket. Then plug in the charger into the charging socket, before plugging the charger into a wall outlet.
  • Page 15 ABOUT CHARGING Open the dust cap, then plug in Battery Indictor Shows the Electricity Allowance. Green: the battery is fully charged. Orange: the battery is declining Red: only 20% is left. Connect your charger. LED Indicator of the Charger: Blue：Power is connected. Please connect the charger Red：Charging Green：Charged...
  • Page 16 ABOUT CHARGING When the Battery is Being Removed for Charging After the battery box is removed, as we mention before, please notice that the electrode “+” “-”can never be touched by hands especially wet hands and the electrodes are also prohibited to be touched by other metal conductor! Do not charge the battery up-side down, otherwise the life time of the battery will be severely affected.
  • Page 17 ABOUT CHARGING Duration of Charging When the input and output terminal are connected, the red indication light of the charger will be turned on, showing Ÿ that the power is being connected. When the battery is charged for the first time, 8-10 hours should be spent for charging. When the green indication Ÿ...
  • Page 18 ABOUT CHARGING Preparation Before Powering on Make sure you have your connector tightly connected, and then switch the power on. Powering on and Entering Into Settings Press Power button to switch on. Press + and –at the same time to set parameter after powering on..

  • Page 19: About Riding

    ABOUT RIDING When a failure of the electric system occurs, a failure code will show on the display screen. See as follows: code INDICATOR E0: Communication failure between the meter and thecontroller E1: Excessive temperature of the controller E2: Temperature sensor failure E3: Current sensor failure E6: System initializing failure E7: System failure...
  • Page 20 ABOUT RIDING Once you have completed the initial charge you are ready to ride. You must be aware of all local laws and ordinances that govern and/or restrict the use of electric bicycle. The laws and ordinances vary greatly from municipality to municipality.

  • Page 21: Maintenace And Service

    MAINTENANCE AND SERVICE The controller of the bike has the function of over-load protection. If it is over-loaded, the power will be cut Ÿ automatically, when everything goes back to normal, the power will be connected automatically. During driving, it should be avoided turn ng pedal handle after braking, to prevent damaging the machine part or Ÿ...

  • Page 22: Troubles And Solutions

    MAINTENANCE AND SERVICE Check whether the gear system is working smoothly or not. Ÿ Check whether the horn and back reflector are intact or not. Ÿ Check whether the braking thread is working under lubrication and there is no clamping stagnation. Ÿ...
  • Page 23 MAINTENANCE AND SERVICE Descr pt on of Malfunct on Analys s of Malfunct on Way of El m nat ng (1) charge the battery Fail to adjust the speed or max (2) clamp after welding (*) (1) low voltage of battery (3) look for projectionists or speed is relatively slow maintenance station.
  • Page 24 MAINTENANCE AND SERVICE Descr pt on of Malfunct on Analys s of Malfunct on Way of El m nat ng (1) tighten socket and (1) socket of charger falls off or connector(*) loose between plug and socket (2) change the fuse Charger doesn't charge (2) burnt fuse in battery box (3) welding the connection...

  • Page 25: Special Hints

    SPECIAL HINTS Representation of Oiling Position Prohibited Oiling position required (to oil it once at the interval of 1~2months) Ÿ Replace lubricating grease of front shaft and middle shaft once at the interval of 2 years. Ÿ Chain should be added machine oil every year after it is cleaned by gasoline. Ÿ...
  • Page 26 REGULAR MAINTENANCE Inspection items 2 Months 6 Months 12 Months 18 Months 24 Months Tightness of the head set T ghten Check, Lubr cate Check, Lubr cate Check, Lubr cate Check, Lubr cate Check, Lubr cate Tightness of the front and back hubs T ghten Check, Lubr cate Check, Lubr cate...
  • Page 27 REGULAR MAINTENANCE Lubricating: Front and back hub, axles, and headsets; usually, solid lubricating grease is used; for some sophisticated parts, liquid lubricating oil is suggested. Or, you can use more specific oil for parts like chains. Adjustment: Adjust relative parts according to your habits for a better riding experience. Replacement: For damaged or worn parts Regular Check: Brakes, tire pressure, lever, and lighting.
  • Page 28 ABOUT SEALER AND INFORMATION CARD Purchase Record Card F ll n mmed ately and reta n as a record of your purchase * Please reta n your sales rece pt for any poss ble warranty cla ms Your Name: Address: Date Purchased: Place of Purchase: Model &...
  • Page 29 Manufacturer Kuba Otomotiv İnşaat Sanayi ve Ticaret A.Ş. www.rksmotor.eu RKS; reserves the right to process the product specifications, color and permits.
