Summary of Contents for Iiyama G-MASTER OB276OQSU

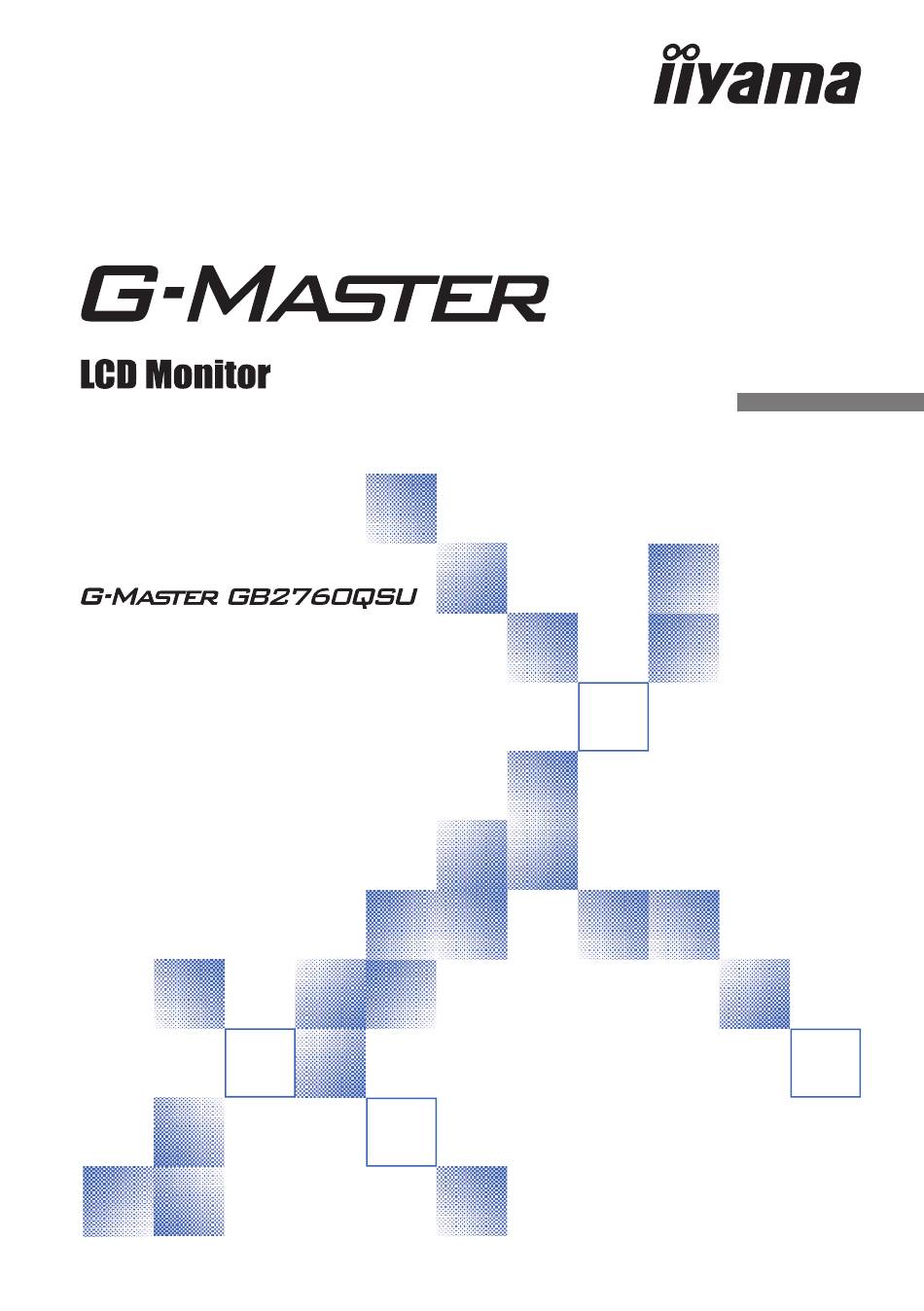

- Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for...
- Page 3 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PL2760Q We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of different countries from there.
-
Page 4: Table Of Contents
TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS..............1 SPECIAL NOTES ON LCD MONITORS .........3 CUSTOMER SERVICE ..............3 CLEANING ..................3 BEFORE YOU OPERATE THE MONITOR ..........4 FEATURES..................4 CHECKING THE CONTENTS OF THE PACKAGE ......4 INSTALLATION ................5 FITTING AND REMOVAL OF BASE ..........7 CONTROLS AND CONNECTORS..........9 CONNECTING YOUR MONITOR ..........10 COMPUTER SETTING .............. -
Page 5: For Your Safety
DO NOT PUT ANY OBJECT INTO THE MONITOR Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fire, electric shock or damage. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located. Please also ensure that you do not place any heavy objects on the monitor, and that all cables are routed such that children may not pull the cables and possibly cause injury.
-
Page 7: Special Notes On Lcd Monitors
If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. For safety reasons, turn off the power switch and unplug the monitor before you CAUTION clean it. -
Page 8: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office. Power Cable* ... -
Page 9: Installation
INSTALLATION WARNING Before installation, make sure the display arm or desk arm stand is strong enough to hold the necessary weight of the display and the mount. Angle adjustment range : 22 degrees upward and 5 degrees downward <... - Page 10 < ROTATING THE DISPLAY > The monitor is designed to be compatible with both landscape and portrait modes. Video card for portrait display will be required for rotating the image on the screen. Available Not Available Power Indicator Landscape Power Indicator Portrait With Stand: Adjust the monitor’s height before panel rotation.
-
Page 11: Fitting And Removal Of Base
FITTING AND REMOVAL OF BASE Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. ... - Page 12 <Removing the stopper> Place the monitor upright on a flat, stable surface. 1. Remove the tape. 2. Push down the monitor head. 3. Remove the stopper. 8 BEFORE YOU OPERATE THE MONITOR...
-
Page 13: Controls And Connectors
CONTROLS AND CONNECTORS <Front> <Back> Power Indicator NOTE Blue: Normal operation Orange: Standby mode Power Switch ( Menu / Select Button (ENTER) Scroll Up / Volume Button ( Scroll Down / ECO Mode Button ( Exit Button (EXIT) Input Select Button (INPUT) Speakers USB Downstream Connector ( , 5V, 900mA) -
Page 14: Connecting Your Monitor
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. -
Page 15: Computer Setting
COMPUTER SETTING Signal Timing Change to the desired signal timing listed on page 24: COMPLIANT TIMING. ADJUSTING THE HEIGHT AND THE VIEWING ANGLE For optimal viewing it is recommended to position yourself directly opposite to the full face of the monitor, then adjust the monitor’s height and angle to your own preference. -
Page 16: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 24. You are also able to adjust the picture by following the button operation shown below. -
Page 17: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Picture Adjust Adjustment Item Problem / Option Button to Press Too dull Contrast * Too intense Too dark 1,2,3 Brightness * Too bright Off / -2 / -1 / 0 / +1 / +2 Overdrive It will improve the gray level response time of the LCD panel. A higher level results in a faster response time. - Page 18 Input Select Adjustment Item Problem / Option Button to Press Select the Digital (DVI) input. HDMI Select the Digital (HDMI) input. Input Select Direct DisplayPort Select the Digital (DisplayPort) input. Search for an available input source and select Auto automatically. Input source is fixed, not selected automatically when DVI, HDMI and DisplayPort which NOTE are selected.
- Page 19 Store User Setting Adjustment Item Problem / Option Button to Press User Mode 1 Save the settings of the screen adjustment. User Mode 2 Save the settings of the screen adjustment. Store User Setting User Mode 3 Save the settings of the screen adjustment. You can memorize your customized monitor settings.
- Page 20 Image Adjust Adjustment Item Problem / Option Button to Press Return to a state set by color adjustment except i-Style Color. For general windows environment and monitor Standard default setting. Sport Game For Sports game environment. FPS Game For FPS game environment. i-Style Color * Strategy Game For Strategy game environment.
- Page 21 OSD is too high You can set the OSD display duration time between OSD Time Out 5 and 30 seconds. iiyama Logo does not display when the monitor is turned on. Opening Logo iiyama Logo displayed when the monitor is turned on.
- Page 22 Display Information Displays information regarding the current input signal coming from the graphic card in your computer. Display Information 1 9 2 0 x 1 0 8 0 @ 6 0 H z See your graphic card user guide for more information about changing the NOTE resolution and refresh.
- Page 23 ● Lock Mode <OSD Menu> 1. The OSD lock will be activated by pressing the front button ENTER for about 10 seconds. If you try to access the OSD by pressing any of the buttons, message "OSD Locked" will appear on the screen.
-
Page 24: Standby Feature
STANDBY FEATURE The standby feature of this product complies with power saving requirement of VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a standby step the monitor takes as described below. -
Page 25: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 26: Recycling Information
A strange noise is The Audio Cable is properly connected. heard. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com for monitor recycling. 22 TROUBLE SHOOTING / RECYCLING INFORMATION... -
Page 27: Appendix
APPENDIX Design and specifications are subject to change without prior notice. SPECIFICATIONS Size Category 27" Panel technology Size Diagonal: 27" (68.5cm) Pixel pitch 0.233mm H × 0.233mm V Brightness 350cd/m (Typical) Panel Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left : 85° each, Up / Down : 80° each (Typical) Response time 1ms (Gray to Gray) Display Colors... -
Page 28: Dimensions
DIMENSIONS 613.5mm/24.2” 54.0mm/2.1” 609.0mm/24.0” 300.0mm/11.8” ) : Maximum adjustment range COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 640 × 480 31.469kHz 59.940Hz 25.175MHz 37.879kHz 60.317Hz 40.000MHz 800 × 600 46.875kHz 75.000Hz 49.500MHz 48.363kHz 60.004Hz 65.000MHz 1024 × 768 60.023kHz 75.029Hz 78.750MHz...
