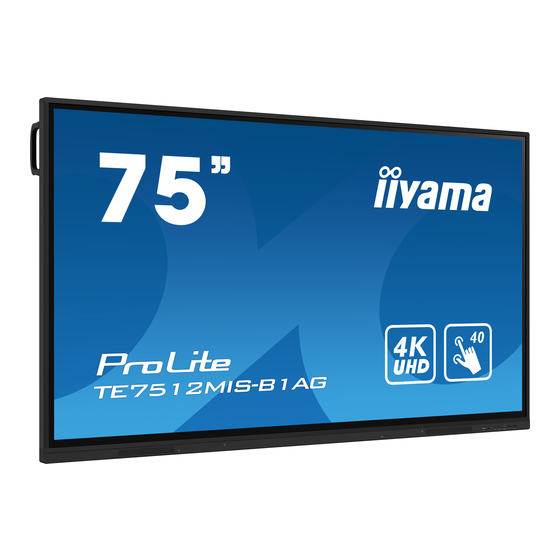

Iiyama ProLite TE7512MIS User Manual
  1. Manuals
  2. Brands
  3. Iiyama Manuals
  4. Monitor
  5. ProLite TE7512MIS
  6. User manual

Iiyama ProLite TE7512MIS User Manual

Hide thumbs Also See for ProLite TE7512MIS:
Table of Contents

Advertisement

Quick Links

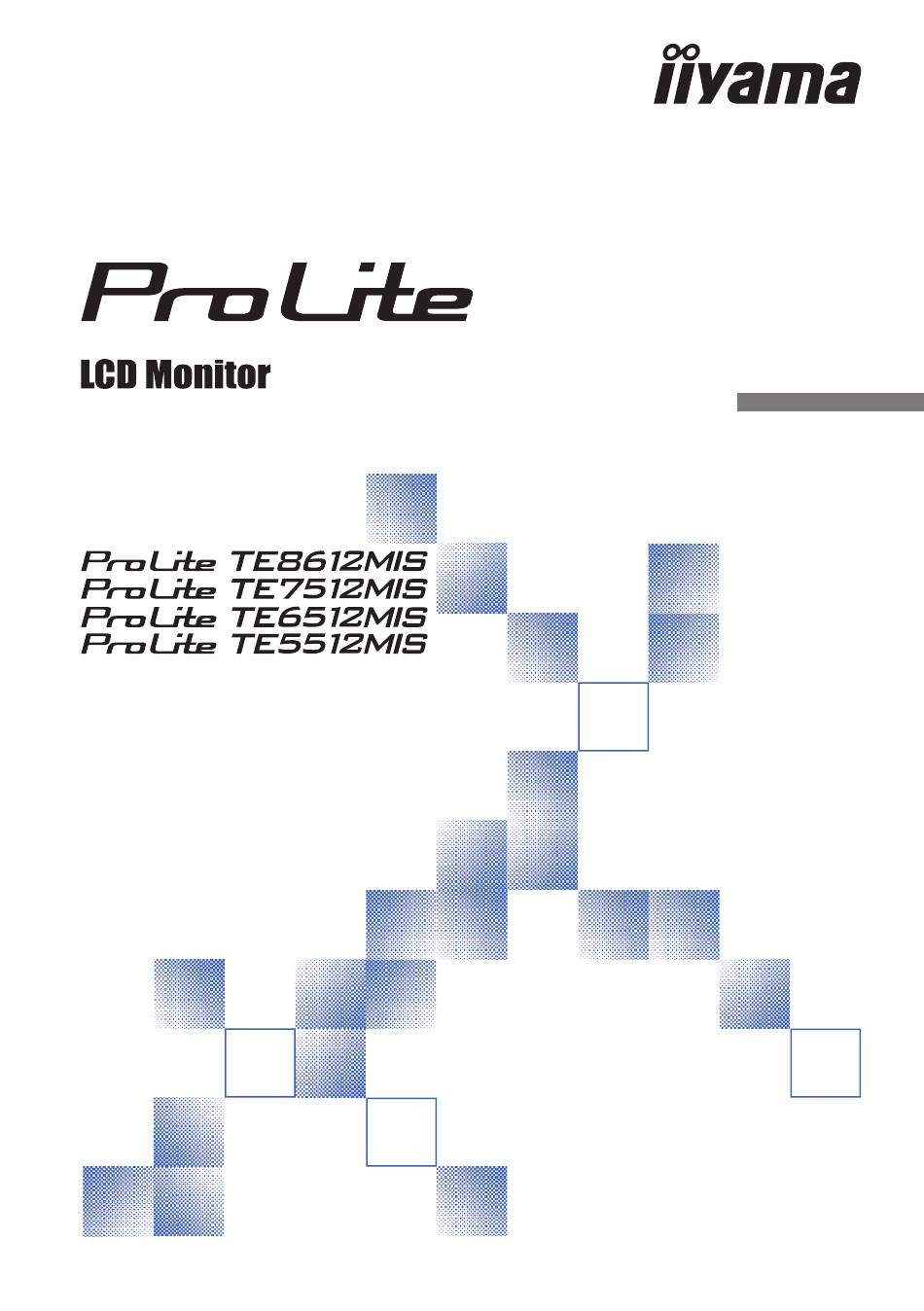

USER MANUAL
ENGLISH
Thank you very much for choosing the iiyama
LCD monitor.
We recommend that you take a few minutes
to read this comprehensive manual carefully
before installing and switching on the monitor.
Please keep this manual in a safe place for
your future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProLite TE7512MIS and is the answer not in the manual?

Questions and answers

Related Manuals for Iiyama ProLite TE7512MIS

Summary of Contents for Iiyama ProLite TE7512MIS

  • Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for...
  • Page 3 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PL8612U / PL7512U / PL6512U / PL5504U We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: https://iiyama.com...

  • Page 4: Table Of Contents

    STANDBY FEATURE ..............47 TROUBLE SHOOTING ..............48 RECYCLING INFORMATION .............49 APPENDIX ..................50 SPECIFICATIONS : ProLite TE8612MIS-B1AG ......50 SPECIFICATIONS : ProLite TE7512MIS-B1AG ......52 SPECIFICATIONS : ProLite TE6512MIS-B1AG ......54 SPECIFICATIONS : ProLite TE5512MIS-B1AG ......56 DIMENSIONS : ProLite TE8612MIS ..........58 DIMENSIONS : ProLite TE7512MIS ..........58 DIMENSIONS : ProLite TE6512MIS ..........59...

  • Page 5: For Your Safety

    DO NOT PUT ANY OBJECT INTO THE MONITOR Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fire, electric shock or damage.
  • Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located. Please also ensure that you do not place any heavy objects on the monitor, and that all cables are routed such that children may not pull the cables and possibly cause injury.

  • Page 7: Special Notes On Lcd Monitors

    SPECIAL NOTES ON LCD MONITORS  The following symptoms are normal with LCD monitors and do not indicate a problem. NOTE - When you first turn on the LCD monitor, the picture may not fit in the display area because of the type of computer that is used. In this case, adjust the picture position to the correct position. - You may find slightly uneven brightness on the screen depending on the desktop pattern you use.
  • Page 8 1 hour and there is evidence of a residual or “ghost” image, you should turn off the monitor for 1 hour in order to clear the residual image. For all LFD products, iiyama recommends displaying moving images and utilising a moving screen saver at regular intervals whenever the screen is idle. You could also turn off the monitor when not in use to assist the prevention.

  • Page 9: Customer Service

     If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. CAUTION  For safety reasons, turn off the power switch and unplug the monitor before you clean it.

  • Page 10: Before You Operate The Monitor

    CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office.  Power Cable* ...

  • Page 11: Unpacking

    UNPACKING CAUTION Moving the monitor requires at least two people. If not, it may drop and could result in a serious injury. SPECIAL NOTES ON THE TOUCH PANEL CAUTION Permanent damage can occur if Sharp Edged, Pointed or Metal items are used to activate Touch. This could invalidate any remaining warranty.

  • Page 12: Installation

    INSTALLATION CAUTION  Follow the manual instructions for the type of mount you have selected. Refer all servicing to qualified service personnel.  Moving the monitor requires at least two people.  Before installation, please make sure the wall is strong enough to hold the necessary weight of the display and the mount.
  • Page 13 [INSTALLATION NOTE] The touch kit of this monitor is an optical device that utilizes infrared light source and sensitive sensors for touch detection. Notice the incident light that contains large quantities of infrared light may affect touch screen operation and performance. Please install it with care as follows to ensure reliable touch performance.

  • Page 14: Controls And Connectors : Monitor

    CONTROLS AND CONNECTORS : MONITOR <Front> Power Off Power Button Pressing and holding the Power Button on the front for 3-5 seconds. White Normal Operation Standby Mode When the power indicator light is lighting red, the display is in Power Save Mode. To turn the screen back on, you can press the power button on the Power front or the remote control.
  • Page 15 <Back> SPEAKERS Speakers Option PC module slot Option PC module slot RS232C RS232C RS232C Connector 9pin RJ45 Connector (This network port is only used for RJ45 Android system) USB3.0 USB3.0 USB Connector (5V, 900mA) TOUCH1 (for HDMI1/ Touch USB Connector HDMI2/VGA) HDMI1 IN HDMI HDMI Connector HDMI2 IN HDMI OUT HDMI HDMI Connector USB2.0 USB2.0...

  • Page 16: Functions Of The Remote Control

    FUNCTIONS OF THE REMOTE CONTROL Turn the monitor ON and OFF. Number (1-9) / Under iiWare: 0-9 numeric input Other / Under Windows: 0-9 numeric input, Function (F1- Start/Space/ALT+Tab/ALT+F4/F1-12 F12) for Keyboard function Provide source and resolution Display information. Home Android system main screen button. Input Select the source.

  • Page 17: Preparing The Remote Control

    PREPARING THE REMOTE CONTROL To use the remote control, insert the two dry batteries. CAUTION  Do not use any other batteries other than those specified in this manual for the Remote Control.  Do not insert old and new batteries together in the Remote Control.  Make sure that the terminals match the "+" and "-" indications in the battery compartment. ...
  • Page 18 NOTE  Refer to the above instructions when taking out the batteries.  Replace with new batteries when the Remote Control does not work close to the monitor. Use AAA dry batteries. Risk of explosion if battery is replaced by an incorrect type. ...

  • Page 19: Basic Operation

    BASIC OPERATION  Turning the monitor ON The monitor is turned On and the Power Indicator turns to White when you press the Power Button on the monitor or the Remote Control. The monitor is turned Off and the Power Indicator turns to Red when you press the Power Button on the monitor or the Remote Control. Press again to turn On the monitor.
  • Page 20  Move the cursor vertically Select adjustment by pressing the Button on the remote control while the menu page is displayed on the screen. [Remote Control]  Move the cursor horizontally Select menu or setting, or perform the adjustment by pressing the Button on the remote control while the menu page is displayed on the screen.
  • Page 21  Adjust the volume of sound Press the VOL- / VOL+ Button on the remote control to adjust the volume of sound when the menu page is not displayed on the screen. [Remote Control]  Switch the input signal The Input setting menu appears on the screen when you press the Input Button on the remote control.

  • Page 22: Connecting Your Monitor

    An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office.
  • Page 23 * VGA cable is not supplied with the monitor. If you use low quality VGA cable, it may cause a result of electro-magnetic interference. Please contact the iiyama Support Centre in your country if you wish to connect the monitor via the VGA input.
  • Page 24 [ Connection example with the peripheral device ] CAUTION Turn off the power switch and unplug the monitor and peripherals before connection to avoid an electric shock or a damage. NOTE  Refer to the user manual of peripherals at the same time. ...

  • Page 25: Computer Setting

    COMPUTER SETTING  Signal Timing Change to the desired signal timing listed on page 60: COMPLIANT TIMING.  Procedure for turning ON the Power Switch Turn ON the monitor first, and then the computer.  MULTI-TOUCH : This monitor complies with DDC2B of VESA standard. (Plug&play compliant) The MULTI-TOUCH function runs on Windows7/8/8.1/10/11 by connecting the monitor to DDC2B compliant computer with the USB cable supplied.

  • Page 26: Operating The Monitor

    OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 60. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 44 for SCREEN ADJUSTMENTS.
  • Page 27 NOTE  The Back Button on the remote control can be used to return previous menu item.  Any changes are automatically saved in the memory when the On Screen Display disappears. Turning off the power should be avoided while using the Menu.  Adjustments for Image Position and Phase are saved for each signal timing. Except for these adjustments, all other adjustments have only one setting which applies to all signal timings.

  • Page 28: Adjustment Menu Contents

    ADJUSTMENT MENU CONTENTS You can also access the Menu by clicking on the desktop or on the navigation toolbar. Common settings Common settings iiWare HDMI1 HDMI2 Type-C HDMI3 Adjustment Item Problem / Option Button to Press Select the PC input. Select the iiWare input.
  • Page 29 Audio setting Audio Screen Display Adjust Volume Bass Treble Balance Mute Standard Meeting Class Custom Adjustment Item Problem / Option Button to Press Too soft Volume Direct Too loud Too weak Bass Too strong Too weak Treble Too strong Left side speaker louder Balance Right side speaker louder Standard...
  • Page 30 Screen setting Audio Screen Display Adjust Pixel Shift Eye Care Auto Light Adjustment Item Problem / Option Displays all picture in 4:3 aspect ratio. Displays all picture in 16:9 aspect ratio. Aspect ratio 16:9 Display the picture point to point. PTP * The screen image will move around slightly every 2 minutes.
  • Page 31 Display setting Audio Screen Display Adjust Brightness Contrast Sharpness Standard Bright Soft Custom Standard Cold Warm Adjustment Item Problem / Option Button to Press Too dark Brightness* Too bright Too dull Contrast Too intense Not available for this model. Sharpness Not available for this model.
  • Page 32 Adjust setting * Audio Screen Display Adjust H Position V Position Phase AUTO PHASE Adjustment Item Problem / Option Button to Press Too far to the left H Position Too far to the right Too low V Position Too high Phase To correct flickering text or lines Auto phase *...
  • Page 33 [Debug Menu] * Available for Remote Control only. Input + 2580  Initial Touch Panel The default settings will be restored.  Unknown sources: On / Off Enables / disables Unknown sources.  iiWare Enable: On / Off Enables / disables Kiosk mode.  HDMI OUT Enable: On / Off Enables / disables HDMI OUT function.
  • Page 34 : Click to display the Hotspot settings. : Displayed when WiFi module is inserted. Click to display the WiFi Settings. 04:53(Clock) : Click on the clock display to display the Date & Time of Settings. xxxxxx : When connecting a LAN or Option WiFi module, the password for a notebook or a smartphone, etc. to connect to iiyama Share, is displayed on the screen. (Automatically generated) 30 OPERATING THE MONITOR...
  • Page 35 Settings ] Adjustment Item Problem / Option Set the WiFi function On / Off and pairing to WiFi device. WiFi* Set the wired network. Ethernet Ethernet : On / Off, Obtain IP Address Automatically : On / Off, IP address, Default gateway, Netmask, DNS, Proxy Set the Hotspot function. Hotspot* Hotspot : On/Off, Hotspot Name, Password Wireless & Bluetooth* Set the Bluetooth function On / Off and pairing to Bluetooth device. Network Set the VPN. Share Share Network to connected device via touch USB cable. Network SAMBA Enable SAMBA Server function.
  • Page 36 HDMI1 / HDMI2 / HDMI3 / Type-C / VGA Standby after startup (black screen) : Turn off the backlight. Startup channel NOTE Press the Screen Off button on the remote control or touch the screen to System return to the screen. Start up iiyama Logo displayed when the logo monitor is turned on. Energy Saving Enable : On / Off Auto Screen off : Enable the Auto screen off function. (Never / 15 mins / 30 mins / 60 mins / 90mins / 120 mins) Startup Auto Power off : Enable the Auto power off function. & (Never / 30 mins / 60 mins / 90mins / 120 mins /...
  • Page 37 Export to signage folder under USB/SD. Export USB storage / SD card Select Startup Item Administrator (None / URL Browser / Browser / Browser / iiyama Default Account / iiyama Class / iiyama DMS / Cloud Startup Kiosk Mode Drive / ESharePro / Finder /iMirror / Keeper / Note Item / Palette / PIP / Settings / Visualizer / WPS Office) Kiosk Mode Set the Kiosk Mode On/Off.
  • Page 38 : Finder : Browser : All Apps (Clean, Browser, Browser, iiyama Account, Cloud Drive, EShare Pro, Finder, iiyama Class, iiyama DMS, iiyama Share, iMirror, Keeper, Note, Palette, Settings, Viualizer, WPS Office) - Tools - You can customize up to 4 tools from "More" to the navigation bar.
  • Page 39 Smartphone works as a Mouse/Touchpad for the screen. Airplay/Chromecast: The device without installed iiyama Share app can still connect to iiyama Share via Airplay/Chromecast. (Compatibility is not guaranteed) Miracast: The device without installed iiyama Share app can still connect to iiyama Share via miracast. (Compatibility is not guaranteed) : Crop (Screen Capture) Freedom size...
  • Page 40 - Move - Move by long-pressing the icon and dragging and dropping. - Remove - Remove it by long-pressing the icon and clicking Remove from the menu. * Available after login in iiyama account. Multi-Windows  To use the Multi-Windows feature, first turn on Settings > Personal > Multi-Window Mode. - Resize Windows to display 4 apps on the screen at the same time.
  • Page 41 <How to use AirClass> The teacher click the AirClass. Use the device to scan the QR code. (device: Android and mobile device on the same network) The students can also join the class by entering the URL in browser. After all students have joined the class, click "ENTER THE CLASS". Answer 1.
  • Page 42 [Note] This is a writing software. Can write the characters, Lines and pictures like a whiteboard. Also, can insert an image or file. Click with the touch pen. - Tools - Menu: Display menu of Note. New: Save the Note writing and open a new Note. Open: Open the file. Save: Save the current document to image format to file browser. Import: Import the picture. (IMG/PDF/SVG) Export : Export as IMG/PDF/SVG/IWB. Cloud Storage: Google Drive / One Drive Save to Cloud Drive Users can save notes and annotations in Note directly to one of the cloud drives by clicking on the Cloud Storage icon in the...
  • Page 43 : To the previous page. : To the next page. : Page number - Extension function of the pen - After selecting the handwriting, the handwriting can be turn to intelligent text and for further processing. Tools : Color, Smartwrite, Search, Flip, Top, Clone, Delete - Image expansion function - After selecting the image, the image can be transformed into vector image, and the image can be mirrored.
  • Page 44 [Finder (File Browser)] Click with the touch pen. Browse the files stored in the internal storage device, the USB storage, Public Cloud, Remote File and your Cloud storage.  Supported Format DOC : PPT, Word, Excel, PDF (Open the file by using the WPS Office) Note : Note files, screenshot Movie : .3g2 .3gp .avi .flv .f4v .mkv .mov .mp4 .VOB .mpg/.MPEG .ts Picture : .jpg .jpeg .png .bmp .gif Music : .aac .ape .flac .m4a .mp3 .ogg .wav - Tools - : Search : Minimization : Maximization / restoration : Exit : Grid : List : Sort (Sorts Name, Time, Size, Type.)
  • Page 45 My Files "My files" folder will be created in your OneDrive or Google Drive once connected to your iiyama account. Public Cloud (Google Drive / One Drive) Save to Cloud Drive Users can save notes and annotations in Note directly to one of the cloud drives by clicking on the Cloud Storage icon in the menu. To change the way files are saved to the Cloud Drive, users can select two options in the cloud storage overview.
  • Page 46 [Browser (Web Browser)] Connect the network, and browse the web. Click with the touch pen. [iiyama Account] This is a single sign-on authentication scheme for customer identity and access management. Click with the touch pen. [Cloud Drive] Connect the network, and the Cloud Drive.
  • Page 47 [Visualizer] Visualizer is an app that allows users to connect webcam or visualizer(document camera) for capturing live instructions or physical materials and then projecting them onto a display for viewing and annotating. Click with the touch pen. [WPS Office] This is the software to use the file of the Office. Double click with the touch pen.

  • Page 48: Screen Adjustments

    Perform the Auto Adjust first when the monitor is connected to a new computer, or resolution is changed. If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the iiyama web site (https://iiyama.com). Adjust the image by following the procedure below to get the desired picture. ®...
  • Page 49 Perform the Auto Adjustment. Adjust the image manually by following procedure below when the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust. Adjust the V Position so that the top and bottom of the picture frame will fit to the display area.
  • Page 50 Adjust the Phase to correct horizontal wavy noise, flicker or blur in the zebra pattern. NOTE  In case the strong flicker or blurs remain on a part of the screen, repeat steps because the Clock may not be adjusted correctly.  Adjust the H Position after the Phase adjustment if the horizontal position moves during the adjustment. Adjust the Brightness and Color to get the desired picture after you complete the Clock and Phase adjustments.

  • Page 51: Standby Feature

    STANDBY FEATURE  Standby Mode When the video signal from the computer is off, the monitor enters into Standby Mode which reduces the power consumption to less than 0.5W. The screen becomes dark, and the power indicator turns to red. From Standby Mode, the image reappears in several seconds when either the keyboard or the mouse are touched again.

  • Page 52: Trouble Shooting

    MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem...

  • Page 53: Recycling Information

    The touch position  The calibration function set up correctly. does not deviate. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: https://iiyama.com for monitor recycling. TROUBLE SHOOTING / RECYCLING INFORMATION 49...

  • Page 54: Appendix

    APPENDIX Design and specifications are subject to change without prior notice. SPECIFICATIONS : ProLite TE8612MIS-B1AG Technology IR Touch 40points Light transmission Hardness Touch Thickness Screen Communication USB serial transfer system Response time 10ms Size Category 86" Panel technology Size Diagonal: 85.6" (217.427cm) Pixel pitch 0.4935mm H × 0.4935mm V 350cd/m (Typical: with Glass), 390cd/m (Typical: without Glass) Brightness Panel...
  • Page 55 Speakers Internal: 2 Typical: 16W (Stereo speakers) iiWare Version V10.0 (Android 11.0 OS) Maximum Screen Size 1895.0mm W × 1066.0mm H / 74.6" W × 42.0" H Power Source 100-240VAC, 50/60Hz, 5.5A 215W typical Power Consumption* Standby Mode: 0.5W maximum, Off mode: 0.3W maximum 1957.0 × 1160.0 × 100.0mm / 77.0 × 45.7 × 3.9" (W×H×D) Dimensions / Net Weight 58.6kg / 129.2lbs Operating: Temperature 0 to 40°C / 32 to 104°F Humidity 10 to 90% (No condensation) Environmental...

  • Page 56: Specifications : Prolite Te7512Mis-B1Ag

    SPECIFICATIONS : ProLite TE7512MIS-B1AG Technology IR Touch 40points Light transmission Hardness Touch Thickness Screen Communication USB serial transfer system Response time 10ms Size Category 75" Panel technology Size Diagonal: 74.52" (189.273cm) Pixel pitch 0.4296mm H × 0.4296mm V 350cd/m (Typical: with Glass), 390cd/m (Typical: without Glass) Brightness...
  • Page 57 Speakers Internal: 2 Typical: 16W (Stereo speakers) iiWare Version V10.0 (Android 11.0 OS) Maximum Screen Size 1650.0mm W × 928.0mm H / 65.0" W × 36.5" H Power Source 100-240VAC, 50/60Hz, 4.0A 120W typical Power Consumption* Standby Mode: 0.5W maximum, Off mode: 0.3W maximum 1709.5 × 1020.0 × 88.0mm / 67.3 × 40.2 × 3.5" (W×H×D) Dimensions / Net Weight 47.3kg / 104.3lbs Operating: Temperature 0 to 40°C / 32 to 104°F Humidity 10 to 90% (No condensation) Environmental...

  • Page 58: Specifications : Prolite Te6512Mis-B1Ag

    SPECIFICATIONS : ProLite TE6512MIS-B1AG Technology IR Touch 40points Light transmission Hardness Touch Thickness Screen Communication USB serial transfer system Response time 10ms Size Category 65" Panel technology Size Diagonal: 64.5" (163.896cm) Pixel pitch 0.372mm H × 0.372mm V 350cd/m (Typical: with Glass), 390cd/m (Typical: without Glass) Brightness Panel 275cd/m (Default / Energy Saving)
  • Page 59 Speakers Internal: 2 Typical: 16W (Stereo speakers) iiWare Version V10.0 (Android 11.0 OS) Maximum Screen Size 1428.5mm W × 803.5mm H / 56.2" W × 31.6" H Power Source 100-240VAC, 50/60Hz, 4.0A 125W typical Power Consumption* Standby Mode: 0.5W maximum, Off mode: 0.3W maximum 1488.5 × 896.5 × 87.5mm / 58.6 × 35.3 × 3.4" (W×H×D) Dimensions / Net Weight 35.0kg / 77.2lbs Operating: Temperature 0 to 40°C / 32 to 104°F Humidity 10 to 90% (No condensation) Environmental...

  • Page 60: Specifications : Prolite Te5512Mis-B1Ag

    SPECIFICATIONS : ProLite TE5512MIS-B1AG Technology IR Touch 40points Light transmission Hardness Touch Thickness Screen Communication USB serial transfer system Response time 10ms Size Category 55" Panel technology Size Diagonal: 54.6" (138.8cm) Pixel pitch 0.315mm H × 0.315mm V 350cd/m (Typical: with Glass), 390cd/m (Typical: without Glass) Brightness Panel 270cd/m (Default / Energy Saving)
  • Page 61 Speakers Internal: 2 Typical: 16W (Stereo speakers) iiWare Version V10.0 (Android 11.0 OS) Maximum Screen Size 1209.6mm W × 680.4mm H / 47.6" W × 26.8" H Power Source 100-240VAC, 50/60Hz, 3.5A 105W typical Power Consumption* Standby Mode: 0.5W maximum, Off mode: 0.3W maximum 1271.0 × 774.0 × 87.0mm / 50.0 × 30.5 × 3.4" (W×H×D) Dimensions / Net Weight 26.1kg / 57.5lbs Operating: Temperature 0 to 40°C / 32 to 104°F Humidity 10 to 90% (No condensation) Environmental...

  • Page 62: Dimensions : Prolite Te8612Mis

    DIMENSIONS : ProLite TE8612MIS 1021.5mm/40.2” 4xM8 SCREW HOLE 1957.0mm/77.0” (VESA MOUNT) 4 - R8 1924.0mm/75.7” 800.0mm/31.5” DIMENSIONS : ProLite TE7512MIS 1149.5mm/45.3” 4xM8 SCREW HOLE 1709.5mm/67.3” (VESA MOUNT) 4 - R8 800.0mm/31.5” 1676.5mm/66.0” 58 APPENDIX...

  • Page 63: Dimensions : Prolite Te6512Mis

    DIMENSIONS : ProLite TE6512MIS 938.0mm/36.9” 4xM8 SCREW HOLE 1488.5mm/58.6” (VESA MOUNT) 4 - R8 1455.5mm/57.3” 600.0mm/23.6” DIMENSIONS : ProLite TE5512MIS 938.0mm/36.9” 4xM8 SCREW HOLE 1271.0mm/50.0” (VESA MOUNT) 4 - R8 1233.0mm/48.5” 400.0mm/15.7” APPENDIX 59...

  • Page 64: Compliant Timing

    COMPLIANT TIMING Timing VGA 640x480 31.5 60.0 25.175 SVGA 800x600 37.9 60.0 40.000 XGA 1024x768 48.4 60.0 65.000 WXGA 1280x768 47.8 60.0 79.500 QVGA 1280x960 60.0 60.0 108.000 SXGA 1280x1024 64.0 60.0 108.000 VESA HD FWXGA 1366x768 47.7 60.0 85.500 CVT 1400x900 55.9 60.0...
