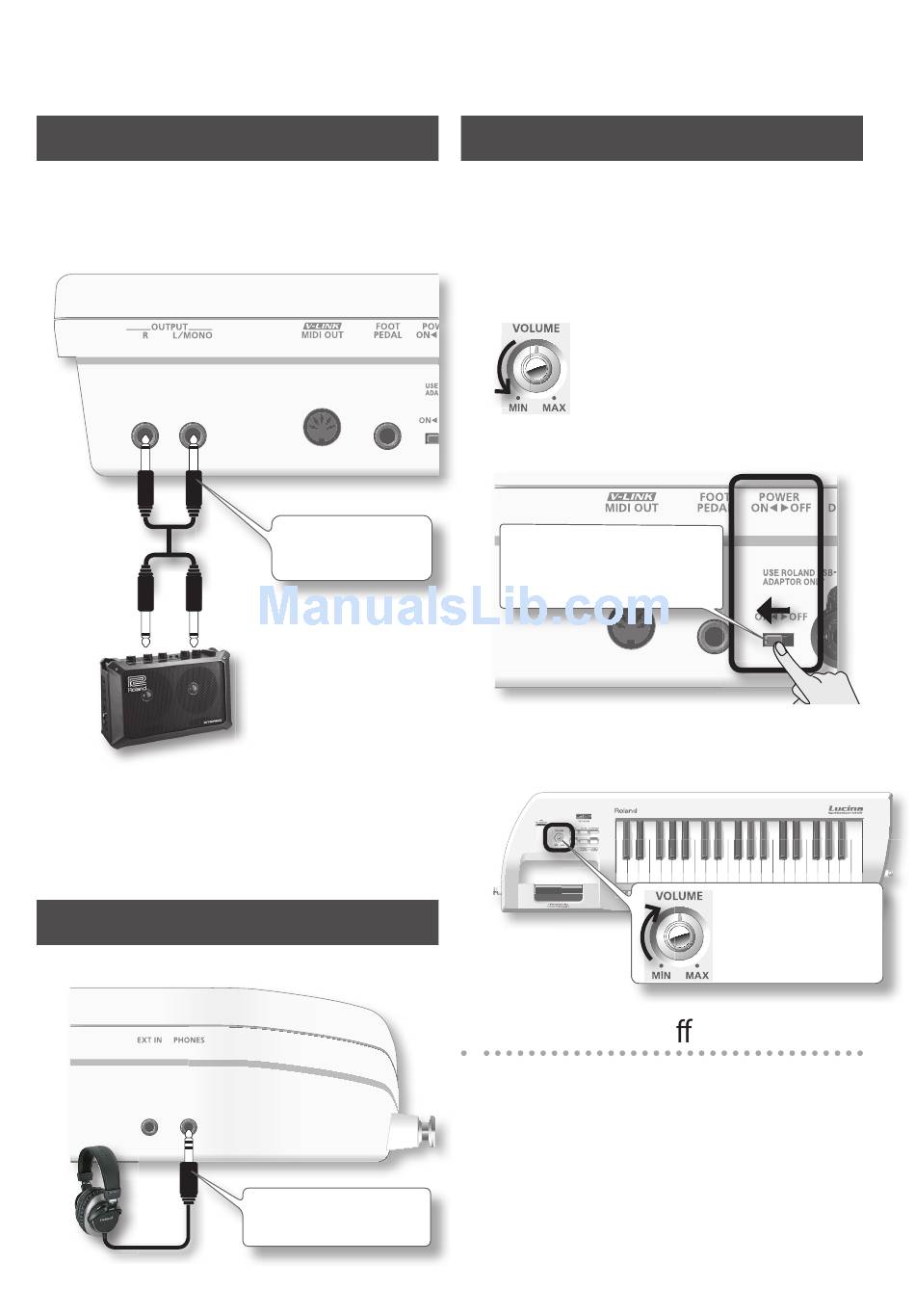

Connecting Your Speakers

The Lucina AX-09 does not contain an amp or speakers .
In order to produce sound, you'll need to connect the
rear panel OUTPUT jacks to an audio device such as an
amplifi ed speaker system (subsequently referred to as
"speakers"), or use headphones .
If you're outputting in monaural, connect only the L/
MONO jack .
* To.prevent.malfunction.and/or.damage.to.speakers.or.
other.devices,.always.turn.down.the.volume,.and.turn.off . .
the.power.on.all.devices.before.making.any.connections .

Connecting Your Headphones

Connect headphones to the rear panel PHONES jack .
8
Use audio cables (PCS series;
sold separately) to make
connections .
You can connect headphones that
have a stereo mini (1/8") plug .

Turning the Power On

* Once.the.connections.have.been.completed.(p ..8),.turn.
on.power.to.your.various.devices.in.the.order.specifi . ed ..
By.turning.on.devices.in.the.wrong.order,.you.risk.
causing.malfunction.and/or.damage.to.speakers.and.
other.devices .
1. Minimize.the.volume.of.the.Lucina.AX-09.and.your.
speakers .
2. On.the.Lucina.AX-09's.rear.panel,.turn.the.
. [ POWER].switch.ON .
This unit is equipped with a protection
circuit . A brief interval (a few seconds)
after power up is required before the unit
will operate normally .
3. Turn.on.the.power.of.your.speakers .
4. Use.the.. [ VOLUME].knob.to.adjust.the.volume.
appropriately .
Turning the Power O
1. Minimize.the.volume.of.the.Lucina.AX-09.and.your.
speakers .
2. Turn.off . .the.power.of.your.speakers .
3. Turn.the.Lucina.AX-09's.[POWER].switch.OFF .
While you play the keyboard
to produce sound, slowly turn
the [VOLUME] knob toward the
right, and adjust the volume
on the Lucina AX-09 and on
your speakers .
