Panel Descriptions

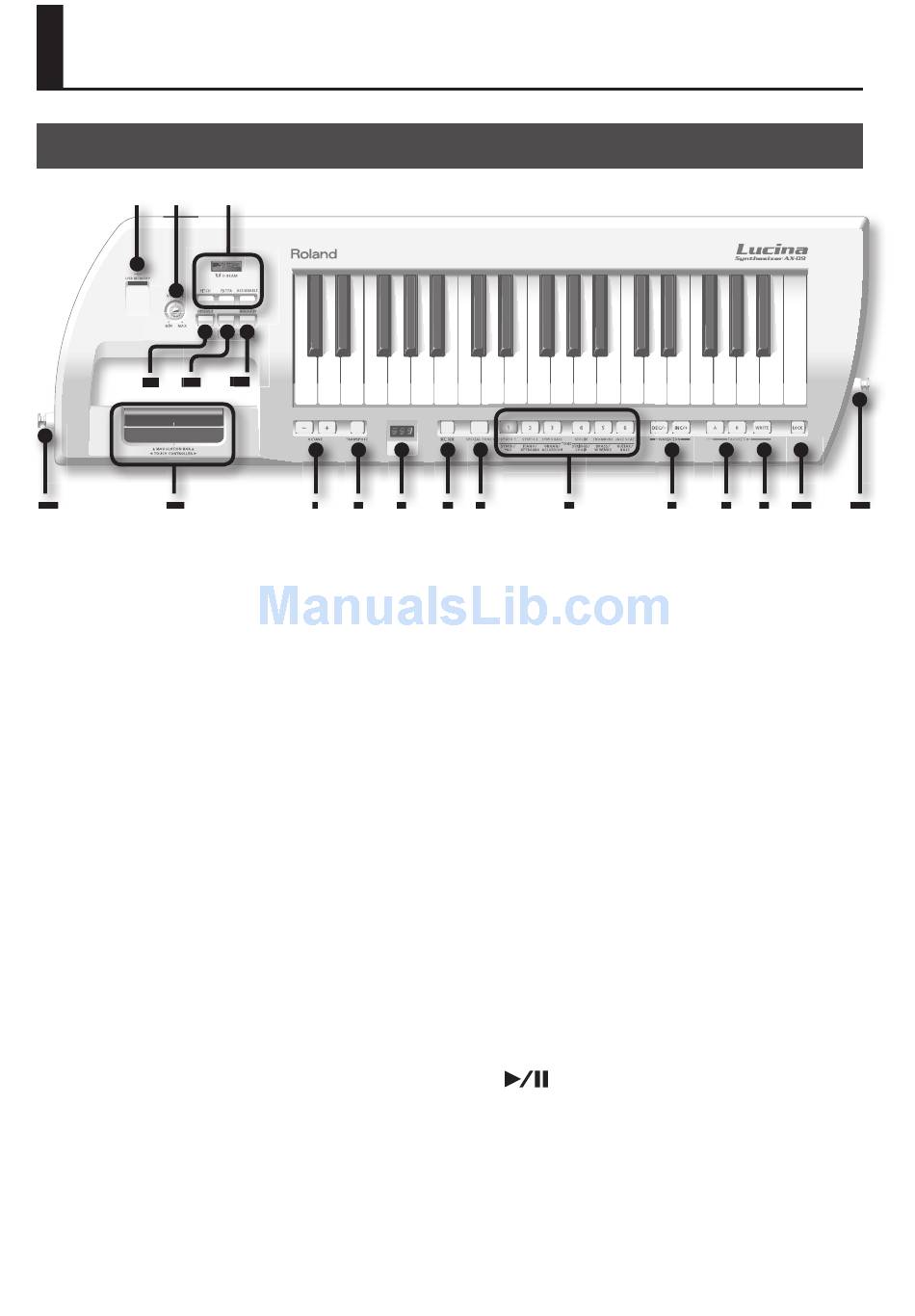

Front Panel

11 12
14 15 14 15 15
19 19 17 17
1. OCTAVE [+] / [–] Buttons
These buttons raise or lower the keyboard range in steps
of one octave (p . 11) .
2. [TRANSPOSE] Button
By holding down this button and pressing the OCTAVE [+],
[–] buttons you can raise or lower the keyboard range in
steps of one semitone (p . 11) .
3. Display
This shows the selected tone or mode, or the value of the
parameter you're editing .
4. [SHIFT] Button
Use this button in conjunction with other buttons to
execute various functions .
5. [SPECIAL TONE] Button
Press this to select special tones .
6. TONE [1]–[6] Buttons
Use these buttons to select the tone group for regular
tones, or to select special tones .
7. [INC/+] / [DEC/–] Buttons
Use these buttons to select variations of the regular tones .
8. FAVORITE [A] / [B] Buttons
Use these buttons to select the FAVORITE memory bank
(p . 10) in which you want to register a favorite tone .
9. [WRITE] Button
This button stores the Lucina AX-09 settings you've edited,
or the tone you registered in FAVORITE (p . 10, p . 18) .
4
13
16 16 16 16
1 1 2 2 3 3 4 5 4 5 6 6
10. [LOCK] Button
If this button is turned on, you won't be able to switch
tones . Use this to prevent the tone from being accidentally
switched during a performance (p . 14) .
11. USB MEMORY Slot
You can insert USB memory (sold separately) here (p . 15) .
12. [VOLUME] Knob
This knob adjusts the volume .
13. D Beam
[PITCH] / [FILTER] / [ASSIGNABLE] Buttons
These buttons turn the D Beam on/off .
By placing your hand above the D Beam you can apply
various eff ects to the sound (p . 12) .
14. [V-LINK] Button
This button turns V-LINK on/off (p . 21) .
15. [AUDIO PLAYER] Button
If you turn this on, you'll be able to play back audio fi les
from USB memory (p . 14) .
16. [ / PREVIEW] Button
When the [AUDIO PLAYER] button is lit, this button starts/
stops playback of audio fi les in USB memory .
When the [AUDIO PLAYER] button is unlit, this button
starts/stops a preview demo of the currently selected tone .
You can also get a count in to begin sounding by pressing
the modulation bar while you press the [PREVIEW] button .
7 7 8 8 9 10 9 10 18 18
