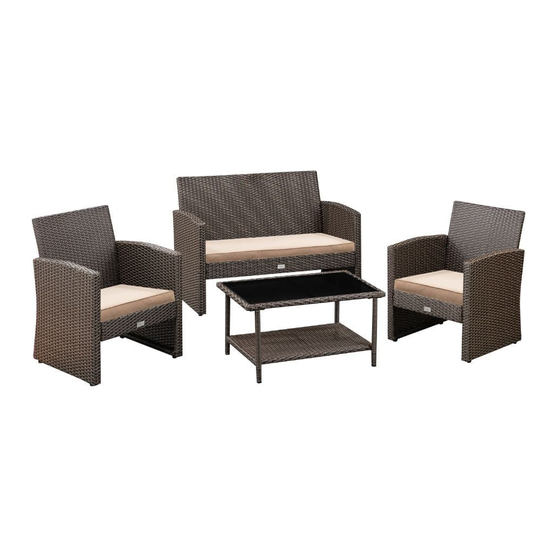

Ashville Chat Set
Item#: 63742
aTTach Your
rEcEiPT hErE
Keep a copy of your proof of
purchase or order confirmation
which will be needed if you need to
contact us about warranty coverage.
Purchase Date:
Questions, problems, missing parts?
Before returning to your retailer, our Florida-based customer service team is available:
Call toll-free
Email
Live chat
(866)
866) 985-7877
cservice@welltraveled.net
www.balkenehome.com
SavE ThESE
inSTrucTionS For
FuTurE rEFErEncE.
9 a.m. – 9 p.m., EST
9 a.m. – 6 p.m., EST, Monday - Friday
03242021
Advertisement
Table of Contents
Related Manuals for Balkene Home Ashville Chat Set 63742
Summary of Contents for Balkene Home Ashville Chat Set 63742
- Page 1 Ashville Chat Set Item#: 63742 aTTach Your SavE ThESE rEcEiPT hErE inSTrucTionS For FuTurE rEFErEncE. Keep a copy of your proof of purchase or order confirmation which will be needed if you need to contact us about warranty coverage. Purchase Date: Questions, problems, missing parts? Before returning to your retailer, our Florida-based customer service team is available: (866)
-
Page 2: Before You Begin
INFORMATION BEFORE YOU BEGIN Before beginning assembly, make sure all parts are present. Compare parts received with the parts list. If any part is missing or damaged, do NOT attempt to assemble the product. Please read and understand this entire manual before attempting to assemble, operate or install this product. -
Page 3: Hardware Contents
PACKAGE CONTENTS: CHAIRS QuanTiTY ParT DEScriPTion (per chair) Seat Panel Backrest Left Panel* Right Panel* Seat Cushion *When facing the front of the chair HARDWARE CONTENTS (per chair) Washer Hex Wrench M6x40 Bolt Qty: 11 Qty: 11 Assemble in a clear area on a spacious, nonabrasive surface such as a carpet or blanket. Wait to fully tighten hardware until final step. - Page 4 ASSEMBLY: CHAIRS Locate the Backrest and Seat Panel . Place a Washer on a Bolt . Align the panels as shown. Insert the Bolt with Washer through the eyelet in the underside of the Seat Panel and into the hole in the middle of the bottom of the Backrest.
- Page 5 ASSEMBLY: CHAIRS Turn assembled chair upright on a flat, level surface to ensure that it sits squarely and level on the ground. Adjust fastenings if needed, then firmly tighten all Bolts installed in Steps 1-3. Place the Seat Cushion in the seat. Repeat Steps 1-4 to assemble second chair.
- Page 6 PACKAGE CONTENTS: SOFA BENCH ParT DEScriPTion QuanTiTY Seat Panel Backrest Left Panel* Right Panel* Seat Cushion *When facing the front of the sofa HARDWARE CONTENTS Washer Hex Wrench M6x40 Bolt Qty: 12 Qty: 12 Assemble in a clear area on a spacious, nonabrasive surface such as a carpet or blanket. Wait to fully tighten hardware until final step.
- Page 7 ASSEMBLY: SOFA BENCH Locate the Backrest and Seat Panel . Place a Washer on each of 2 Bolts . Align the panels as shown. Insert the Bolts with Washers through the eyelets in the underside of the Seat Panel and into the holes at the bottom of the front of the Backrest.
- Page 8 ASSEMBLY: SOFA BENCH Place assembled sofa upright on a flat, level surface to ensure that it sits squarely and level on the ground. Adjust fastenings if needed, then firmly tighten all Bolts. Place the Seat Cushion in the seat. Your Ashville Sofa is fully assembled! Contact us for assistance: (866) 985-7877 | www.balkenehome.com...
- Page 9 PACKAGE CONTENTS: TABLE ParT DEScriPTion QuanTiTY Table Frame Shelf Glass Tabletop harDWarE conTEnTS Hex Wrench Washer M6x20 Bolt Qty: 12 Qty: 12 Assemble in a clear area on a spacious, nonabrasive surface such as a carpet or blanket. Wait to fully tighten hardware until final step.
- Page 10 ASSEMBLY: TABLE Place the Table Frame upside-down on a protected surface (Bolt holes will be visible near each corner). Place a Washer on each of 8 Bolts Position a Leg at the corner of the Table Frame as shown, aligning the eyelets in the top plate of the Leg with the holes in the Table Frame.
-
Page 11: Limited Warranty
EXTEND YOUR WARRANTY When you purchase a Fire Sense or Balkene Home product from any authorized retailer, you'll have peace of mind in knowing that it comes with a one-year warranty. Extend your warranty for an additional year when you review your item at balkenehome.com within 365 days of purchase.
