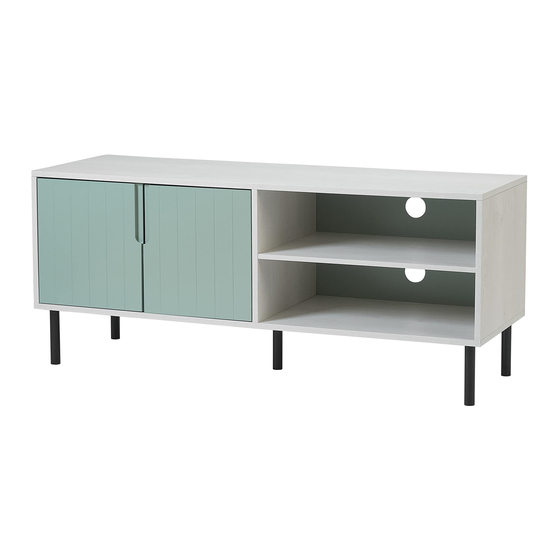

MARGO
MEDIA CONSOLE
Item#: 64019
ATTACH YOUR RECEIPT
Keep a copy of your proof of purchase
or order confirmation, which will be
needed if you need to contact us about
warranty coverage.
Purchase date:
Questions, problems, missing parts?
Before returning to your retailer, our Florida-based customer service team is available:
Call toll-free
Email
Live Chat
(866) 985-7877
cservice@welltraveled.net
www.balkenehome.com
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE.
9 am – 9 pm, EST
9 am – 6 pm, EST, Monday – Friday
10112021
Advertisement
Table of Contents
Related Manuals for Balkene Home MARGO 64019
Summary of Contents for Balkene Home MARGO 64019
- Page 1 MARGO MEDIA CONSOLE Item#: 64019 ATTACH YOUR RECEIPT SAVE THESE INSTRUCTIONS Keep a copy of your proof of purchase FOR FUTURE REFERENCE. or order confirmation, which will be needed if you need to contact us about warranty coverage. Purchase date: Questions, problems, missing parts? Before returning to your retailer, our Florida-based customer service team is available: Call toll-free...
-
Page 2: Before You Begin
INFORMATION BEFORE YOU BEGIN Before beginning assembly, make sure all parts are present. Compare parts received with the "Parts List." If any part is missing or damaged, do NOT attempt to assemble the product. Please read and understand this entire manual before attempting to assemble this product. -
Page 3: Parts List
PARTS LIST YOU WILL NEED FOR ASSEMBLY: (not included) Philips-head screwdriver Mallet or hammer PART DESCRIPTION HARDWARE CONTENTS Top Panel Left Panel Right Panel Center Divider Cam Bolt Cam Nut Dowel Hinge Screw 6x35mm Adjustable Shelf 8x30mm 4x14mm Qty: 10 Qty: 10 Qty: 16 Qty: 4... - Page 4 ASSEMBLY Insert Cam Bolts into the indicated holes in the Center Divider and Right Side . Use a Philips- head screwdriver to tighten the threads fully into the panels. Hardware Required: Cam Bolt x4 Place Dowels in the 2 innermost holes in each short edge of the Fixed Shelf Insert the Cam Bolts previously installed in the...
- Page 5 ASSEMBLY Place the Bottom Panel groove-side down. Align the triangular Leg Bracket of each Corner Leg the Bottom Panel as shown, then attach each Leg using 2 Hex Bolts . Attach the Center Leg to the middle of the Bottom Panel using 2 more Hex Bolts. Tighten all Bolts using the Hex Wrench Hardware Required: Hex Bolt x10...
- Page 6 ASSEMBLY Slide the Back Panel into place in the groove along the rear of the unit. The holes should be positioned toward the right side of the console. Insert 6 Dowels in the top edges of the Left Panel , Center Divider , and Right Panel Lower the Top Panel into place by...
- Page 7 ASSEMBLY Install the Hinges : insert the round hinge cup into the round bores near the edge of each Door Align the hinge eyelets with the 2 small holes drilled adjacent to each bore. Secure each Hinge by inserting 2 Screws through the eyelets and into the Door.
- Page 8 EXTEND YOUR WARRANTY When you purchase a Fire Sense or Balkene Home product from any authorized retailer, you'll have peace of mind in knowing that it comes with a one-year warranty. Extend your warranty for an additional year when you review your item at balkenehome.com within 365 days of purchase.
