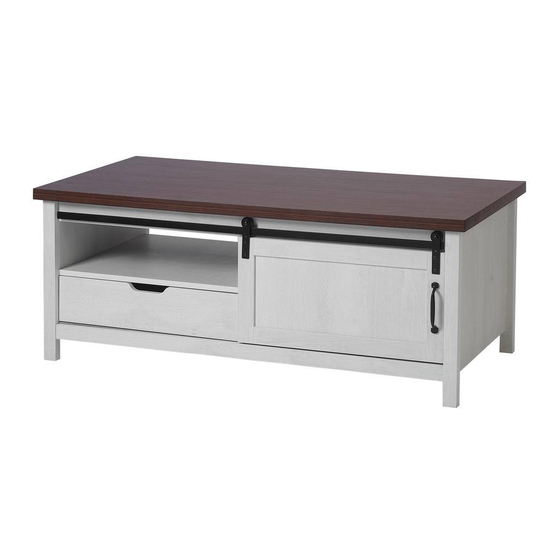

SIENA
COFFEE TABLE
Item#: 64015
ATTACH YOUR RECEIPT
Keep a copy of your proof of purchase
or order confirmation, which will be
needed if you need to contact us about
warranty coverage.
Purchase date:
Questions, problems, missing parts?
Before returning to your retailer, our Florida-based customer service team is available:
Call toll-free
Email
Live Chat
(866) 985-7877
cservice@welltraveled.net
www.balkenehome.com
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE.
9 am – 9 pm, EST
9 am – 6 pm, EST, Monday – Friday
10112021
