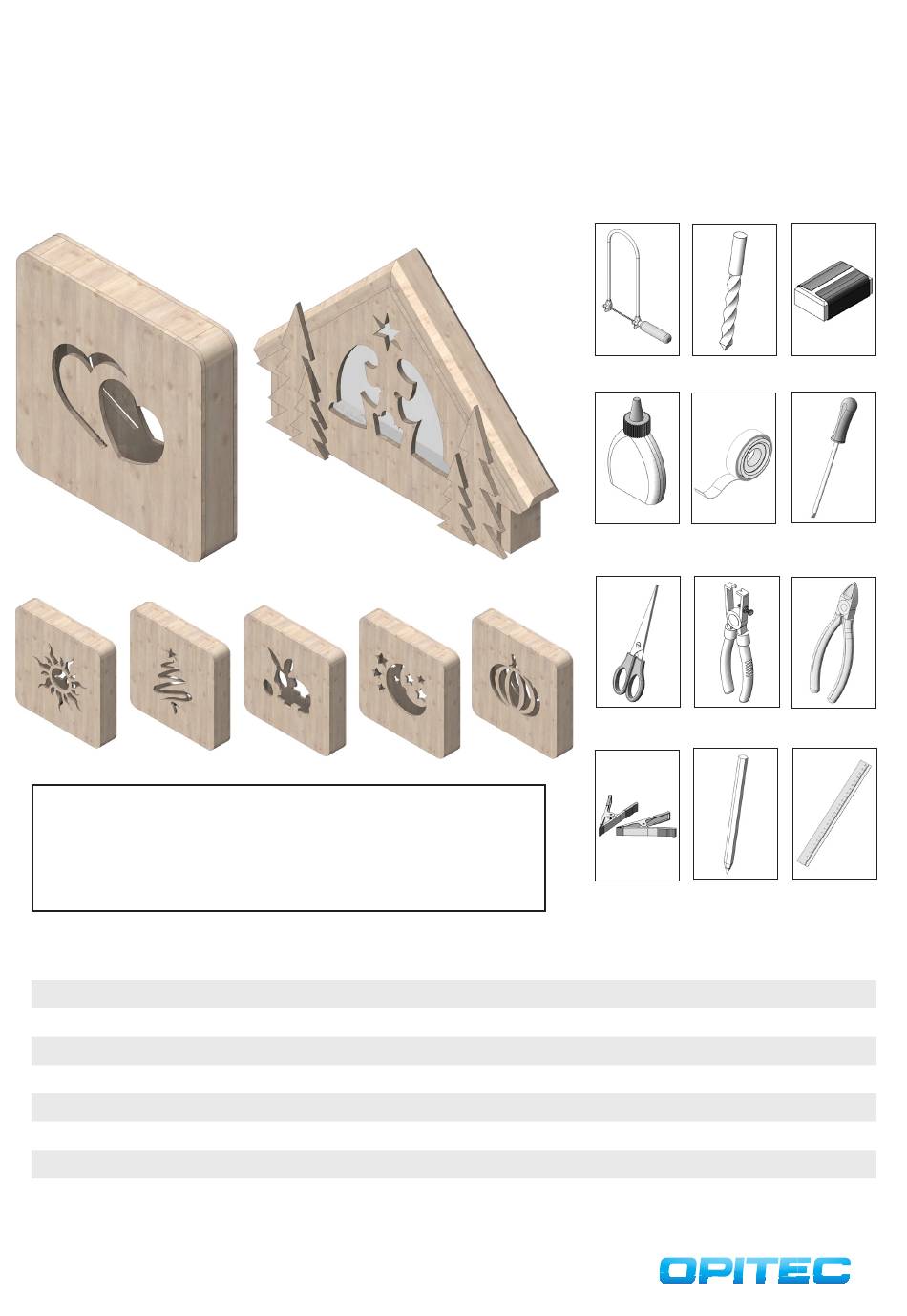

The Opitec Range of Projects is not intended as play toys for young children. They are teaching
aids for young people learning the skills of craft, design and technology. These projects should
only be undertaken and operated with the guidance of a fully qualified adult. The finished pro-
jects are not suitable to give to children under 3 years old. Some parts can be swallowed. Dan-
Parts List
Plywood
Wooden strip
Wooden strip
LED light strip
Battery holder with switch
Luster terminal strip
Thumbtacks
Pan head cross slot tapping screw
1
121869
Deco Light
Please Note
ger of suffocation!
Quantity
2
1
2
1
1
1
2
1
Required Tools:
Fretsaw
Wood glue
Scissors
Clamp
Size (mm)
Description
200x200x4
250x30x20
Frame strip
200x30x20
Frame strip
500
Power source
2 poles
2,2x16
Mounting luster terminal strip
ø3
Sandpaper
Drill
Screwdriver
Adhesive tape
Wire stripper
Side cutter
Pencil
Ruler
Part No.
Base plate
Lighting
Wiring
Wiring
1
2
3
4
5
6
7
8
Advertisement
Summary of Contents for Opitec Deco Light
- Page 1 Side cutter Please Note The Opitec Range of Projects is not intended as play toys for young children. They are teaching aids for young people learning the skills of craft, design and technology. These projects should only be undertaken and operated with the guidance of a fully qualified adult. The finished pro- jects are not suitable to give to children under 3 years old.
- Page 2 Instructions 121.869 Deco Light Please Note: The plywood cuts have an A and B side. The A-side should face inwards! ø3 Select and cut out your desired motif (templates page 5-10). Place the two plywood panels (1) on top of each other and fix them. Fix your selected template with adhesive tape on top of the panels.
- Page 3 Instructions 121.869 Deco Light Detail view Tape the + pole! Glue the light strip into the frame as shown. Then tape the positive pole of the next row of connections with a small piece of adhesive tape as shown in detail.
- Page 4 Note: Insert batteries and check function! Round off the corners of the frame strips. Use sandpaper to adjust the protruding corners of the frame to the Done! rounding of the back and top plate. The deco light can be coloured as desired.
- Page 5 Instructions 121.869 Deco Light Construction Christmas Crib Please Note: The plywood cuts have an A and B side. The A-side shuld face inwards! ø3 Select and cut out the crip motif (template page 16). Place the two plywood panels (1) on top of each other and fix them. Fix xour selected template with adhesive tape on top of the panels.
- Page 6 Instructions 121.869 Deco Light Cute here Strip here Cut from both cables of the battery holder (5) 40 mm each and strip Center a cover plate (1) as shown and glue it onto the frame flush with them on both sides. Also strip the shortened cables of the battery the lower edge.
- Page 7 Instructions 121.869 Deco Light Detail view Detail view Screw the luster terminal strip onto the wooden frame with the screw Now connect the cables of the battery holder (5) to the luster terminal (8), as shown. strip. Note:Insert batteries and check function! Glue the cover plate congruently.
- Page 8 Instructions 121.869 Deco Light Done!
- Page 9 Instructions 121.869 Deco Light Template Heart Scale 1:1...
- Page 10 Instructions 121.869 Deco Light Template Bunny Scale 1:1...
- Page 11 Instructions 121.869 Deco Light Template Pumpkin Scale 1:1...
- Page 12 Instructions 121.869 Deco Light Template Moon & Stars Scale 1:1...
- Page 13 Instructions 121.869 Deco Light Template Sun Scale 1:1...
- Page 14 Instructions 121.869 Deco Light Template Christmas Tree Scale 1:1...
- Page 15 Instructions 121.869 Deco Light Template 2021 Scale 1:1...
