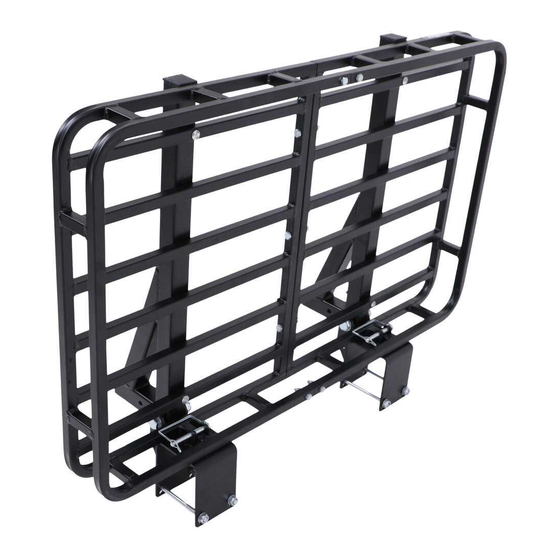

e99050 - RV Bumper Cargo Carrier - 24 x 40
- Thank you for your purchase of the etrailer.com RV Bumper Cargo Carrier.
- Basket Capacity : 500 lbs. Check with RV manufacturer to determine load rating of RV bumper. This is
often less than the capacity of RV Bumper accessories, and should be the limit of the total cargo and
accessories placed on the RV Bumper. etrailer.com is not responsible for damage or injury caused by
overloading the RV Bumper.
- This product is covered by a limited lifetime warranty to be free of defects in manufacture and construction.
etrailer.com is not responsible damage or injury caused by incorrect installation or use of this product.

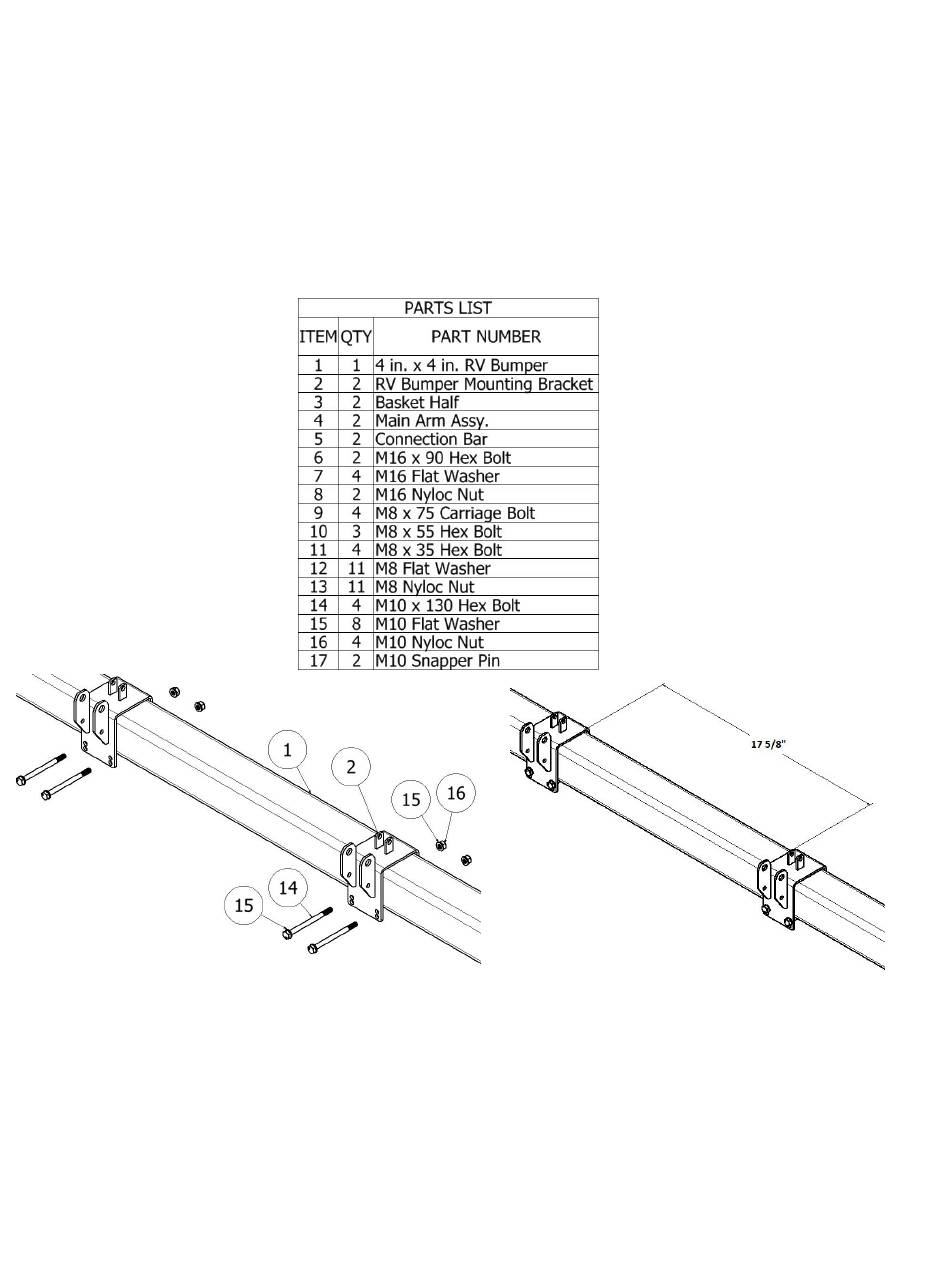

STEP 1. Position RV Bumper Mounting Brackets [2] on RV Bumper [1]. The inside edges of the
brackets should be 17 5/8" apart. Once in position, assemble with (QTY : 4) sets of: (QTY : 1) M10 x
130 Hex Bolt [14], (QTY : 2) M10 Flat Washer [15], (QTY : 1) M10 Nyloc Nut [16]. Tighten all bolts. M10 x
130 Hex Bolts [14] should pass through closest holes in RV Bumper Mounting Brackets [2] to bottom
face of RV Bumper [1].
1 1
e99050
e99050

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the e99050 and is the answer not in the manual?

Questions and answers

Related Manuals for etrailer e99050

Summary of Contents for etrailer e99050

  • Page 1 - Basket Capacity : 500 lbs. Check with RV manufacturer to determine load rating of RV bumper. This is often less than the capacity of RV Bumper accessories, and should be the limit of the total cargo and accessories placed on the RV Bumper. etrailer.com is not responsible for damage or injury caused by overloading the RV Bumper.
  • Page 2 [3] with (QTY : 3) sets of: (QTY : 1) M8 x 55 Hex Bolt [10], (QTY : 1) M8 Flat Washer [12], and (QTY : 1) M8 Nyloc Nut [13]. Fully tighten all bolts. e99050 e99050...
  • Page 3 Remove (QTY : 2) M10 Snapper Pin [17] from Main Arm Assy [4] and RV Bumper Mounting Bracket [2]. Fold basket up toward RV. Replace (QTY : 2) M10 Snapper Pin [17] through holes in top of RV Bumper Mounting Bracket [2] to secure in folded position. e99050 e99050...
