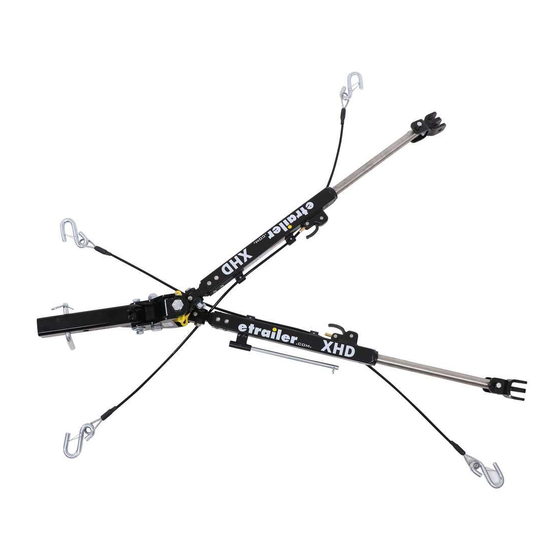

Self-aligning tow bar - 10,500 lb capacity
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ETTB20039, Rev 12
12/17
etrailer XHD - e98973
SELF-ALIGNING TOW BAR - 10,500 LB CAPACITY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XHD-e98973 and is the answer not in the manual?

Questions and answers

Related Manuals for etrailer XHD-e98973

Summary of Contents for etrailer XHD-e98973

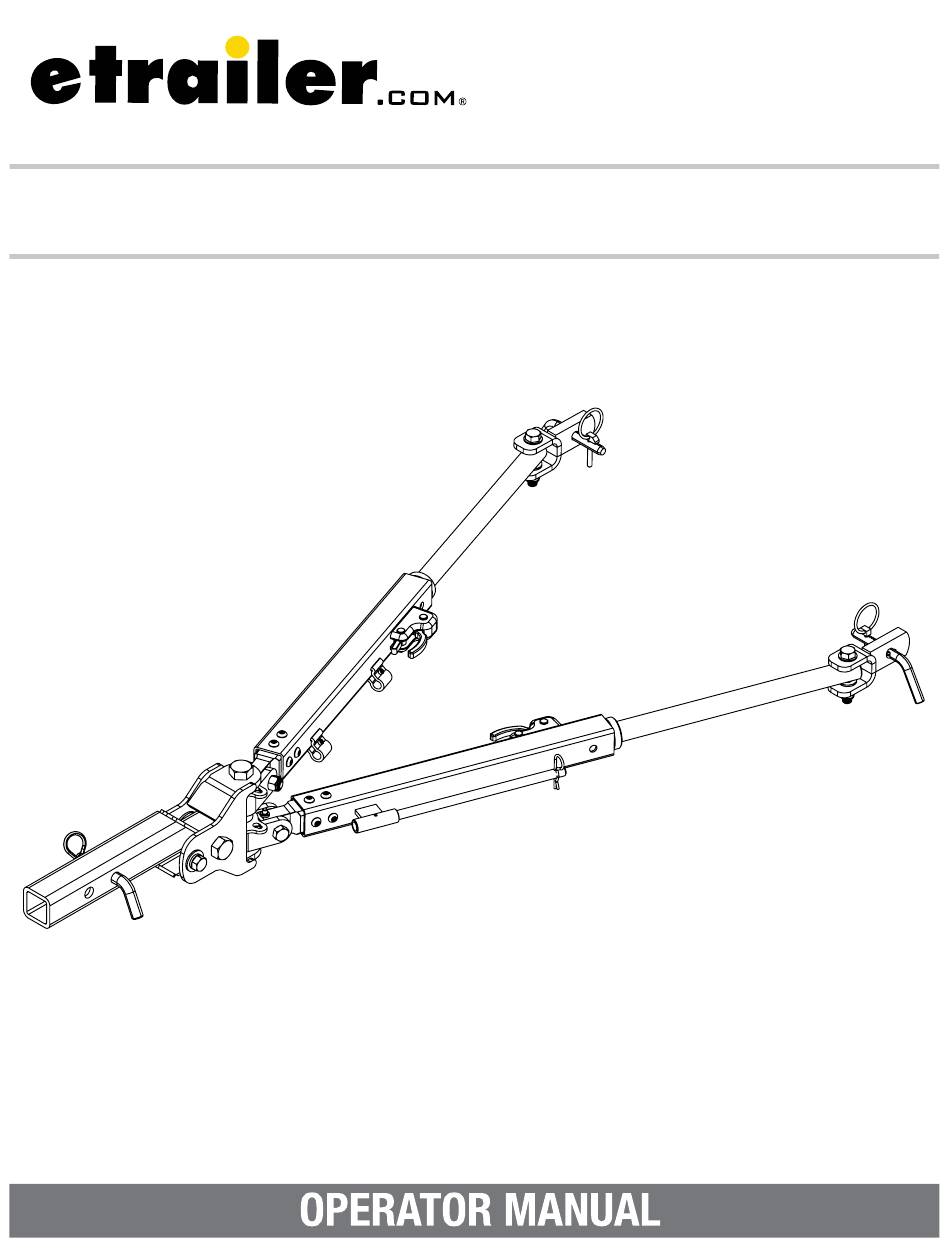

  • Page 1 ETTB20039, Rev 12 12/17 etrailer XHD - e98973 SELF-ALIGNING TOW BAR - 10,500 LB CAPACITY...
  • Page 2 Page 2 ETTB20039...

  • Page 3: Table Of Contents

    INTRODUCTION WARNING: Ensure that the towing vehicle exceeds the combined towed vehicle and tow bar weight by 500 lbs and has a rated capacity higher than the towed vehicle weight. Ensure that the towed vehicle weight does not exceed the listed rating for this tow bar. Failure to adhere to these listed warnings may result in tow bar failure, vehicle separation, damage to the towing / towed vehicle, or severe injury or death.

  • Page 4: Safety Definitions

    REMEMBER Your best assurance against accidents is a careful and responsible operator. If there is any portion of this manual or function you do not understand, contact etrailer.com for assistance. LIGHTING, MARKING, AND BRAKING It is the owner’s responsibility to know lighting, marking, and towed vehicle braking requirements of local highway authorities and to install and maintain equipment to provide compliance with regulations.

  • Page 5: Decal Locations & Care

    • Replace safety decals that are missing or have become illegible. • When installing replacement parts, ensure that all safety decals are updated at the same time. • Safety decals are available from etrailer.com. How to install safety decals: • Be sure installation surface is clean and dry.

  • Page 6: During & Following Operation

    SAFETY INFORMATION DURING OPERATION • Always follow state and local regulations regarding towed vehicle braking and auxiliary lighting when towing. Be sure to check with local law enforcement agencies for your own particular regulations. Only safety cables (not elastic or nylon/ plastic tow straps) should be used to retain connection between towing vehicle and towed vehicle in event of separation.

  • Page 7: Performing Maintenance

    A fire extinguisher and first aid kit should be kept readily accessible while performing maintenance on this tow bar. • A service kit is available (sold separately) that covers routine maintenance items that will extend the life of your tow bar. • Replacement parts are available at etrailer.com (sold separately). Page 7 ETTB20039...

  • Page 8: Bolt Torque

    TORQUE SPECIFICATIONS TORQUE SPECIFICATIONS BOLT TORQUE DATA FOR STANDARD NUTS, BOLTS, AND CAP SCREWS. Tighten all bolts to torques specified in chart unless otherwise noted. Check tightness of bolts periodically using bolt chart as guide. Replace hardware with same grade bolt. NOTE: Unless otherwise specified, high-strength Grade 5 hex bolts are used throughout assembly of equipment.

  • Page 9: Important Notice

    Be sure to check that receiver on towing vehicle is not inset too far. When attaching an etrailer towing product it is important that turning clearance is adequate. A receiver that is inset too far on a towing vehicle will shorten turning radius. Failure to check this may result in towing or towed vehicle to be damaged.

  • Page 10: Installation And Operating Instructions

    SAFETY CABLE & LIGHT CABLE INSTRUCTIONS Step 1. Out of the box, the etrailer XHD tow bar is setup for the Step 4. Position the vehicle to be towed approximately 24” recommended positions for the safety cables and electrical wire behind the towing vehicle.

  • Page 11: Unhooking Tow Bar

    Down Position Up Position NOTE: The etrailer XHD comes with a 1-1/2” off-set receiver that can be flipped to help level the tow bar with the towed vehicle. The receiver is in the up position from factory. To change to the lower position, remove both 1/2”...

  • Page 12: Tow Bar Parts Breakdown

    .50 X 14GA MACHINE WASHER are found, the tow bar will need to be serviced before towing. If tow bar needs LYNCH PIN servicing, contact etrailer.com for as- WASHER, MACHINE, .75 X 14GA NR(PLATED) sistance. .75NC NYLON INSERT LOCK NUT...
  • Page 13 PARTS BREAKDOWN DECALS ITEM DESCRIPTION Torque to 85 ft/lbs XHD DECAL USER INSTRUCTION DECAL WARNING DO NOT EXCEED WEIGHT LIMITS & MANUFACTURER’S PATENT/ HITCH RATING DECAL Please order replacement parts by Item and Description. Page 13 ETTB20039...

  • Page 14: Warranty Policy

    WARRANTY: Your etrailer tow bar has a Lifetime Limited warranty to be free from defects in materials and workmanship under normal use and service from date of purchase. Any part of the etrailer tow bar found in the judgment of the manufacturer to be defective in materials or workmanship will be repaired or replaced at the manufacturer’s option.
  • Page 15 Page 15 ETTB20039...
  • Page 16 1507 Highway A, Wentzville, MO 63385 (800) 298 - 8924 More etrailer product information can be found online: www.etrailer.com...
