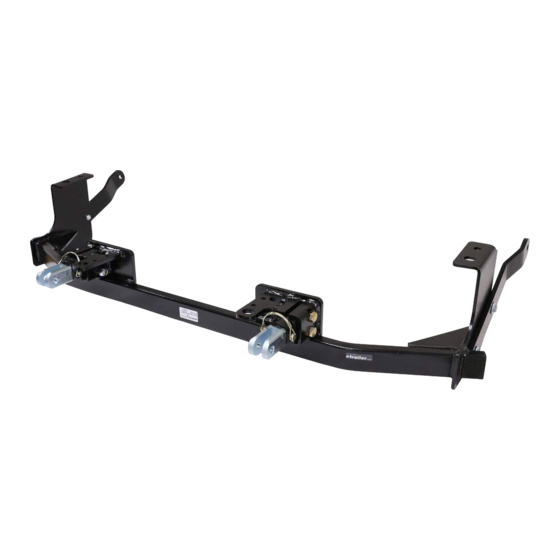

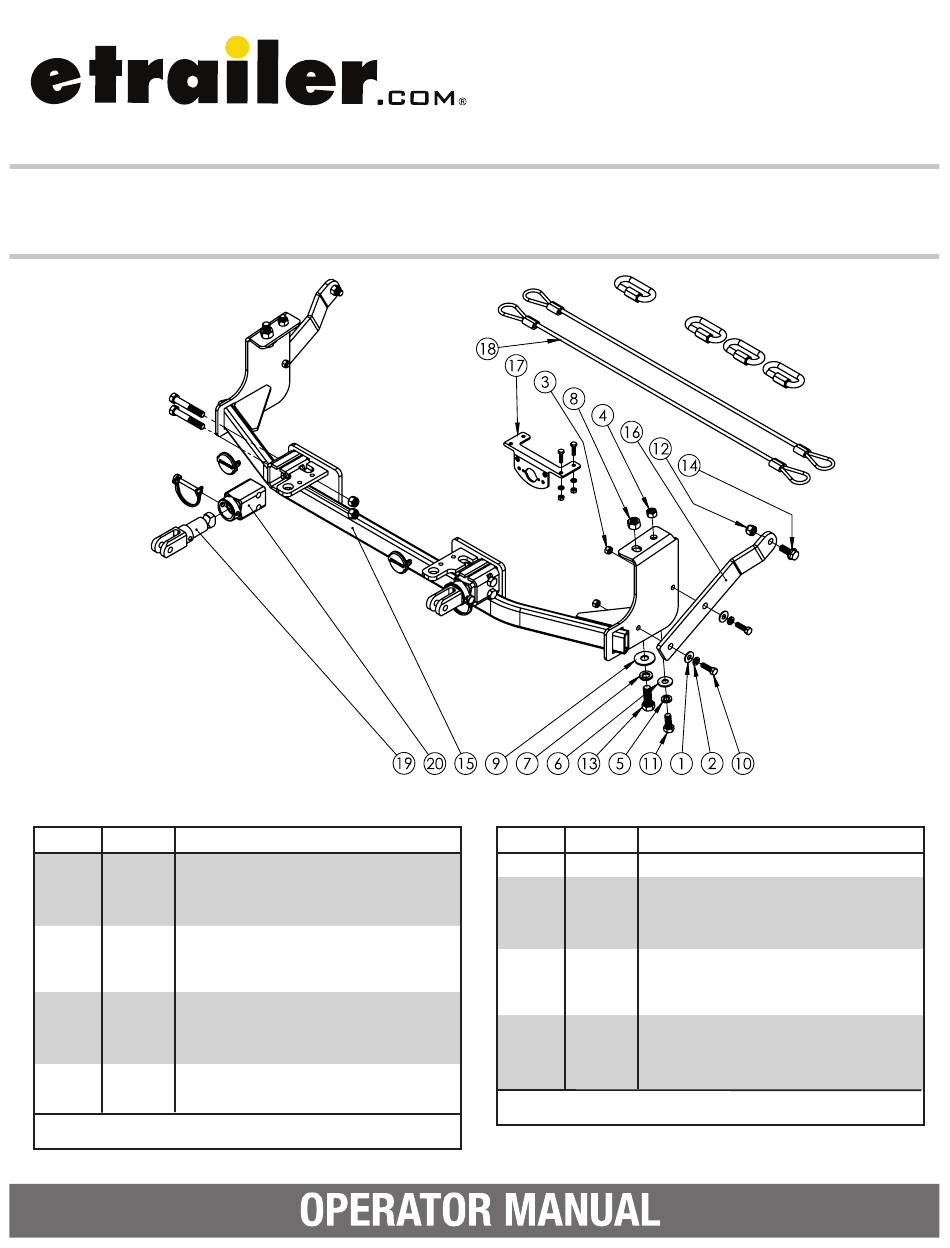

TABLESS BASE PLATE - e98962
Pin Height- 18"
ITEM
QTY
1
4
WASHER, FLAT .375
2
4
.375 LOCKWASHER
3
4
.375 HEX NUT
4
2
NUT, HEX, .50NC
5
2
.50 LOCKWASHER
6
2
.50 FLAT WASHER
7
2
WASHER SPRING LOCK 0.625
8
2
.625NC HEX NUT
9
2
WASHER, FLAT, .625
10
4
BOLT, .375NC X 1.25 HEX HEAD GR. 5
11
2
BOLT, .50NC X 1.25
Please order replacement parts by PART NO. and DESCRIPTION.
Center- 22"
DESCRIPTION
ITEM
QTY
12
2
NUT, .50NC LOCK, NY. INSERT
13
2
BOLT, .625NC X 1.75 GR5 HEX
14
2
BOLT, .50NC X 1.25 SERR FLG HEX HD
15
1
CROSSMEMBER F/ 9519329
16
2
BRACE
17
1
PLUG MOUNT
18
1
BASEPLATE SAFETY CABLE KIT
19
1
TABLESS PULL STUD KIT
20
1
TABLESS PULL BLOCK KIT
-
2
LOCTITE (NOT SHOWN)
Please order replacement parts by PART NO. and DESCRIPTION.
ETTP29329, Rev 1
04/23
DESCRIPTION
Advertisement
Related Manuals for etrailer e98962
Summary of Contents for etrailer e98962
- Page 1 ETTP29329, Rev 1 04/23 TABLESS BASE PLATE - e98962 Pin Height- 18” Center- 22” ITEM DESCRIPTION ITEM DESCRIPTION WASHER, FLAT .375 NUT, .50NC LOCK, NY. INSERT .375 LOCKWASHER BOLT, .625NC X 1.75 GR5 HEX .375 HEX NUT BOLT, .50NC X 1.25 SERR FLG HEX HD NUT, HEX, .50NC...
-
Page 2: Warranty
The availability 7/16” 50 ft/lbs 12mm 78 ft/lbs of an etrailer tow bar base plate does not imply that these 1/2” 75 ft/lbs 14mm 125 ft/lbs vehicles can be modified or that there is an aftermarket product available. -
Page 3: Installation
Installation 1. Remove seven 10mm screws and two plastic push fasteners from the top edge of the fascia. 4. Pull fender flare out and remove three 10mm screws from each side. 5. Remove three 8mm screws from the bottom of 2. - Page 4 Installation 8. Remove four 13mm bolts from each side of the 11. Trim shutter system as shown for both sides and bumper. Drill out or grind out the spot welds to all the way across the front. Trim as needed. remove the bumper.
- Page 5 Installation 16. Space fluid tank out with three 3/4” nuts and 13. Mark the rear hole to be drilled in frame. replace the one bolt with a M6-40 bolt and 1/4” Temporaily remove base plate and drill one flat washer. 1/2”...
- Page 6 Instructions Instructions for Towed Vehicle Base Plate Safety Cables & Parts Breakdown Example #1 Wrap the safety cable around the base plate crossmember and attach with one quick link. Attach the other end of the safety cable to the vehicle’s frame rail or crossmember of the vehicle’s frame using another quick link. See illustration below.
- Page 7 Installation Plug Cover Instructions 3. To install cover, push into socket and 1. To remove cover, rotate by the tabs 2. Pull and the cover will pull off. rotate until it snaps into place. about 1/8 of a turn. Page 7 ETTP29329...
- Page 8 1507 Highway A, Wentzville, MO 63385 (800) 298 - 8924 More etrailer product information can be found online: www.etrailer.com...
