etrailer e98874 Quick Start Manual

24" x 60" tilting - folding cargo carrier

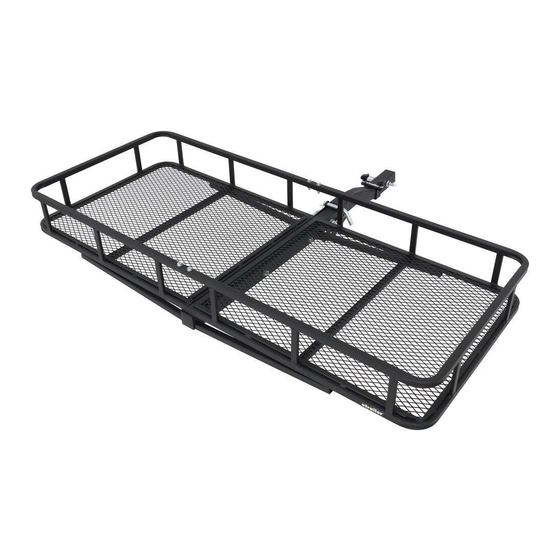

e98874 - 24" x 60" Tilting - Folding Cargo Carrier

WARNING

Do not use product outside its intended use and application. Misapplication can result in damage and product failure.

Only use parts and hardware included. If parts are missing, contact etrailer for replacement(s).

Do not use product near flammable materials or open flame.

This product is not designed to withstand accidents. Products involved in an accident should be replaced immediately.

Do not modify the cargo carrier in any way. Unauthorized modification may impair the function and/or safety, and

could affect the life of the product.

Always check for damaged or worn parts before using the cargo carrier. Broken parts will affect operation. Replace or

repair damaged or worn parts immediately.

Distribute load evenly. Uneven loads may cause the cargo carrier to tip, resulting in personal injury to the operator or

others.

Do not use carrier without securing pin in the main arm.

Use the cargo carrier on flat and level surfaces capable of supporting the cargo carrier and its maximum load.

When the product is not in use, store in a secure place out of the reach of children.

Do not exceed distributed load limit of 500 lbs.

Table of Contents

Do you have a question about the e98874 and is the answer not in the manual?

Page 1 Do not use product outside its intended use and application. Misapplication can result in damage and product failure. Only use parts and hardware included. If parts are missing, contact etrailer for replacement(s). Do not use product near flammable materials or open flame.

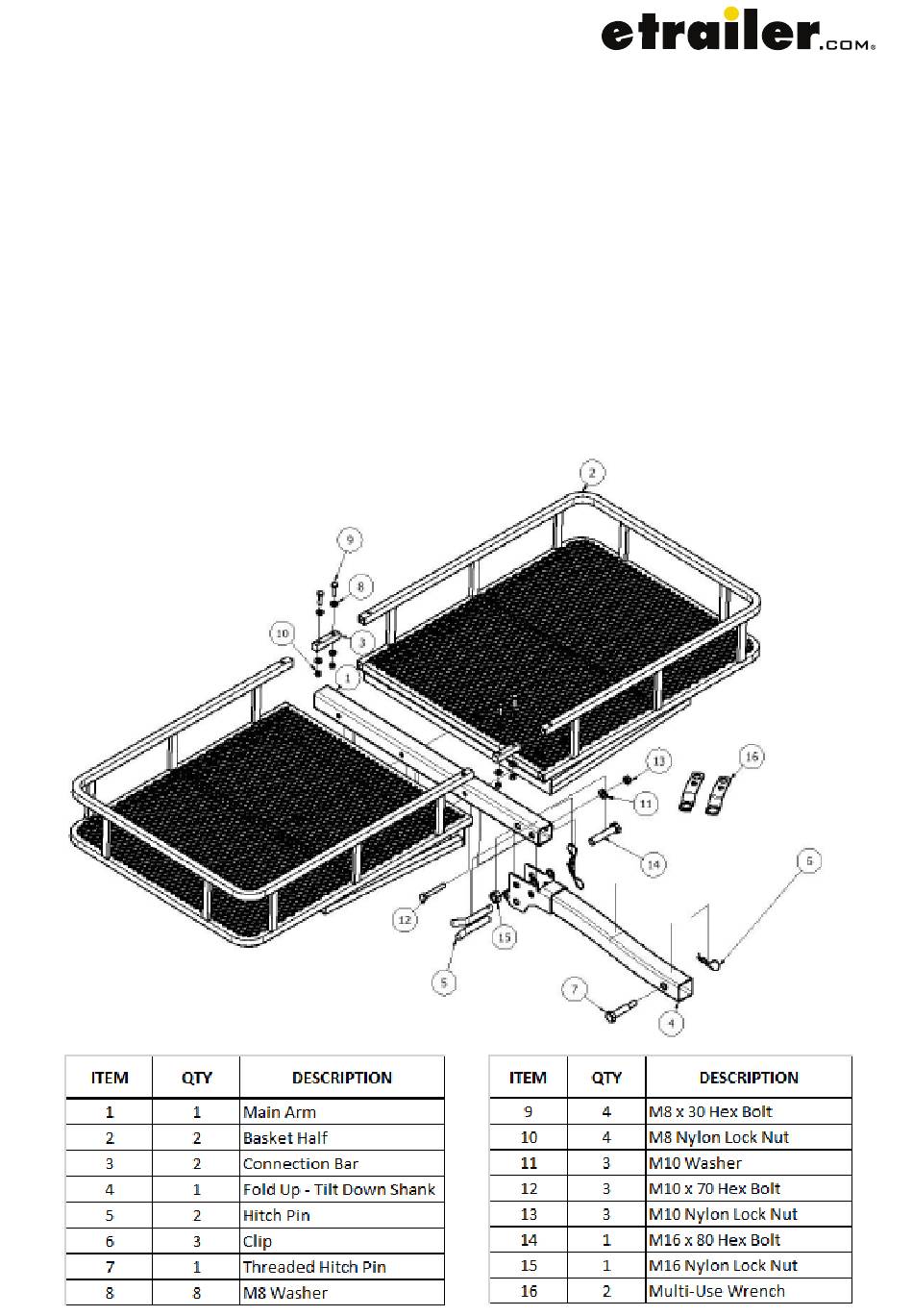

Page 2 [3] and thread M8 x 30 hex bolts [9] and M8 washers [8] into the connecting bars [3]. Once M8 x 30 hex bolts [9] are threaded through the connecting bars [3], attach M8 washers [8] and M8 nylon lock nuts [10]. Do not fully tighten. e98874 www.etrailer.com...
Page 3 Insert main arm [1] between the brackets on each basket half [2]. Align (3) holes and connect with (3) M10 x 70 hex bolts [12], M10 washers [11], and M10 nylon lock nuts [13]. Tighten M10 bolt assemblies and M8 bolt assemblies from Step 1. e98874 www.etrailer.com...
Page 4 [1] and Fold Up - Tilt Down Shank [4]. Tighten completely. Insert Pins [5] and Clips [6] through rearmost aligned hole in main arm [1] and Fold Up - Tilt Down Shank [4] and the topmost hole of Fold Up - Tilt Down Shank [4]. e98874 www.etrailer.com...
Page 5 Support the cargo carrier and slowly lower the cargo carrier into the tilt down position by pivoting it away from the vehicle. Access the • rear of the vehicle as needed. Repeat process in reverse order to return the cargo carrier to operating position. • e98874 www.etrailer.com...
