Summary of Contents for Sportig Spinstar Racer

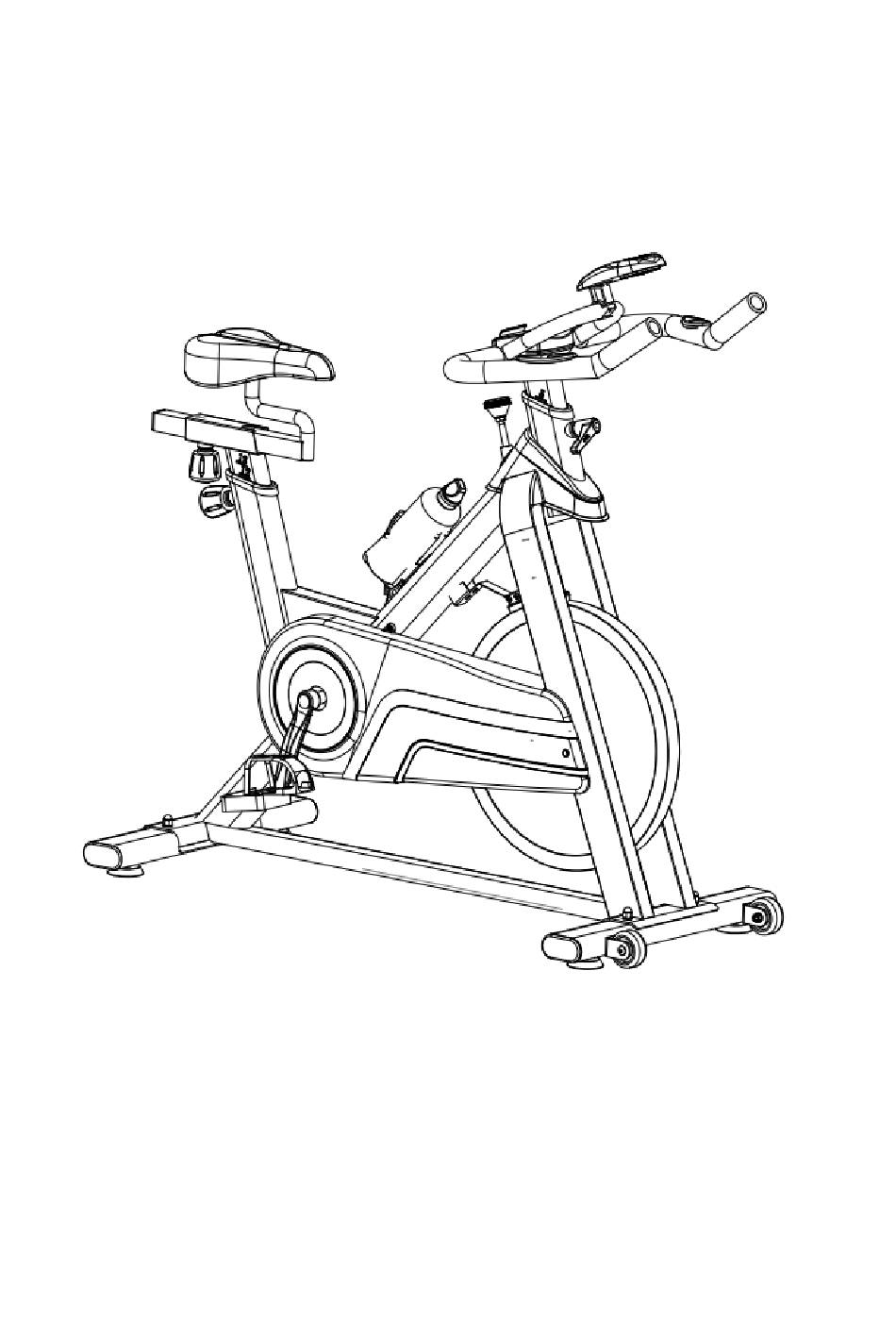

  • Page 1 USER MANUAL...
  • Page 2 Safety Precautions – Please Read the Instruction before Using! 1. Assembly this product properly using original parts according to the installation instruction. Before assembly, inspect whether packages are in good condition and whether spare parts are complete in accordance with transport precautions and the list of spare parts.
  • Page 3 15. Make sure any part of another person will not be accessible to the equipment during the exercise. 16. To protect the environment, never discard packages or batteries, and please put them into a designated dustbin or other waste collection point. 17.
  • Page 4: Exploded View

    EXPLODED VIEW...
  • Page 5: Part List

    PART LIST DESCRIPTION DESCRIPTION Main frame screw4x12 M10cap Mobile holder Φ10flat washer Monitor front tube monitor holder M10x55carriage screws Self-tapping screws4x35 6L/R pedal L/R handlebar rear tube M8x16 screws M16 knob front intubation bottle M16-Lknob rear intubation M10tube pad cushion tube Phillips screwdriver cushion Φ6mm Allen wrenches...
  • Page 6: Description Of Installation

    Description of Installation: Step 1: Remove the main frame (1), front tube(4)and rear tube(7) , locking them with M10cap (2), flat washer(3) and M10x55carriage screws. Use a Phillips screwdriver (23) to tighten the tube. The tube is installed. Step 2: In accordance with figure A, remove the rear intubation (10), Loosen the Knob (8) and insert the rear intubation (10), and tighten the Knob (8.) In accordance with figure B, then remove the cushion tube (11), align the...
  • Page 7 Step 3: First, you need to remove the installed parts: 1. front intubation(20),2. handlebar(18),3. Mobile holder(14), 4.M16-Lknob(21),5. screws M8*16(19),screws4x12(13) 6. Phillips screwdriver(23),Allen wrenches(24) As shown in the A+B+C illustration, Remove the phone holder (14) , the phone holder has two parts (upper and lower part), And remove the screws (13), according to illustration D+E, insert the lower part of the phone holder into the front intubation.
  • Page 8 Insert the front intubation into the main frame (1) and use the knob (21) to tighten it, then put the handlebar (18) into the front tube (20), Aim at 4 holes, use the M8x16 screws and Allen wrench to tighten it. Put the phone holder (upper part) to the handlebar and use the Phillips screwdriver (23) to lock the screws.
  • Page 9 Step 4. Put the Monitor holder to the handlebar and lock it with Self-tapping screws4x35(17) and take the Monitor to the holder. And then connect the pulse line and sensing line as showed in L. Step 5: Remove the pedal, Put the pedal with pedal (6L) into the left crank of the main frame (1) and the foot pedal R (6R) into the right crank.
  • Page 10 Step 6: Customers in the process of riding, if the feeling is not smooth, you can adjust the foot pad (22) Until steady. (1) Monitor descriptions: Time ………………………………… 00:00-99:59 minute Speed ..………………………………. 00-99.99 mile (mile/hour ) Distance ...………………………………. 0.00-999.9 km (mile) Automatic Scan ……………………..
  • Page 11 (2) Methods for using 1. Battery Installation Please install no.5 AA battery to the battery box on the back of computer. (All the function would be refreshed to be “0” every time after the batter is replaced) 2. Automatic on and off The main display would show all the data during the exercise of user.
