USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPiNSTAR and is the answer not in the manual?

Questions and answers

Related Manuals for Sportig SPiNSTAR

Summary of Contents for Sportig SPiNSTAR

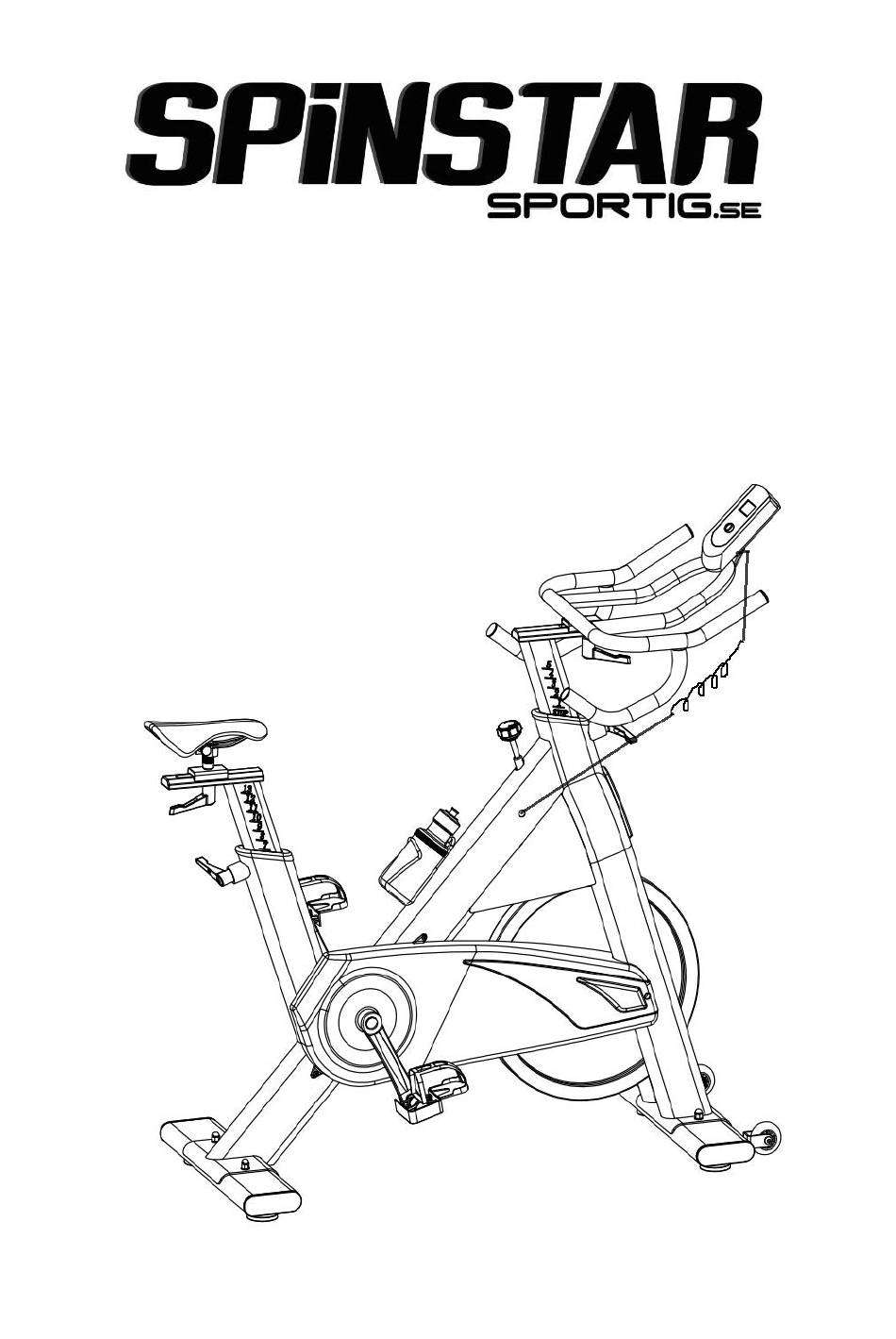

  • Page 1 USER MANUAL...
  • Page 2 Safety Instructions Before you use the exercise equipment, please read all the rules. Assembly this product properly using original parts according to the installation instruction. Before assembly, inspect whether packages are in good condition and whether spare parts are complete in accordance with transport precautions and the list of spare parts.
  • Page 3 Exploded view...
  • Page 4 PART LIST DESCRIPTION DESCRIPTION Main Frame Rear stabilizer Handlebar supporter Pedal L/R Handlebar Front stabilizer Washer L shape knob Cap nut Computer Water bottle cage Computer holder Water bottle Sensor cable Seat Knob Seat supporter Bolt ASSEMBLY INSTRUCTIONS STEP 1 Fasten the front stabilizer (12) and rear stabilizer (10) on the frame (1) with bolt (18) ,washer (4) and cap nut (5).
  • Page 5 Fasten the seat supporter (9) on the frame (1) with knob (17) and fasten the seat (8) to the seat supporter (9) with L shape knob (13). STEP 3 Fasten the Handlebar supporter (2) on the frame (1) with knob (17), and fasten the handlebar (3) on the supporter (2) with L shape knob (13), then fasten the computer (14) on the computer holder (15) and connect the sensor cable (16) to computer (14).
  • Page 6 STEP 4 Attach the pedal (11) to the Frame (1). Note that the Right pedal should be threaded in clockwise direction and the left pedal in anti-clockwise direction.
  • Page 7 EXERCISE COMPUTER- 2007 K/M SPECIFICATIONS: TIME………………………………………………….…..…00:00-99:59MIN:SEC SPEED………………...…….……………………….…..…0.0-999. 9KM/H DISTANCE…………………………………………...… ..0-99.99KM CALORIES………………………………………………….0-999.9KCAL KEY FUNCTIONS: MODE: To select the function you want. Hold the key for 4 seconds to have all function values reset (total reset) SET: To input the target value by the key. RESET: To let the value reset.
