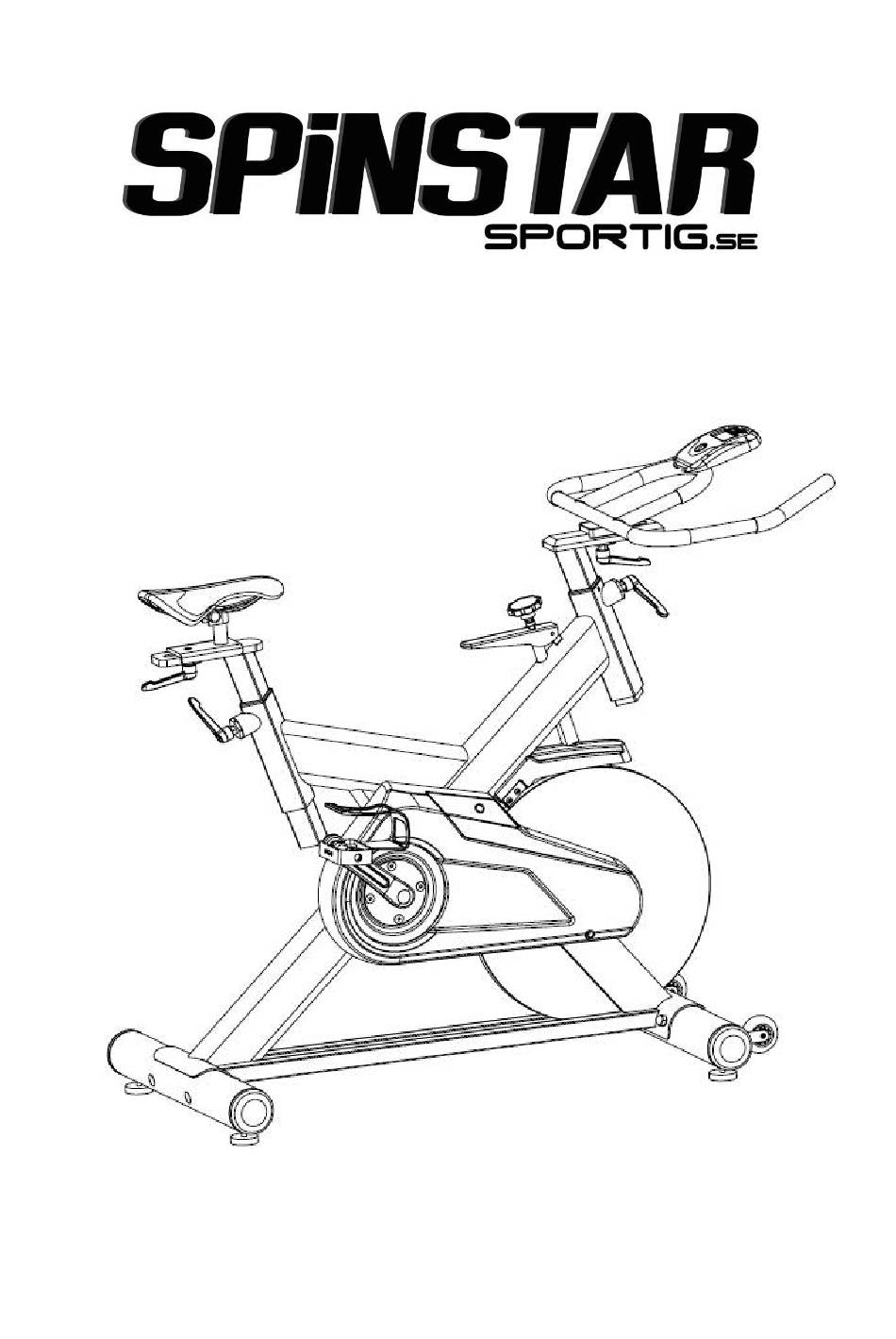

- Page 1 USER’S MANUAL...
-
Page 2: Table Of Contents
Dear Customers: Welcome to the use of our fitness equipment. By using our equipment, we hope you will get fit in a very effective way. Before the use, please read carefully and strictly following the instruction to operate. Please contact us in case of any problem. Thanks for your cooperation. Warning : Please read all instructions and precaution measures of the manual before the use, and keep it for future reference. -
Page 3: Safety Instruction
Safety Instruction Please read all instructions before the use of this fitness equipment. Below is the basic precaution measure ahead of the use. Caution： 1、In case of any accident arising from health or safety, which makes the exercise not going as normal, user should consult with doctor about his/her own health before the use of the fitness equipment. - Page 4 2. This equipment is not recommended for use of health recovery. 3. The commonly used standard No. for product: GB17498.1-2008/GB17498.10-2008 4. Please read the manual before using this fitness equipment. 5. Please contact with department of service if our assistance is required for any problem Thanks for your choice on our product You have already moved forward an important step in the process of development and the persistence of fitness exercise.
-
Page 5: Exploded View
Exploded View... -
Page 6: Accessory List
Accessory List Description Quantity Description Quantity Front chain guard Flywheel supporting piece (right) Back chain guard Decorative piece Main frame Brake connecting holder Bearing supporting holder Bearing Middle bearing washer Curved piece Flywheel central axis Bottom bracket Deep groove bearing 6004 Middle empty tube Deep groove ball bearing Welding nut... -
Page 7: Assembly Instructions
Assembly Instruction The First Step Install the back leg tube (81) onto the main frame (3) and connect the two acorn nuts (37), flap gasket and bolt (8). The method for installing front leg tube is the same as the back one. - Page 8 The Second Step Insert saddle sliding rail (55) into the main frame, loose the knob (47) first and put the saddle tube into the saddle frame, adjusting it to a proper height while pointing right to the hole, later insert the knob (47) back and tighten it. Then install the saddle (58) onto the adjustable saddle post (61), tightening it with knob (47) and washer (51).
- Page 9 The Third Step Insert the measuring tube (50) into the main frame while pointing right at the hold. Tighten it with nut (45) and the inserting block (44) and L shape lock pin (47). Using the grip, install the computer (93) onto the handlebar (53) to adjust the angle properly. Then insert the sensor line into the back hole of computer.
- Page 10 The Fourth Step Switch the Left pedal (85) onto the left crank of main frame (1) and the right pedal (88) onto the right crank. Attention: Right paddle is rotating clockwise Left paddle is rotating counterclockwise...
-
Page 11: Monitor Introduction
Computer Introduction Product Description : SPECIFICATIONS : TIME………………………………………………….…..…00:00-99:59MIN:SEC SPEED………………...…….……………………….…..… 0.0-999. 9KM/H DISTANCE…………………………………………...……. 0-99.99KM TOTAL DISTANCE…………………………………………0-9999KM CALORIES…………………………………………………. 0-999.9KCAL PULSE ………………………………………………………….60-120 TIMES/MIN AUTO SCAN : Start the monitor or press the button to turn into the condition of scanning. All the functions data of Time, Calories, Pulse, Speed, Distance would automatically be on display in a cycling way, with data pausing for 6 seconds for each function.
