Operating
7.7.2

Double-sided mitre fence DUPLEX

i
62
Operating
Attach the supplied threaded pin for assembly of an F25, WA6, WA8 and
WA80.
Note!
If the DUPLEX option was selected, separate instructions are enclosed!
Function overview
• infinitely adjustable from 0° to 90°
• circular scale with 0.25° pitch
• positioning at any point of the sliding table
• option of crosscutting workpieces of up to 1350 mm in
length (when the extended stop fence is used, up to
2150 mm in length)
• stop bar (with 2 throw-over stops) can be used in both
stop profiles

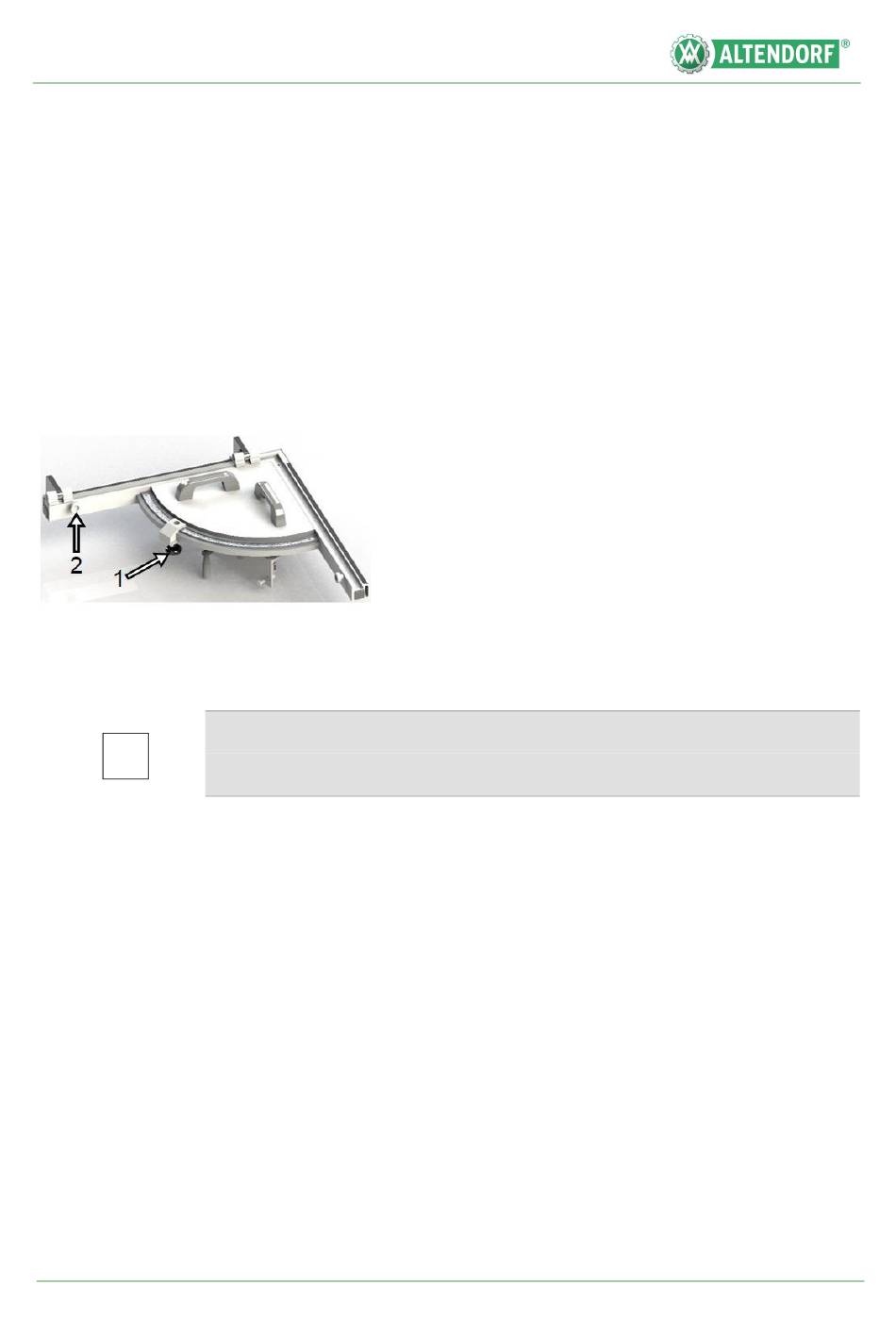

Adjusting the angle
• Release the clamping screw (1)
• Set the required angle
• Tighten the clamping screw (1)
Dimension setting
• Release the clamping screw (2)
• Set the stop bar to the required dimension
• Tighten the clamping screw (2)
