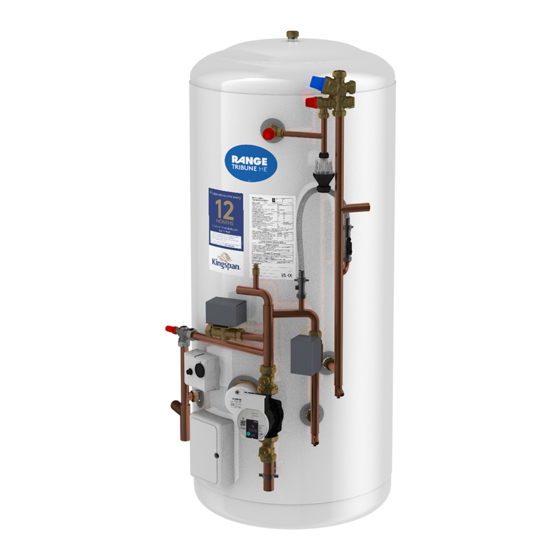

Tribune HE Unvented Hot Water Cylinders
Installation and Maintenance Instructions
IMPORTANT NOTE TO THE INSTALLER
Read these instructions before commencing installation. Unvented
F\OLQGHUV DUH D FRQWUROOHG VHUYLFH DV GH¿QHG LQ WKH ODWHVW HGLWLRQ RI WKH
EXLOGLQJ UHJXODWLRQV DQG VKRXOG RQO\ EH ¿WWHG E\ D FRPSHWHQW SHUVRQ
The relevant regulations are: England and Wales – Building Regulation G3, Scotland – Technical
Standard P3, N Ireland – Building Regulation Part F
After installation the Benchmark Log Book must be completed and left,
with these instructions, with the householder for future reference.
All manuals and user guides at all-guides.com
Issue 16 April 2012

Advertisement

Table of Contents
loading

Related Manuals for Kingspan Range Tribune HE

Summary of Contents for Kingspan Range Tribune HE

  • Page 1 R e n e w a b l e s All manuals and user guides at all-guides.com Tribune HE Unvented Hot Water Cylinders Installation and Maintenance Instructions Issue 16 April 2012 IMPORTANT NOTE TO THE INSTALLER Read these instructions before commencing installation. Unvented F\OLQGHUV DUH D FRQWUROOHG VHUYLFH DV GH¿QHG LQ WKH ODWHVW HGLWLRQ RI WKH EXLOGLQJ UHJXODWLRQV DQG VKRXOG RQO\ EH ¿WWHG E\ D FRPSHWHQW SHUVRQ The relevant regulations are: England and Wales –...

  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com CONTENTS PAGE CONTENT Introduction Storage, Handling & Supply Requirements Component Table Siting the unit General Installation Discharge Arrangement 7HFKQLFDO 6SHFL¿FDWLRQV 6OLPOLQH  'LUHFW ,QGLUHFW 7HFKQLFDO 6SHFL¿FDWLRQV 'LUHFW ,QGLUHFW 7HFKQLFDO 6SHFL¿FDWLRQV (FRF\O 'LUHFW ,QGLUHFW 7HFKQLFDO 6SHFL¿FDWLRQV 6RODU  'LUHFW ,QGLUHFW Solar Coil Installation...
  • Page 3 All manuals and user guides at all-guides.com STORAGE PRIOR TO INSTALLATION TRIBUNE HE should be stored in its original packaging in an upright position in an area free from excessive damp. HANDLING PRODUCT The TRIBUNE HE should be carried upright where possible. Assessements of risks for carrying the cylinder should be conducted.

  • Page 4: Component Table

    All manuals and user guides at all-guides.com COMPONENT CONTENT TABLE Slimline Direct Models (Electric) Slimline Indirect Models Direct Models Indirect Models Ecocyl Direct Models Ecocyl Indirect Models Solar Direct Models Solar Indiect Models Indirect pre-plumbed models - 1 zone heating Indirect pre-plumbed models - 2 zone heating Solar indirect pre-plumbed...

  • Page 5: Siting The Unit

    All manuals and user guides at all-guides.com SITING THE UNIT TRIBUNE HE can supply outlets above it or at some distance from it. Site the unit to minimise “dead leg” distances, especially to the point of most frequent use. Outlets above the TRIBUNE HE will reduce the outlet pressure available by 0.1 bar for every 1m of height difference. The unit should be protected from frost.

  • Page 6: General Installation

    All manuals and user guides at all-guides.com GENERAL INSTALLATION COLD MAINS PIPEWORK Run the cold main through the building to the place where the TRIBUNE HE is to be installed. Take care not to run the cold pipe near hot water or heating pipework so that the heat pick-up is minimized. ,GHQWLI\ WKH FROG ZDWHU VXSSO\ SLSH DQG ¿W DQ LVRODWLQJ YDOYH QRW VXSSOLHG  $ PP %6 VWRSFRFN can typically be used but a 22mm quarter turn full bore valve would be better as it does not restrict the ÀRZ DV PXFK 'R QRW XVH ³VFUHZGULYHU VORW´...

  • Page 7: Discharge Arrangement

    Note: D2 pipe from tundish is now allowed to be installed in soil stacks within premises. This activity is not recommended by Kingspan as discharge from T&P may continue for long periods of time. It is the installer’s responsibility to ensure the discharge pipework can support the discharge for prolonged periods.

  • Page 8: 7Hfkqlfdo 6Shfl¿Fdwlrqv

    All manuals and user guides at all-guides.com 7HFKQLFDO 6SHFL¿FDWLRQV Tribune HE Slimline Direct 22mm HOT DRAW - OFF F PTRV BOSS “ 22mm SECONDARY RETURN (not always fitted. See table) SECOND IMMERSION HEATER (not always fitted. See table) 50.0˚ 22mm COLD FEED WITH 15.0˚...
  • Page 9 All manuals and user guides at all-guides.com 7HFKQLFDO 6SHFL¿FDWLRQV Tribune HE Direct 22mm HOT DRAW - OFF 22mm SECONDARY RETURN (not always fitted. “ F PTRV BOSS See table) SECOND IMMERSION HEATER (not always fitted. See table) 22mm COLD FEED WITH 45.0 DIP PIPE TO DEFLECTOR IN BOTTOM OF CYLINDER...
  • Page 10 All manuals and user guides at all-guides.com 7HFKQLFDO 6SHFL¿FDWLRQV Tribune HE ECOCYL Direct 22mm HOT DRAW - OFF F PTRV BOSS “ 22mm SECONDARY RETURN (not always fitted. See table) SECOND IMMERSION HEATER (not always fitted. See table) 50.0˚ 22mm COLD FEED WITH 15.0˚...
  • Page 11 All manuals and user guides at all-guides.com 7HFKQLFDO 6SHFL¿FDWLRQV Tribune HE Solar Direct 22mm HOT DRAW-OFF “ F PTRV BOSS 22mm SECONDARY RETURN (not always fitted. See table) DRY STAT POCKET 22mm COLD FEED WITH DIP PIPE TO DEFLECTOR IN BOTTOM OF CYLINDER 25.0 15.0...
  • Page 12 All manuals and user guides at all-guides.com TRIBUNE HE SOLAR UNVENTED DIRECT SINGLE COIL CYLINDER Detail for the installation of a Solar Unvented Direct cylinder. General When installing this product it is essential the overall installation meets all current legislation including, in particular, the high limit isolation requirements of Building Regulation G3.

  • Page 13: Solar High Limit

    All manuals and user guides at all-guides.com TYPICAL SCHEMATIC WIRING DIAGRAMS. SOLAR HIGH LIMIT CONTROL These schematic wiring diagrams depict an IMIT high limit control stat and the connections are numbered accordingly. Where an alternative is supplied connect as per manufacturer’s instructions. /0./ 3040;...
  • Page 14 All manuals and user guides at all-guides.com TYPICAL SCHEMATIC WIRING DIAGRAMS The diagrams shown relate to the components listed. Other components and other manufacturers’ components may vary in their wiring requirements, particularly thermostats. Always refer to manufacturers’ instructions which may override the detail in order to function correctly.
  • Page 15 All manuals and user guides at all-guides.com TYPICAL SCHEMATIC WIRING DIAGRAMS WIRING DIAGRAM THREE PORT MID POSITION VALVE (Y-PLAN) + TWO PORT VALVE VARIANT DUAL THERMOSTAT WIRING...
  • Page 16 All manuals and user guides at all-guides.com TYPICAL SCHEMATIC WIRING DIAGRAMS. FOR PRE-PLUMBED CYLINDER - SINGLE ZONE HEATING...
  • Page 17 All manuals and user guides at all-guides.com TYPICAL SCHEMATIC WIRING DIAGRAMS. FOR PRE-PLUMBED CYLINDER - TWIN ZONE HEATING...

  • Page 18: Pre-Plumbed Installation

    All manuals and user guides at all-guides.com PRE-PLUMBED CYLINDER INSTALLATION COLD MAINS PIPEWORK Run the cold main through the building to the place where the TRIBUNE HE PRE-PLUMB unit is to be installed. Take care not to run WKH FROG SLSH QHDU KRW ZDWHU RU KHDWLQJ SLSHZRUN VR WKDW WKH KHDW SLFNXS LV PLQLPL]HG ,GHQWLI\ WKH FROG ZDWHU VXSSO\ SLSH DQG ¿W DQ isolating valve (not supplied).

  • Page 19: 7Hfkqlfdo 6Shfl¿Fdwlrq

    All manuals and user guides at all-guides.com 7HFKQLFDO 6SHFL¿FDWLRQV INDIRECT PRE-PLUMBED 50.0˚ 45.0˚ CODE TI120P4 TI150P4 1109 1070 1023 TI180P4 1297 1258 1211 TI210P4 1485 1446 1399 1136 1150 TI250P4 1735 1696 1649 1386 1400 TI300P4 2048 2009 1962 1699 1600 For Twin Zone codes please replace P4 with PT4 SOLAR INDIRECT PRE-PLUMBED...
  • Page 20 All manuals and user guides at all-guides.com COMMISSIONING FLUSHING & FILLING Check that the pressure in the expansion vessel is 3 bar (45PSI), i.e. the same as the setting of the pressure reducing valve. The valve is of the car tyre (Schrader) type. Check all the connections for tightness including any factory made connections VXFK DV WKH LPPHUVLRQ KHDWHU DQG WKH WHPSHUDWXUH DQG SUHVVXUH UHOLHI YDOYH %HIRUH ¿OOLQJ RSHQ WKH KRW WDS IXUWKHVW DZD\ IURP WKH 75,%81( +( WR OHW DLU RXW 2SHQ WKH FROG PDLQ LVRODWLRQ YDOYH DQG DOORZ WKH XQLW WR ¿OO :KHQ ZDWHU ÀRZV IURP WKH WDS DOORZ LW WR UXQ IRU D VKRUW ZKLOH WR ÀXVK WKURXJK DQ\ GLUW VZDUI RU ÀX[ UHVLGXH &ORVH WKH WDS DQG RSHQ HYHU\ RWKHU KRW WDS LQ WXUQ WR...
  • Page 21 All manuals and user guides at all-guides.com FAULT FINDING SPARE PARTS A full range of spare parts is available from Range Cylinders. Tel: 01924 376026. USER INSTRUCTIONS Your stainless system is automatic in normal use and requires only annual servicing. You should employ a competent installer to perform the annual servicing.
  • Page 22 *XDUDQWHH 7HUPV Kingspan Renewables guarantees the Tribune HE for all parts against faulty manufacture or materials for a period of two years IURP WKH GDWH RI SXUFKDVH 7KLV WZR \HDU JXDUDQWHH LV H[WHQGHG WR ¿YH \HDUV IRU WKH FROG ZDWHU LQOHW FRQWURO VHW DQG H[SDQVLRQ vessel.
  • Page 23 All manuals and user guides at all-guides.com TECHNICAL SPECIFICATIONS PRESSURE SPECIFICATIONS Maximum Inlet Water Pressure 12 Bar Operating Pressure 3.0 Bar Expansion Valve Opening Pressure 6.0 Bar Expansion Vessel Charge Pressure 3.0 Bar Maximum Operating Pressure 7.0 Bar Opening Pressure of T & P Valve 7.0 Bar Opening Temperature of T &...
  • Page 24 All manuals and user guides at all-guides.com CYLINDER DETAILS & PERFORMANCE SPECIFICATION TRIBUNE DIRECT SLIMLINE TDS60 0.99 TDS90 1.05 TDS120 1.12 TDS150 1.29 TDS180 1.37 TDS210 1.64 TRIBUNE INDIRECT SLIMLINE TIS60 10m 45s 8m 02s 0.67 3.69 17.2 0.99 TIS90 17m 22s 15m 12s 0.67...
  • Page 25 All manuals and user guides at all-guides.com CYLINDER DETAILS & PERFORMANCE SPECIFICATION TRIBUNE ECOCYL INDIRECT TIS60ECO 10m 45s 8m 02s 0.67 3.69 17.2 0.86 TIS90ECO 17m 22s 15m 12s 0.67 3.69 16.1 0.89 TIS120ECO 25m 01s 16m 25s 0.67 3.69 19.0 0.96 TIS150ECO...
  • Page 26 All manuals and user guides at all-guides.com MAINS PRESSURE HOT WATER STORAGE SYSTEM COMMISSIONING CHECKLIST This Commissioning Checklist is to be completed in full by the competent person who commissioned the storage system as a means of demonstrating compliance with the appropriate Building Regulations and then handed to the customer to keep for future reference. Failure to install and commission this equipment to the manufacturer’s instructions may invalidate the warranty but does not affect statutory rights.

  • Page 27: Service Record

    All manuals and user guides at all-guides.com SERVICE RECORD It is recommended that your hot water system is serviced regularly and that the appropriate Service Record is completed. Service Provider Before completing the appropriate Service Record below, please ensure you have carried out the service as described in the manufacturer’s instructions.
  • Page 28 SUPPLY OF QUALITY HOT WATER SYSTEMS 6SHFL¿FDWLRQ VXPPDU\ Materials Inner shell - Duplex Stainless Steel Range Cylinders, part of Kingspan Group, is a major Coil - 22mm Diameter Stainless Steel manufacturer of Domestic Hot Water storage systems in the UK Bosses - Stainless Steel and offers the trade products backed by the service and technical Every TRIBUNE HE cylinder is water tested to a pressure of 15 bar.
