Summary of Contents for Kingspan Tribune

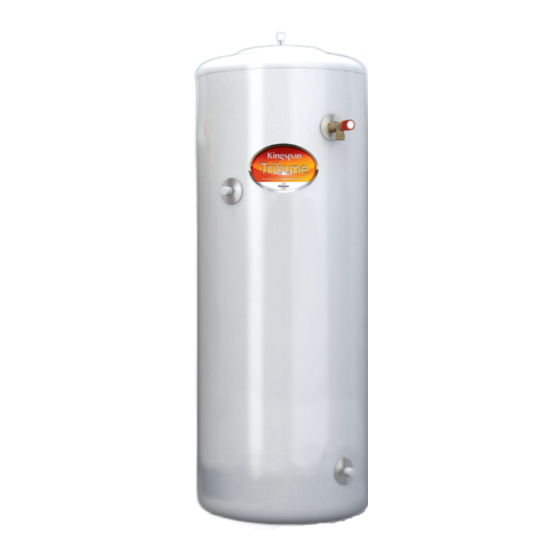

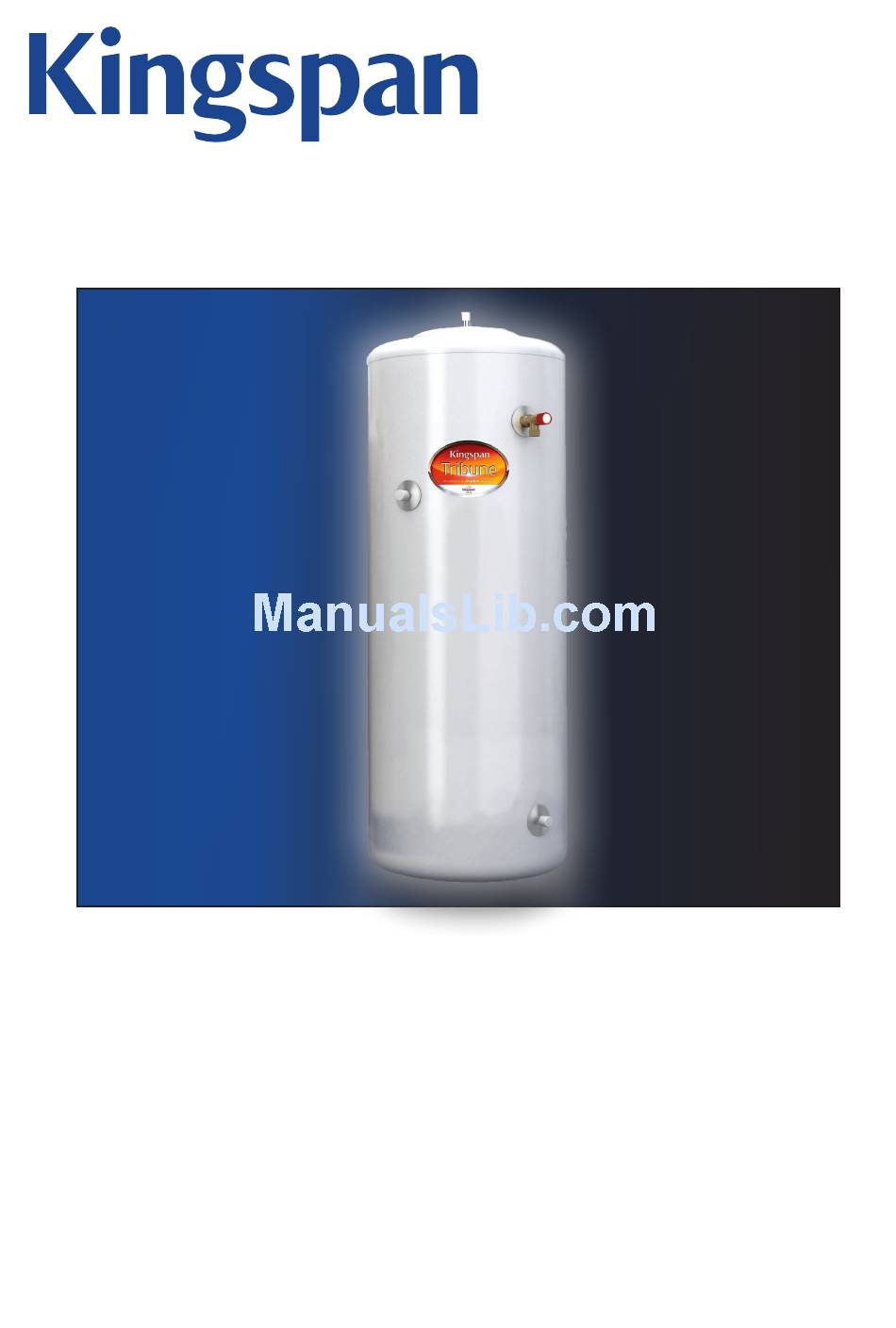

- Page 1 Tribune Installation Manual For Kingspan Tribune - USA IMPORTANT NOTE TO THE INSTALLER Read these instructions before commencing installation. Issue 4 Sept 2010 Page 1 of 12 Part No. BOOKSTAINULT...
-
Page 2: Important Safety Instructions
Table 1: States the relationship between water tempera- ture and scald risk WARNING: The KINGSPAN TRIBUNE has a Children, disabled and elderly are at fitting for a ½” NPT drain plug at the base of the highest risk of being scalded. -
Page 3: Installation
2”. The pan should be connected to drain by a ¾” bore drain. Consult a certified plumber for more information The KINGSPAN TRIBUNE should be located near to a drain to allow the drainage of water during maintenance and as an outlet for the safety equipment located on the unit. -
Page 4: Plumbing Connections
2.2 PLUMBING CONNECTIONS KINGSPAN TRIBUNE tanks can be supplied in a single or dual coil configuration. The coils are single wall coils, this allows a variety of heat sources to be used. In the single coil configuration this can be connected to a boiler or solar circuit. Twin coil tanks the lower coil is connected to a solar circuit and the top coil to a boiler system. - Page 5 Please refer to local code for cold mains pipe work installation. Run the cold main through the building to the place where the KINGSPAN TRIBUNE is to be installed. Take care not to run the cold pipe near hot water or heating pipe work so that the heat pick-up is minimized. Identify the cold water supply pipe and fit an isolating valve (not supplied).
-
Page 6: Coil Connections
WARNING The expansion tank is an important safety feature of the tank installation. It must be installed and properly sized. Refer to Table.2 for Kingspan supplied sizes. Volume Minimum expansion tank size 58/60Gal 5Gal 80Gal 7Gal 119Gal 10Gal Table.2 Expansion SIzing 2.2.2 CONNECTING TO THE TANK... -
Page 7: Immersion Heaters
Setting the temperature to 120˚F will reduce the risk of scalds. Please order the correct replacement via Kingspan Solar; fitting non- approved heating elements may affect your warranty. - Page 8 Before filling, open the hot faucet furthest away from the KINGSPAN TRIBUNE to let air out. Open the cold main isolation valve and allow the unit to fill. When water flows from the faucet allow it to run for a short while to flush through any dirt, swarf or flux residue.
- Page 9 3.4 INSTALLATION CHECKLIST FLOW CHART Figure 4. Check list of installation steps Page 9 of 12...
-
Page 10: Annual Maintenance
Solar. NEVER bypass any safety devices or operate the unit without them being fully operational. 4.1 DRAINING The KINGSPAN TRIBUNE is fitted with a ½” NPT drain fitting at the base of the tank. An appropriate draining faucet should be installed that can not be accidentally opened. -
Page 11: User Instructions
GUARANTEE EXCLUSIONS – THE GUARANTEE The TRIBUNE’S stainless steel vessel carries a 20-year guarantee against faulty materials or manufacture provided DOES NOT COVER: that: • The effects of scale build up. • It has been correctly installed as per this document and all • Any labour charges associated with replacing the the relevant standards, regulations and codes of practice unit or its parts.
