OWNER'S MANUAL

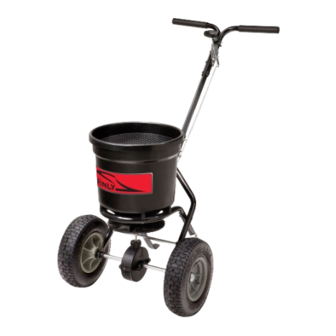

P U S H S P R E A D E R
MODEL:
P 2 0 - 5 0 0 B H
P 2 0 - 5 0 0 B H D F - A
• Assembly
• Installation
• Operation
• Repair Parts
Visit us on the web!
www.brinly.com
© 2022 Brinly-Hardy Company
Call Customer Service, Toll-Free: 877-728-8224
Important: This manual contains information for the safety
of persons and property. Read it carefully before
assembly and operation of the equipment!
English, Spanish &
French Manual
1008066-E
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Brinly P20-500BH
Summary of Contents for Brinly P20-500BH
- Page 1 • Repair Parts Call Customer Service, Toll-Free: 877-728-8224 Important: This manual contains information for the safety Visit us on the web! of persons and property. Read it carefully before www.brinly.com assembly and operation of the equipment! © 2022 Brinly-Hardy Company 1008066-E...
-
Page 2: Table Of Contents
INTRODUCTION AND SAFETY ================================================================================================== CONGRATULATIONS on your new Brinly-Hardy Spreader! This accessory has been designed, engineered and manufactured to give you the best possible dependability and performance. Should you experience any problem you cannot easily remedy, please do not hesitate to contact our knowledgeable customer service department toll-free at 1-877-728-8224. -
Page 3: Safety
- Keep all nuts, bolts and screws tight to be sure the equipment is in safe working condition. Installation Questions? Missing Parts? Replacement Parts? DON’T GO BACK TO STOP THE STORE! Please call our Customer Service Department, Toll Free: 877-728-8224 or customerservice@brinly.com English Manual 1008066-E... -
Page 4: Parts Breakdown
Bolt, M6 x 60 * Assembly includes Part Numbers: 16, 18, 27, 28, 29 Please call our Installation Questions? STOP Customer Service Department: Missing Parts? Replacement Parts? Toll Free: 877-728-8224 DON’T GO BACK TO THE STORE! or customerservice@brinly.com English Manual 1008066-E... - Page 5 PARTS BREAKDOWN ================================================================================================== Handle/Frame Exploded Hopper/Frame/Axle Exploded English Manual 1008066-E...
-
Page 6: Assembly
ASSEMBLY ================================================================================================== TOOLS REQUIRED: 2- 10mm Wrenches Step 1 1. Using a wrench and socket, remove two M6 locknuts and M6 x 45mm long bolts to remove pivot and bracket assembly from wheel frame tubes. NOTE: Set bolts and nuts to the side. - Page 7 ASSEMBLY ================================================================================================== Step 3 3. Insert the arm assembly Re-install pivot between frame tubes. and bracket assembly through wheel frame tubes and arm assembly with two M6 x 45mm bolts and M6 locknuts removed in Step 1. Step 4 4. Tighten nuts and bolts on both sides of spreader at locations shown.
- Page 8 ASSEMBLY ================================================================================================== Step 5 5. Push the flow control Hand tighten bottom handle downward to the nut on linkage rod fully closed position, and until snug. close the shut off plate Then, hand tighten under the hopper. the top nut on linkage rod until snug.
- Page 9 ASSEMBLY ================================================================================================== Step 7 IMPORTANT: AVOID DAMAGE! Only use a wrench on the LOWER nut. DO NOT use a wrench on the upper nut. 7. Once adjustment is complete, tighten lower nut on linkage rod with wrench. Step 8 8. Handle can be lowered by removing bolts and nuts and moving handle...
- Page 10 ASSEMBLY ================================================================================================== Continue for assembly instruction to attach the deflector. This deflector comes with the P20-500BHDF-A or is an optional accessory available for purchase in our part store (see additional info on page 17). Step 9 NOTE: Deflector Must Be Installed On The Left Side Of The Hopper. Gently tip and rotate the Align and attach the Align the deflector (54)
- Page 11 USE AND CARE ================================================================================================== MODELS: P 2 0 - 5 0 0 B H P 2 0 - 5 0 0 B H D F - A U S E A N D C A R E S E C T I O N OPERATING SPEED SPECIFICATIONS Practice walking with the spreader, opening and closing...
- Page 12 USE AND CARE ================================================================================================== SPREADING MATERIAL READ BEFORE USING: Become familiar with the operation of the spreader BEFORE you put material in the hopper. Determine setting required for the product you are spread- ing (See Application Rate Chart). If a setting is not found, use a similar size/weight material.
- Page 13 USE AND CARE ================================================================================================== HEADER STRIPS CALIBRATING SHUT OFF PLATE Spread header strips at each end of area. This allows See Steps 6 and 7 on pages 8 - 9. a turn-around area to align spreader for next pass. Then start on the edge of the area to be spread.
-
Page 14: Application Rate Chart
APPLICATION RATE CHART ================================================================================================== lbs / Flow lbs / Flow 1000 Control 1000 Control square Setting square Setting Media feet at 3MPH Media feet at 3MPH All American Lesco, continued 30-3-7 16.0 All Purpose Fertilizer 10-10-10. 16.0 28-5-12 16.0 Bayer 24-5-11 16.0 15.0... - Page 15 APPLICATION RATE CHART ================================================================================================== lbs / Flow lbs / Flow 1000 Control 1000 Control square Setting square Setting Media feet at 3MPH Media feet at 3MPH Ringer Ortho Lawn Restore 10-2-6 18.0 16.0 Sam's Choice 13.5 Lawn Insect Killer Granules 12.3 19.0 11.5...
- Page 16 APPLICATION RATE CHART ================================================================================================== lbs / Flow lbs / Flow 1000 Control 1000 Control square Setting square Setting Media feet at 3MPH Media feet at 3MPH Scotts Pro Turf Scotts Four Season Program 25.0 25.0 Step 1 - Crabgrass Preventer plus Fertilizer Fungicide VII 8-2-1 12.7...
- Page 17 The deflector kit easily flips up and out of the way when not in use. NOTE: Additional accesories are also available in our Parts Store online: shop.brinly.com English Manual 1008066-E...
-
Page 18: Warranty
MANUFACTURER’S LIMITED WARRANTY SPREADERS The limited warranty set forth below is given by Brinly-Hardy Company with respect to new merchandise purchased and used in the United States (its possessions and territories) and Canada. Brinly-Hardy Company warrants the products listed below against to use this product.
