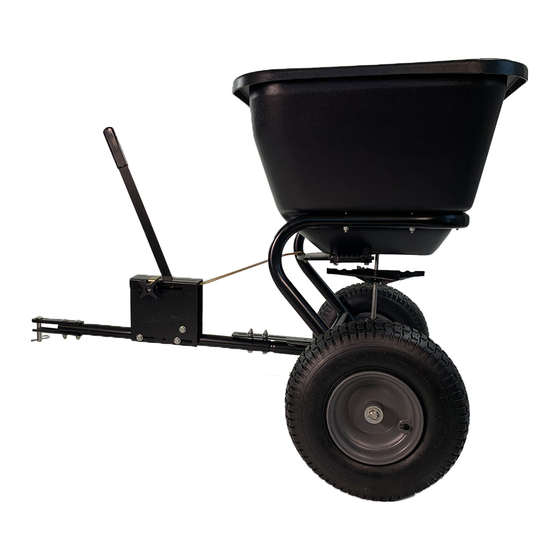

Brinly BS-26BH-A Owner's Manual
  1. Manuals
  2. Brands
  3. Brinly Manuals
  4. Spreader
  5. BS-26BH-A
  6. Owner's manual

Brinly BS-26BH-A Owner's Manual

Hide thumbs Also See for BS-26BH-A:
Table of Contents

Advertisement

Quick Links

Download this manual
OWNER'S MANUAL
B R O A D C A S T S P R E A D E R
MODELS:
B S - 2 6 B H
B S - 2 6 B H - A
B S - 3 6 B H
B S - 3 6 B H - A
• Assembly
• Installation
• Operation
• Repair Parts
BS-26BH
BS-26BH-A
Visit us on the web!
www.brinly.com
English Manual
BS-36BH
BS-36BH-A
Call Customer Service, Toll-Free: 877-728-8224
Important: This manual contains information for the safety
of persons and property. Read it carefully before
assembly and operation of the equipment!
1
For use with Riders
and Lawn / Garden Tractors.
1020135-A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BS-26BH-A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Brinly BS-26BH-A

Summary of Contents for Brinly BS-26BH-A

  • Page 1 • Assembly • Installation • Operation • Repair Parts BS-26BH BS-36BH BS-26BH-A BS-36BH-A For use with Riders and Lawn / Garden Tractors. Call Customer Service, Toll-Free: 877-728-8224 Important: This manual contains information for the safety Visit us on the web! of persons and property.

  • Page 2: Table Of Contents

    INTRODUCTION AND SAFETY CONGRATULATIONS on your new Brinly-Hardy Broadcast Spreader! This accessory has been designed, engineered and manufactured to give you the best possible dependability and performance. Should you experience any problem you cannot easily remedy, please do not hesitate to contact our knowledgeable customer service department toll-free at 1-877-728-8224.

  • Page 3: Safety

    SAFETY SAFETY RULES Read the general safety operating precautions in your towing vehicle operator's manual for additional safety information. - Know controls and how to stop quickly, READ THE VEHICLE OWNER'S MANUAL. - Do not allow children to operate the vehicle, do not allow adults to operate without proper instruction or without OPERATE SAFELY having read the owner's manual.

  • Page 4: Hardware Identifier

    HARDWARE IDENTIFIER DO NOT RETURN PRODUCT IF YOU ARE MISSING PARTS. Illustrations on this page Please Call: 1 (877) 728-8224 are to scale for faster identification of hardware during assembly. Nut: Nylon Lock Nut; Nylon Lock Nut: Hex Head Nut: Hex Lock 1/4”...
  • Page 5 HARDWARE IDENTIFIER DO NOT RETURN PRODUCT IF YOU ARE MISSING PARTS. Illustrations on this page Please Call: 1 (877) 728-8224 are to scale for faster identification of hardware during assembly. Bolt; Carriage, 1/4 x 1-3/4” (x6) ..... . . 2M0828SS Pin;...
  • Page 6 COMPONENT VIEW AND REFERENCE LIST 1020135-A English Manual...
  • Page 7 COMPONENT VIEW AND REFERENCE LIST BS-26BH BS-26BH-A BS-36BH BS-36BH-A Ref. # Part # Part # Part # Part # Description F-1029-10 F-1029-10 F-1029-10 F-1029-10 Hopper Support F-1030 F-1030 F-1031 F-1031 Hopper * The Hopper F-1013-01 F-1013-01 F-1013-01 F-1013-01 Axle; Plated...
  • Page 8 Missing Parts? Replacement Parts? DON’T GO STOP BACK TO THE STORE! Please call our Customer Service Department, Toll Free: 877-728-8224 Or Email: customerservice@brinly.com BS-26BH BS-26BH-A BS-36BH BS-36BH-A Ref # Part # Part # Part # Part # Description F-574 F-574...

  • Page 9: Assembly

    Assembly Tip Illustrations on pages 4 & 5 are to-scale. For faster identification of the hardware during assembly, simply lay the hardware on top of these illustrations. Additional info and videos are available on our website: brinly.com BS-26BH BS-36BH BS-26BH-A...
  • Page 10 ASSEMBLY Figure 2 ATTACH TOW TUBE Attach Tow Tube (28) to the Hopper Support (1). Secure using two 5/16” x 2-3/4” Hex Bolts (27) and two 5/16”-18 Hex Nuts (26). Bolt Hex, 5/16” x 2-1/4" Hex Nut, 5/16” Qty. 2 Qty.
  • Page 11 ASSEMBLY Back Figure 4 INSTALL TR ANSMISSION AND A XLE 4a. Maneuver the transmission assembly (21) shaft into the Axle only goes on one center hole of the Hopper Insert Hairpin Cotter (40) Assembly (2). Ensure that the slot of the transmission brace rests on top of the two tow tube hex nuts previously installed in Figure 2, as...
  • Page 12 ASSEMBLY Figure 5a INSTALL WHEELS Left Wheel Attach each Wheel (9) to the Axle (6) using hardware in the following order: Apply grease to axle and wheel • One Axle Bearing (7) bearings • One Flat Washer 5/8” (8) • One Spacer (42) •...
  • Page 13 ASSEMBLY Figure 5b Hairpin Cotter Qty. 1 5b. Secure Axle to the left wheel by inserting Hairpin Cotter (22) through the wheel hub and axle. NOTE: The axle may need to be turned in order to line up the hole in the axle with the hole through the wheel hub.
  • Page 14 ASSEMBLY Figure 7 INSTALL AGITATOR 7a. Place O-Ring (20) over transmission shaft. Slide down to hopper bottom to create seal. O-Ring 3/8” Qty. 1 Agitator Spring Qty. 1 7b. Slide Agitator Spring (19) over the transmission shaft. 7c. Insert cotter pin (18) through spring and the hole at the top of the transmission shaft.
  • Page 15 ASSEMBLY Figure 8 Hitch Pin 1/2” x 2-1/2” INSTALL CLEVIS Qty. 1 8a. Attach the upper and lower Clevis (17) halves to the Tow Tube (28). Hairpin Cotter 1/8” Secure with two 5/16” x 2” Qty. 1 Carriage Bolts (14) and two 5/16” Nylon Hex Nuts (15), as shown.
  • Page 16 ASSEMBLY Figure 9a ASSEMBLE GAUGE PLATE 9a. Insert Stop Handle (31) through the slot opening at the top of the Gauge Plate (11). 9b. Insert the ‘S’ shaped end of Link Rod (12) through the upper hole of the Flow Control Handle (31). 9c.
  • Page 17 ASSEMBLY Figure 9b Slide Flat Grip (37) on end of the Flow control Handle (31). Figure 10a ATTACH GAUGE PLATE TO SPREADER 10a. Rotate assembled Gauge Plate (11) approximately 90° clockwise and insert formed end of the Link Rod (12) in the hole provide on the Hopper (10) control plate, as shown.
  • Page 18 ASSEMBLY Figure 10b ATTACH GAUGE PLATE TO SPREADER 10c. Attach Gauge Plate to the Tow Tube (28) as shown, using hardware provided: Do not tighten the hex nuts until after calibrating the Gauge Plate. • Two 5/16”x2-3/4” Hex Bolt (36) •...
  • Page 19 ASSEMBLY Figure 11 CALIBR ATE GAUGE PLATE 11a. Loosen the knob (29) and move to the #10, OPEN position, retighten. 11b. Move Flow Control Handle (31) to the #10, OPEN position. 11c. Ensure that hopper control gate (48) opens fully, if not slide the Gauge Plate (11) forward or backward until control gate is fully open.
  • Page 20 NOTES NOTES 1020135-A English Manual...

  • Page 21: Use And Care

    DIMENSIONS The recommended operating speed is slightly faster than that of a brisk walk, approximately 3 MPH (equal to the vehicle traveling 40 ft. in 9 seconds). BS-26BH & BS-26BH-A BS-26BH & BS-26BH-A Size (maximum tow 56.7 kg weight) .

  • Page 22: Operation

    OPERATION Directional Control Directional Control NORMAL OPERATION ONE SIDE ONLY SPREADING Fertilizers, Insecticides, & Grass Seed each have different The directional control plate can be used for adjusting the particle size and weight. This can be referred to as particle material spread pattern when spreading near sidewalks, density.

  • Page 23: Annual Maintenance

    ANNUAL MAINTENANCE Figure 12. Figure 12 Figure 12. Remove Wheels Remove Wheels Clean Parts 1. Remove Wheels Clean Parts Lubricate bearings and axle lightly. 2. Clean Parts Lubricate bearings and axle lightly. 3. Lubricate bearings and axle lightly. 4. Remove cotter from Remove cotter from transmission transmission housing housing...
  • Page 24 ANNUAL MAINTENANCE Figure 13 6. Remove Gauge Plate. 1020135-A English Manual...
  • Page 25 ANNUAL MAINTENANCE Figure 14 7. Remove transmission bracket. 8. Remove Transmission. 9. Clean Fan. English Manual 1020135-A...
  • Page 26 ANNUAL MAINTENANCE ANNUAL MAINTENANCE Figure 15. 10. Remove the 4 bolts that hold the Gate and Directional Control Plate. Figure 15 Separate parts, as shown. 12. Clean parts thoroughly with soap and water. 10. Remove the 4 bolts that hold the Gate and Directional Control Plate.

  • Page 27: Flow Settings

    MEDIA FLOW SETTINGS MEDIA FLOW SETTINGS FLOW SETTINGS Some products may not be available in all areas. Some products may not be FLOW SETTINGS Flow control settings are based on 3 mph forward speed. The Table 1 is a list of flow control settings for specific products avail- available in all areas.
  • Page 28 MEDIA FLOW SETTINGS MEDIA FLOW SETTINGS Table 1: Flow Control Settings for Specific Fertilizer's, Insecticides, Grass Seeds (Cont’d) lbs/1000 Flow Control Media sq. ft. Setting Lesco Pre-M.86% Plus Fertilizer 25-0-7 Lesco Starter Fertilizer 18-24-12 Lesco Turf Fertilizer 24-2-11 Lesco Weed and Feed Master Turf Ultimate Tall Fescue Blend Master Turf Ultimate Tall Fescue Blend Milogranite 6-2-0...
  • Page 29 MEDIA FLOW SETTINGS MEDIA FLOW SETTINGS Table 1: Flow Control Settings for Specific Fertilizer's, Insecticides, Grass Seeds (Cont’d) lbs/1000 Flow Control Media sq. ft. Setting Scotts Grubex Season Long Grub Control Scotts Grubex Season Long Grub Control Scotts Lawn Fungus Control Scotts Lawn Fungus Control Scotts Pure Premium Kentucky Bluegrass Mix Scotts Pure Premium Kentucky Bluegrass Mix...

  • Page 30: Troubleshooting

    TROUBLESHOOTING Table 2: Troubleshooting - Spreading Difficulties & Remedies PROBLEM CAUSE / CONDITION REMEDY Gate / Handle Handle mounting bolt (36) Tighten bolt (36). Movement During not tight enough. (Refer to figure 9, on pg 16). Operation Hopper-gate assembly Tighten bolts (45). bolts (45) not tight enough.

  • Page 31: Service

    • Rinse/dry inside and outside of spreader after each use. Move Flow Control as you rinse to avoid build up of In North America and Canada call material. Toll-Free: 877-728-8224 Chat online: www.brinly.com Email: customerservice@brinly.com Optional Accessory Hopper Cover Part Number 1009191...
  • Page 32 Hardy Co. During the period of the warranty, the exclusive remedy is repair or replacement of the product as set forth above. Brinly-Hardy Company • 3230 Industrial Parkway • Jeffersonville, IN 47130 • (877) 728-8224 • brinly.com 1020135-A English Manual...
