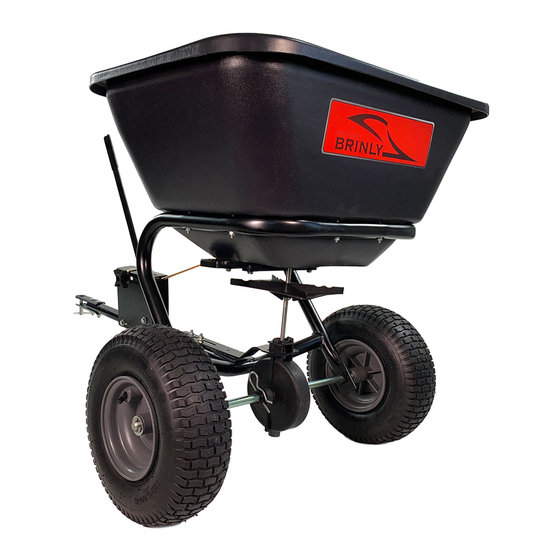

OWNER'S MANUAL
B R O A D C A S T S P R E A D E R
MODELS:
B S - 2 6 B H
B S - 3 6 B H
• Assembly
• Installation
• Operation
• Repair Parts
BS-26BH
Visit us on the web!
www.brinly.com
English Manual
BS-36BH
Call Customer Service, Toll-Free: 877-728-8224
Important: This manual contains information for the safety
of persons and property. Read it carefully before
assembly and operation of the equipment!
1
For use with Riders
and Lawn / Garden Tractors.
L-1884-F

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BS-26BH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Brinly BS-26BH

Summary of Contents for Brinly BS-26BH

  • Page 1 B S - 3 6 B H • Assembly • Installation • Operation • Repair Parts BS-26BH BS-36BH For use with Riders and Lawn / Garden Tractors. Call Customer Service, Toll-Free: 877-728-8224 Important: This manual contains information for the safety Visit us on the web! of persons and property.

  • Page 2: Table Of Contents

    INTRODUCTION AND SAFETY CONGRATULATIONS on your new Brinly-Hardy Broadcast Spreader! This accessory has been designed, engineered and manufactured to give you the best possible dependability and performance. Should you experience any problem you cannot easily remedy, please do not hesitate to contact our knowledgeable customer service department toll-free at 1-877-728-8224.

  • Page 3: Safety

    SAFETY SAFETY RULES Read the general safety operating precautions in your towing vehicle operator's manual for additional safety information. - Know controls and how to stop quickly, READ THE VEHICLE OWNER'S MANUAL. - Do not allow children to operate the vehicle, do not allow adults to operate without proper instruction or without OPERATE SAFELY having read the owner's manual.
  • Page 4 HARDWARE IDENTIFIER DO NOT RETURN PRODUCT IF YOU ARE MISSING PARTS. Illustrations on this page Please Call: 1 (877) 728-8224 are to scale for faster identification of hardware during assembly. Nut: Nylon Lock Nut; Nylon Lock Nut: Hex Head O-Ring; Pin;...
  • Page 5 HARDWARE IDENTIFIER DO NOT RETURN PRODUCT IF YOU ARE MISSING PARTS. Illustrations on this page Please Call: 1 (877) 728-8224 are to scale for faster identification of hardware during assembly. Bolt; Carriage, 1/4 x 1-3/4” (x6) ..... . . 2M0828SS Pin;...

  • Page 6: Component View And Reference List

    COMPONENT VIEW AND REFERENCE LIST English Manual L-1884-F...
  • Page 7 COMPONENT VIEW AND REFERENCE LIST BS-26BH BS-36BH Ref # Part # Part # Description F-1029-10 F-1029-10 Hopper Support F-1030 F-1031 Hopper * Reference the Hopper F-575 F-575 Washer; Thrust, 1/4” Assembly 2M0828SS 2M0828SS Bolt, Hex Stainless, 1/4” x 1-3/4” Part List.
  • Page 8 Periodically check bolts for tightness. Installation Questions? Missing Parts? Replacement Parts? BS-26BH BS-36BH Ref # Part # Part # Description F-574 F-574 Bearing; Shaft DON’T...

  • Page 9: Assembly

    Illustrations on pages 4 & 5 are to-scale. For faster identification of the hardware during assembly, simply lay the hardware on top of these illustrations. Additional info and videos are available on our website: brinly.com BS-26BH BS-36BH These QR codes...
  • Page 10 ASSEMBLY Figure 2 ATTACH TOW TUBE Attach Tow Tube (28) to the Hopper Support (1). Secure using two 5/16” x 2-3/4” Hex Bolts (27) and two 5/16”-18 Hex Nuts (26). Bolt Hex, 5/16” x 2-1/4" Hex Nut, 5/16” Qty. 2 Qty.
  • Page 11 ASSEMBLY Back Figure 4 INSTALL TRANSMISSION AND AXLE 4a. Maneuver the transmission assembly (21) shaft into the Axle only goes on one center hole of the Hopper Insert Hairpin Cotter (40) Assembly (2). Ensure that the slot of the transmission brace rests on top of the two tow tube hex nuts previously Install Axle...
  • Page 12 ASSEMBLY Figure 5a INSTALL WHEELS Left Wheel Attach each Wheel (9) to the Axle (6) using hardware in the following order: Apply grease to axle and wheel • One Axle Bearing (7) bearings • One Flat Washer 5/8” (8) • One Spacer (42) •...
  • Page 13 ASSEMBLY Figure 5b Hairpin Cotter Qty. 1 5b. Secure Axle to the left wheel by inserting Hairpin Cotter (22) through the wheel hub and axle. NOTE: The axle may need to be turned in order to line up the hole in the axle with the hole through the wheel hub.
  • Page 14 ASSEMBLY Figure 7 INSTALL AGITATOR 7a. Place O-Ring (20) over transmission shaft. Slide down to hopper bottom to create seal. O-Ring 3/8” Qty. 1 Agitator Spring Qty. 1 7b. Slide Agitator Spring (19) over the transmission shaft. 7c. Insert cotter pin (18) through spring and the hole at the top of the transmission shaft.
  • Page 15 ASSEMBLY Figure 8 Hitch Pin 1/2” x 2-1/2” INSTALL CLEVIS Qty. 1 8a. Attach the upper and lower Clevis (17) halves to the Tow Tube (28). Hairpin Cotter 1/8” Secure with two 5/16” x 2” Qty. 1 Carriage Bolts (14) and two 5/16” Nylon Hex Nuts (15), as shown.
  • Page 16 ASSEMBLY Figure 9a ASSEMBLE GAUGE PLATE 9a. Insert Stop Handle (31) through the slot opening at the top of the Gauge Plate (11). 9b. Insert the ‘S’ shaped end of Link Rod (12) through the upper hole of the Flow Control Handle (31). 9c.
  • Page 17 ASSEMBLY Figure 9b Slide Flat Grip (37) on end of the Flow control Handle (31). Figure 10a ATTACH GAUGE PLATE TO SPREADER 10a. Rotate assembled Gauge Plate (11) approximately 90° clockwise and insert formed end of the Link Rod (12) in the hole provide on the Hopper (10) control plate, as shown.
  • Page 18 ASSEMBLY Figure 10b ATTACH GAUGE PLATE TO SPREADER 10c. Attach Gauge Plate to the Tow Tube (28) as shown, using hardware provided: Do not tighten the hex nuts until after calibrating the Gauge Plate. • Two 5/16”x2-3/4” Hex Bolt (36) •...
  • Page 19 ASSEMBLY Figure 11 CALIBRATE GAUGE PLATE 11a. Loosen the knob (29) and move to the #10, OPEN position, retighten. 11b. Move Flow Control Handle (31) to the #10, OPEN position. 11c. Ensure that hopper control gate (48) opens fully, if not slide the Gauge Plate (11) forward or backward until control gate is fully open.

  • Page 20: Operation

    OPERATION Directional Control Directional Control NORMAL OPERATION ONE SIDE ONLY SPREADING Fertilizers, Insecticides, & Grass Seed each have The directional control plate can be used for adjusting the different particle size and weight. This can be referred material spread pattern when spreading near sidewalks, to as particle density.

  • Page 21: Maintenance

    OPERATION OPERATING SPEED OPERATING FLOW CONTROL GATE SPEED LIMIT The fan speed and the spread The Gauge Plate Assembly operates the width are controlled by the speed Flow Control Gate. of the vehicle. The Gauge Plate is marked from 0 (closed) to 10 (fully The recommended operating speed is slightly faster than open).
  • Page 22 ANNUAL MAINTENANCE ANNUAL MAINTENANCE ANNUAL MAINTENANCE Figure 12. Figure 12. Figure 12 Remove Wheels Remove Wheels Clean Parts 1. Remove Wheels Clean Parts Lubricate bearings and axle lightly. Lubricate bearings and axle lightly. 2. Clean Parts 3. Lubricate bearings and axle lightly.
  • Page 23 ANNUAL MAINTENANCE ANNUAL MAINTENANCE Figure 13 Figure 13. 6. Remove Gauge Plate. Remove Gage Plate. English Manual L-1884-F...
  • Page 24 ANNUAL MAINTENANCE ANNUAL MAINTENANCE Figure 14. Figure 14 Remove transmission bracket. Remove Transmission. 7. Remove transmission bracket. Clean Fan 8. Remove Transmission. 9. Clean Fan. L-1884-F English Manual L-1884-E...
  • Page 25 ANNUAL MAINTENANCE ANNUAL MAINTENANCE Figure 15. 10. Remove the 4 bolts that hold the Gate and Directional Control Plate. Figure 15 Separate parts, as shown. 12. Clean parts thoroughly with soap and water. 10. Remove the 4 bolts that hold the Gate and Directional Control Plate.

  • Page 26: Media Flow Settings

    MEDIA FLOW SETTINGS MEDIA FLOW SETTINGS FLOW SETTINGS Some products may not be available in all areas. Some products may not be FLOW SETTINGS Flow control settings are based on 3 mph forward speed. The Table 1 is a list of flow control settings for specific products avail- available in all areas.
  • Page 27 MEDIA FLOW SETTINGS MEDIA FLOW SETTINGS Table 1: Flow Control Settings for Specific Fertilizer's, Insecticides, Grass Seeds (Cont’d) lbs/1000 Flow Control Media sq. ft. Setting Lesco Pre-M.86% Plus Fertilizer 25-0-7 Lesco Starter Fertilizer 18-24-12 Lesco Turf Fertilizer 24-2-11 Lesco Weed and Feed Master Turf Ultimate Tall Fescue Blend Master Turf Ultimate Tall Fescue Blend Milogranite 6-2-0...
  • Page 28 MEDIA FLOW SETTINGS MEDIA FLOW SETTINGS Table 1: Flow Control Settings for Specific Fertilizer's, Insecticides, Grass Seeds (Cont’d) lbs/1000 Flow Control Media sq. ft. Setting Scotts Grubex Season Long Grub Control Scotts Grubex Season Long Grub Control Scotts Lawn Fungus Control Scotts Lawn Fungus Control Scotts Pure Premium Kentucky Bluegrass Mix Scotts Pure Premium Kentucky Bluegrass Mix...

  • Page 29: Troubleshooting

    TROUBLESHOOTING TROUBLESHOOTING Table 2: Troubleshooting - Spreading Difficulties & Remedies Table 2: Troubleshooting - Spreading Difficulties & Remedies PROBLEM CAUSE/CONDTION REMEDY Too much/not enough Gage Plate not calibrated Insure Gage Plate is properly calibrated, (Refer to Figure 11). material dispensed. Flow Control Handle Gate(47) and directional con- Remove and clean the Gate and Directional Control Plate with...

  • Page 30: Specifications / Service

    Size (maximum tow weight) ..79 kg (175lbs) Toll-Free: 877-728-8224 Capacity ....0.10 cu m (3.5 cu ft) Chat online: www.brinly.com TIRES Email: customerservice@brinly.com Size .
  • Page 31 NOTES NOTES English Manual L-1884-F...

  • Page 32: Warranty

    Hardy Co. During the period of the warranty, the exclusive remedy is repair or replacement of the product as set forth above. Brinly-Hardy Company • 3230 Industrial Parkway • Jeffersonville, IN 47130 • (877) 728-8224 • brinly.com English Manual L-1884-F...
